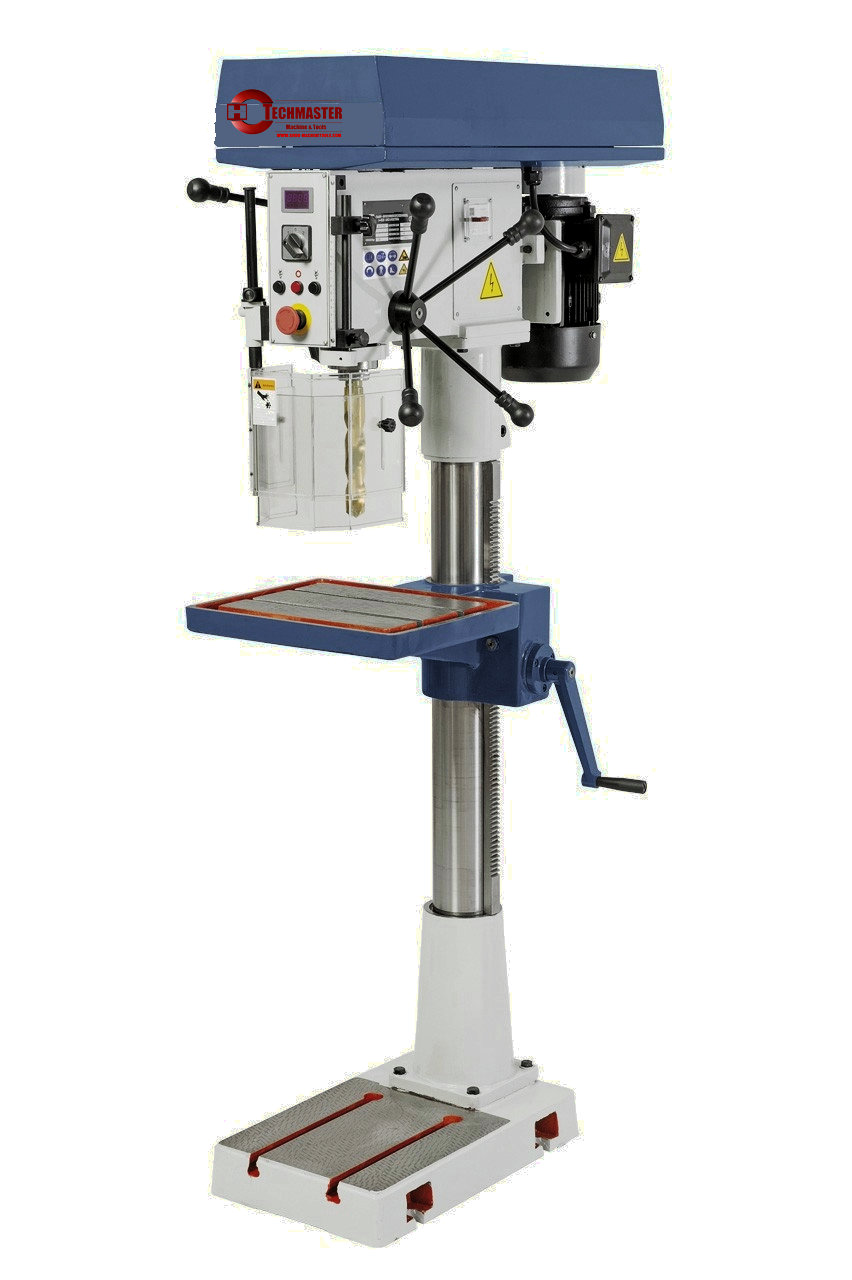

STEPLESS DRILLING MACHINE SB320SH
Quantity: Profi vario drilling machine is serially equipped with a powerful 2-step motor. The solid variator-drive guarantees ideal power transmission to spindle.
·
Technische Spezifikationen
Drilling capacity max. 32 mm Drill chuck 1 - 13 mm / B 16 Morse taper MT 3 Spindle speed, stepless 105 - 1725 rpm Distance spindle to column 230 mm Distance spindle to table max. 690 mm Distance spindle to base 1180 mm Spindle stroke 120 mm Column diameter 100 mm Table size 400 x 320 mm T-slot size 14 mm Working surface of base 320 x 340 mm Motor power output S1 100% 0,55 / 0,85 kW Motor power input S6 40% 0,80 / 1,2 kW Machine dimensions (W x D x H) 470 x 810 x 1710 mm Weight approx. 245 kg Features
Solid, grey cast iron construction with modern design
Stepless speed adjustment - speed setting can be read on digital readout
Height adjustment to table via gear rack and crank handle
·
·
Right and left spindle rotation for thread cutting
Powerful 2-step motor, ranging from 105 – 1725 rpm
Base with T-slots for mounting of large workpieces
Safety switch with undervoltage release
Spindle runs on high-quality ball bearings
Standard accessories:
Drill chuck 1 - 13 mm / B 16
Drill chuck arbor MT 3 / B 16
Morse taper drill sleeve MT 3 / 2
Digital readout of speeds
LED working light
Height adjustable protective cover
