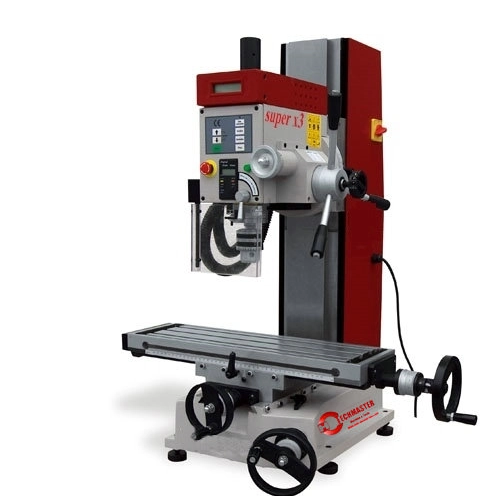

SUPER X3
Quantity: MK 3 tool holder
Stepless drilling spindle speed adjustment
Head tilts right and left (for cutting threads)
with large T-slot table top, 550 x 160 mm
Digital display of the spindle speed
Digital display of the spindle axis travel (quill stroke)
Brushless DC motor
high-precision fine-pitch gears for horizontal milling operations
suitable for end milling up to 50 mm Ø
Illumination for drilling and milling operations
Technical Data
Electric motor drive 1,0 kW P1 Voltage 230 V Drilling capacity on solid material 25 mm Tapping capacity up to max. 12 mm Tool holder MK 3 Outreach 230 mm Spindle stroke 80 mm Spindle height above worktable max. 350 mm Stepless spindle speed (+/- 10%) 100-1750 RPM Drilling head incline angle max. -30° - +50° Milling table size 550 x 160 mm T-groove size 12 mm Travel of worktable along the x-axis max. 300 mm Travel of worktable along the y-axis max. 160 mm Dimensions (W x H x L) 560 x 830 x 685 mm Weight approx. 158 kg MK 3 tool holder
Stepless drilling spindle speed adjustment
Head tilts right and left (for cutting threads)
with large T-slot table top, 550 x 160 mm
Digital display of the spindle speed
Digital display of the spindle axis travel (quill stroke)
Brushless DC motor
high-precision fine-pitch gears for horizontal milling operations
suitable for end milling up to 50 mm Ø
Illumination for drilling and milling operations
Technical Data
Electric motor drive 1,0 kW P1 Voltage 230 V Drilling capacity on solid material 25 mm Tapping capacity up to max. 12 mm Tool holder MK 3 Outreach 230 mm Spindle stroke 80 mm Spindle height above worktable max. 350 mm Stepless spindle speed (+/- 10%) 100-1750 RPM Drilling head incline angle max. -30° - +50° Milling table size 550 x 160 mm T-groove size 12 mm Travel of worktable along the x-axis max. 300 mm Travel of worktable along the y-axis max. 160 mm Dimensions (W x H x L) 560 x 830 x 685 mm Weight approx. 158 kg
