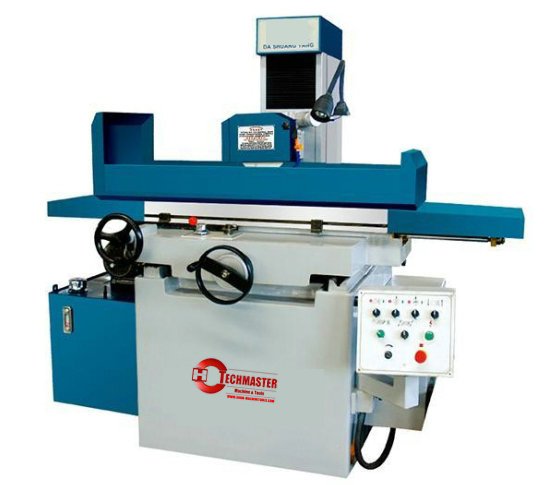

SURFACE GRINDER M3060A
Quantity: -
M3060A
FEATURE:
● Widely useful, grind various surfaces
● Spindle and leadscrew is imported
● Mutiple labyrinth seal is used on spindle quill
● Rolling ball guideway is used on longitudinal direction
● Double V type guideways
● Vertical handwheel is fixed on bed
● Manual oil pump lubricates all moveable partsMAIN PARAMENTERS
Surface Grinding Machine M3060A
Time：2012-11-30 13:27:23Hits：809Font-size：T|T1.Compact structure,and easy operate 2.Wheel of vertical mechanism used rapid movement 3.Vertical adjustment,accirate control of the amount of feed 4.Worltable longitudinal movement is supported by hydraulic system.It's longht and flesible. 5.WorktablRelated presentations MAIN PARAMENTERS
Description
M3060A Size of worktable(L×W×H) mm 600×300×300 Longitudinal table travel mm 620 Cross table travel mm 325 Max.Distance from the spindle centre to the worktable surface mm 400 Safety load of bench(in max) kg 150 Table size mm 600×300 T-slot mm×n 14×1 Bench speed m/min 323 Cross auto feed mm 0.02/ 3/ Cross rapid feed mm 0.6-10 Cross handwheel mm/min
Grinding Wheel size(D×W×d) mm 200×16×32 Spindle speed r/min 2850 Max.Movement of the vertical mechanism mm 400 Vertical fime adjustment revolution mm 0.15 Vertical per fine adjustment graduation mm 0.002 Spindle motor Kw 1.5 Overall dimensions:(L×W×H) mm 1870×1200×1840 Packing size(L×W×H) mm 1950×1300×1950 G/N weight kg 2000/1700
FEATURE:
● Widely useful, grind various surfaces
● Spindle and leadscrew is imported
● Mutiple labyrinth seal is used on spindle quill
● Rolling ball guideway is used on longitudinal direction
● Double V type guideways
● Vertical handwheel is fixed on bed
● Manual oil pump lubricates all moveable partsMAIN PARAMENTERS
Surface Grinding Machine M3060A
Time：2012-11-30 13:27:23Hits：809Font-size：T|T1.Compact structure,and easy operate 2.Wheel of vertical mechanism used rapid movement 3.Vertical adjustment,accirate control of the amount of feed 4.Worltable longitudinal movement is supported by hydraulic system.It's longht and flesible. 5.WorktablRelated presentations MAIN PARAMENTERS
Description
M3060A Size of worktable(L×W×H) mm 600×300×300 Longitudinal table travel mm 620 Cross table travel mm 325 Max.Distance from the spindle centre to the worktable surface mm 400 Safety load of bench(in max) kg 150 Table size mm 600×300 T-slot mm×n 14×1 Bench speed m/min 323 Cross auto feed mm 0.02/ 3/ Cross rapid feed mm 0.6-10 Cross handwheel mm/min
Grinding Wheel size(D×W×d) mm 200×16×32 Spindle speed r/min 2850 Max.Movement of the vertical mechanism mm 400 Vertical fime adjustment revolution mm 0.15 Vertical per fine adjustment graduation mm 0.002 Spindle motor Kw 1.5 Overall dimensions:(L×W×H) mm 1870×1200×1840 Packing size(L×W×H) mm 1950×1300×1950 G/N weight kg 2000/1700
