SURFACE GRINDER M7140A
You are here: Home » Products » TOOL GRINDER » SURFACE GRINDER » SURFACE GRINDER M7140A
Share to:

SURFACE GRINDER M7140A

Quantity:
  • M7140A

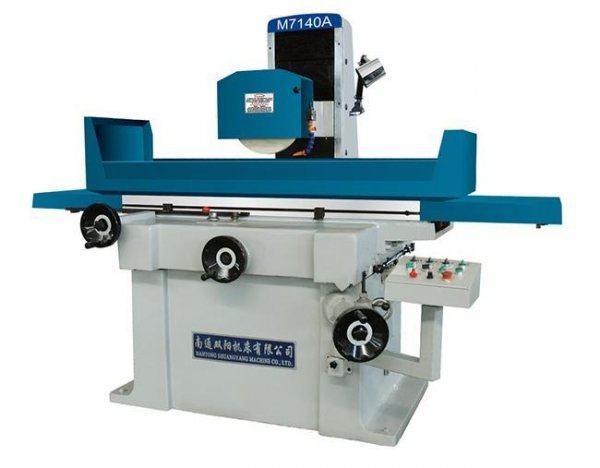

Surface Grinding Machine M7140A

Time:2012-11-28 17:37:15Hits:791Font-size:T|T
1.Compact structure,and easy operate 2.Worktable longitudinal movement is supported by hydraulic system.It's light and flexible. 3.Worktable cross movement can work automaticly or manually 4.We have a special structure on the grinding head which can ma
Related presentations

MAIN PARAMENTERS

Description
M7140A-1 M7140A-2 M7140A-3
Size of worktable(L×W×H) mm 800×400×405 1000×400×405 1250×400×405
Longitudinal table travel mm 820 1020 1270
Cross table travel mm 440 440 440
Max.Distance from the spindle centre to the worktable surface mm 580 580 555
Safety load of bench(in max) kg 400 400 450
Table size mm 800×400 1000×400 1250×400
T-slot mm×n 18×3 18×3 18×3
Bench speed m/min 0-26 0-26 0-26
Cross auto feed mm 0.5-20 0.5-20 0.5-20
Cross hadwheel mm 0.02/ 4/ 0.02/ 4/ 0.02/ 4/
Grinding Wheel size(D×W×d) mm 350×32×127 350×32×127 350×32×127
Spindle speed r/min 1450 1450 1450
Vertical fime adjustment revolution mm 0.04 0.04 0.04
Vertical per fine adjustment graduation mm 0.001 0.001 0.001
Spindle motor Kw 5.5(Y132S-4 B5) 5.5(Y132S-4 B5) 5.5(Y132S-4 B5)
Overall dimensions:(L×W×H) mm 2260×1790×1917 2660×1790×1917 3100×1790×1917
Packing size(L×W×H) mm 2400×1990×2180 2800×1990×2180 3300×1990×2180
G/N weight kg 3300/3000 4200/3800 4600/4200
