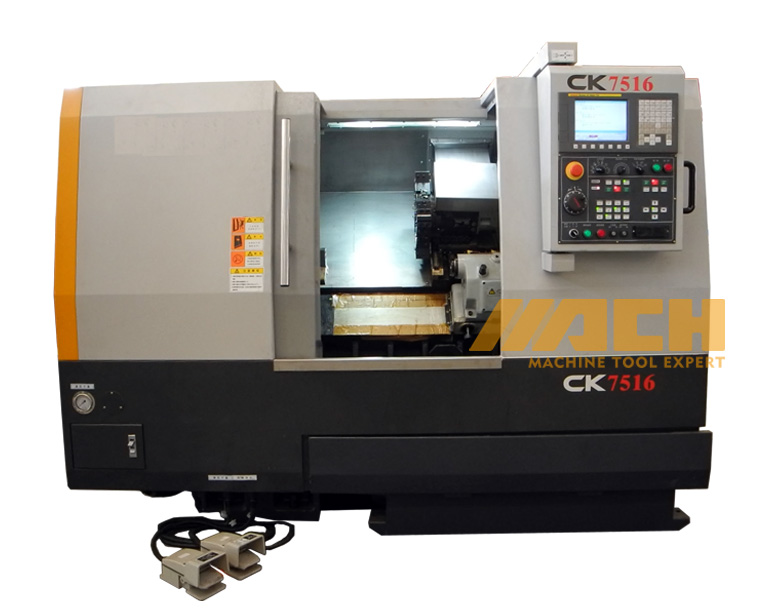

Slant Bed CNC Lathe Machine Model:CK7516
Quantity: -
Slant Bed CNC Lathe Machine Model:CK7516
MAIN FEATURES
1. Its strength, dynamic and static rigidity, mechanics of main parts, guard and coolant system are all advanced in design.
2. Designed with high vibration strength, adopts high grade cast iron, one piece of bed base, slant guideways, a high precision through-hole spindle driven by large-field AC main motor.
3. Key parts like bearings of main spindle and of feeding screw are all famous foreign products.
4. The multi-station turret indexes fast and continuously with a high repeatability and changes tool proximately.
5. The lathe can be equipped with FANUC 0i-TD, FANUC 0i Mate-TD, Siemens 810D, 802D, DASEN 3i and etc on request. or other top brand control systems from both China and foreign countries (hydraulic parts, lubrication units and chucks that are good-quality from both domestic and foreign markets).
6. The lathe is designed with unique appearance, easy-operated panel, full-enclosed guard, which can prevent the leakage of water, power and oil effectively. It is the most powerful product in its class due to the large power, excellent accuracy and high performance.
ITEMS UNIT CK7516 CK7516A CK7516C Capacity Max.swing diameter over bed mm φ400 φ400 φ400 Max.swing dia. over slide mm φ260 φ260 φ180 Max.turning diameter mm φ285 φ285 φ285 Max.turning length mm 400 400 400 Max.bar diameter mm φ42 Standard: solid chuck φ42 Spindle Type of spindle nose A2-5 A2-5 A2-5 Spindle bore diameter mm φ57 φ57 φ57 Chuck diameter mm φ165 φ165 φ165 Spindle speeds r/min 55-5500( Servo Motor) 80-3500(Frequency-changer adjusting speed) 55-5500 Spindle motor power (continuous/30min) kW 11/15(α) 7.5/11 11/15 Tailstock Quill diameter mm φ70 φ70 φ70 Quill travel mm 80 80 80 Taper of center(standard/alive spindle) Morse No.4/2 Morse No.4/2 Morse No.4/2 Feeds Travel X/Z mm 165/410 165/410 165/410 Rapid traverse rate X/Z m/min 12/16 12/16 30/30 FANUC servo motor torque X/Z Nm 8/12 11/20 8/12 Turret Number of turret station 12/8 12/8 12/8 Tool size(turning/boring) mm 20×20/φ32 20×20/φ32 20×20/φ32 Others Slant degree of bed 45° 45° 45° Power supply kVA 35 35 35 Dimensions (L×W×H) mm 2540×1670×1710 2540×1670×1710 2370×1670×1710 Weight kg 3000 3000 3000
STANDARD ACCESSORIES
The main spindle is driven by servo motor,8-station electric tool post,Hydraulic power unit,Hydraulic 3-jaw chuck(6″ with through hole type),Lubrication unit,Coolant supply system,Patrol light.OPTIONAL ACCESSORIES
Chip conveyor
MAIN FEATURES
1. Its strength, dynamic and static rigidity, mechanics of main parts, guard and coolant system are all advanced in design.
2. Designed with high vibration strength, adopts high grade cast iron, one piece of bed base, slant guideways, a high precision through-hole spindle driven by large-field AC main motor.
3. Key parts like bearings of main spindle and of feeding screw are all famous foreign products.
4. The multi-station turret indexes fast and continuously with a high repeatability and changes tool proximately.
5. The lathe can be equipped with FANUC 0i-TD, FANUC 0i Mate-TD, Siemens 810D, 802D, DASEN 3i and etc on request. or other top brand control systems from both China and foreign countries (hydraulic parts, lubrication units and chucks that are good-quality from both domestic and foreign markets).
6. The lathe is designed with unique appearance, easy-operated panel, full-enclosed guard, which can prevent the leakage of water, power and oil effectively. It is the most powerful product in its class due to the large power, excellent accuracy and high performance.
ITEMS UNIT CK7516 CK7516A CK7516C Capacity Max.swing diameter over bed mm φ400 φ400 φ400 Max.swing dia. over slide mm φ260 φ260 φ180 Max.turning diameter mm φ285 φ285 φ285 Max.turning length mm 400 400 400 Max.bar diameter mm φ42 Standard: solid chuck φ42 Spindle Type of spindle nose A2-5 A2-5 A2-5 Spindle bore diameter mm φ57 φ57 φ57 Chuck diameter mm φ165 φ165 φ165 Spindle speeds r/min 55-5500( Servo Motor) 80-3500(Frequency-changer adjusting speed) 55-5500 Spindle motor power (continuous/30min) kW 11/15(α) 7.5/11 11/15 Tailstock Quill diameter mm φ70 φ70 φ70 Quill travel mm 80 80 80 Taper of center(standard/alive spindle) Morse No.4/2 Morse No.4/2 Morse No.4/2 Feeds Travel X/Z mm 165/410 165/410 165/410 Rapid traverse rate X/Z m/min 12/16 12/16 30/30 FANUC servo motor torque X/Z Nm 8/12 11/20 8/12 Turret Number of turret station 12/8 12/8 12/8 Tool size(turning/boring) mm 20×20/φ32 20×20/φ32 20×20/φ32 Others Slant degree of bed 45° 45° 45° Power supply kVA 35 35 35 Dimensions (L×W×H) mm 2540×1670×1710 2540×1670×1710 2370×1670×1710 Weight kg 3000 3000 3000
STANDARD ACCESSORIES
The main spindle is driven by servo motor,8-station electric tool post,Hydraulic power unit,Hydraulic 3-jaw chuck(6″ with through hole type),Lubrication unit,Coolant supply system,Patrol light.OPTIONAL ACCESSORIES
Chip conveyor
