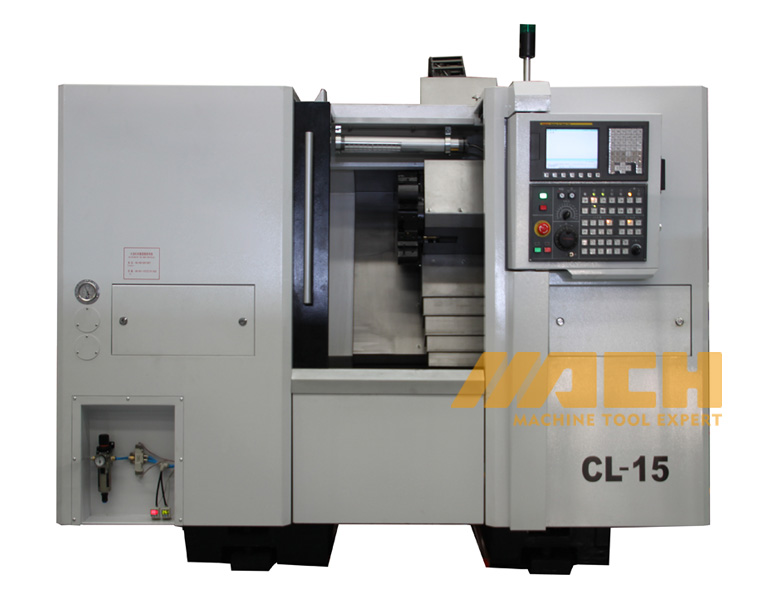

Slant Bed CNC Lathe Machine Model:CL15
Quantity: -
Slant Bed CNC Lathe Machine Model:CL15
MAIN FEATURES
1.The new DL series of CNC slant bed lathes with rigid cast-iron structre hardened(50-52HRC) and ground guarantee high precision and stability.
2.The machine bed is made of heat stabilised cast-iron.Varous configuration are available with sindles from ASA 5″ to ASA 15″,power up to 30kW and tuming length up to 3000mm.
3. A wide range of options and accessories allow the machine to be highly customised for very accurate and reliable machining.
Item CL15 CL20A Swing over bed （mm) 400 440 Max turning length(mm) 250/320 500 Max.turning diameter(Shafts)(mm) 160 360 Max.turning diameter(Discs)(mm) 200 300 Guideway type linear linear Chuck size 6″ (152.4mm ) 8″ (203.2mm) Spindle nose ISO A2-5 ISO A2-6 Spindle speed (rpm) 50-5000 45-4500 Mainspindle motor power(S6)(kW) 5.5(7.5) 11(15) Spindle bore diameter (mm) 46 62 Max bar diameter(mm) 32 52 X-axis travel (mm) 120 165 Z-axis travel (mm) 260/330 510 X-axis rapid traveres(m/min) 15 15 Z-axis rapid traveres(m/min) 18 20 Turret:number of stations 8 8 Tool size (mm) 20×20 25×25 Tailstock quill diameter(mm) 60 80 Tailstock quill travel(mm) 80 130 Tailstock taper(MT) 3 3 Machine size:L×W×H(mm) 2130/2350×1555×1880 2760×1500×1750 Net weight(kg) 3300/3500 4800 CNC Type FANUC 0i TD FANUC 0i TD
NDARD ACCESSORIES
Base Machine Configuration CL15
CNC control Fanuc 0i-TD
Screen 8.4″
Spindle Speed 50~5000rpm
Spindle Motor 5.5/7.5kw
Spindle Nose A2-5
Spindle Bore 46mm
Bar capacity 32mm
Chuck Size 6″
Turret 8
Bed Angle two pieces, 60°
Way type linear
Chip conveyor Belt Type
Tailstock Hydraulic
Coolant system √
Enclosure Guarding √
RS-232 interface and DNC function √
CE electrics √OPTIONAL ACCESSORIES
Thru-hole Chuck(cylinder)Tool Setter(RENISHAW)Door safety Inter-lock
