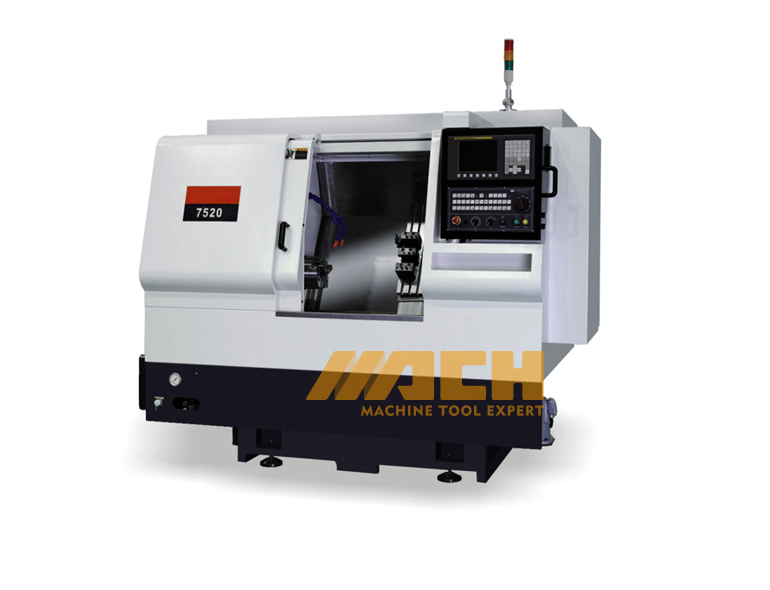

Slant Bed Precision CNC Lathe Model:7520
Quantity: -
Slant Bed Precision CNC Lathe Model:7520
MAIN FEATURES
1 High Precision Spindle
2 High Efficiency Machining
3 Machine Bed Construction
4 Accurate Feed
5 Comb type tool rest
6 Extra Heavy Cutting
7 Powerful force cooling
Model 7520 capacity Max.swing dia.over bed Φ 400mm wing over cross slide Φ 90mm Max.turning dia Φ 360mm Max.turning length 200mm Spindle Spindle speed 60～5500rpm Spindle bore dia Φ 57mm Through hole dia Φ 45mm （chuck）/ 42mm(collet) Main motor 5.5KW Turret Number of stations 7 Tool size 20X20/Φ25 Axes Travel X 360mm Travel Z 400mm Rapid feed（ X/Z） 18m/min Feed motors（ X/Z） servo 1.2KW Others Chuck 5″ Rotating hydraulic cylinder 6″ Required electric power(KVA) 12KVA Floor space(L*W*H) 2360X1569X1810 Mass 2800Kg Control system FANUC Oi-MATE TD Controlled axes Simultaneously 2 axes,1 axis manual mode Input sysytem MDI input,absolute/incremental programming Program storage 640M（512KB） Interpolation function Linear Taper Circular Threading Min.input 0.0001mm Min.command X:0.0005mm Z:0.001mm Feed rate Feed per min 1-10000mm/min Feed per rev 0.0001-500mm/rev Tool offset Geometry ±999.9999 Wear ±9.9999 Tool offset pairs 64pairs Number of register able program 400 Manual handle feed 0.5/0.1/0.01/0.001 Auxiliary function M、S、T Dwell time 0－99999.999sec Feed rate override 0－150％ Rapid traverse override F0、25、50、100 Input/output interface RS232C Language Chinese/English CS contouring control Cs0.001
STANDARD ACCESSORIES
lighting unit 1set
Automatic slide surface lubricate 1set
Hydraulic clamping unit 1set
Preset base 1set
S1、S2 Tool holder 1set
I.D holder 1set
S3 Tool holder 2set
Milling collet chuck 1set
Tools and tool box 1set
Circuit breake 1set
Signal lamp 1set
Heat exchanger 1set
Transformer 1set
Machine base 4set
Machine full enclosed housing 1set
5″Collet(with 1 spring collet) 1set
CS contouring control 1setOPTIONAL ACCESSORIES
Hydraulic chuck(6″)
Parts feeder
Auto parts catcher
Part conveyer
Spring collet
Kinds of cutters
Cross driven tools
Various fixture and jigs
Pneumatic system
Counter
Sleeve
Chip Conveyor
