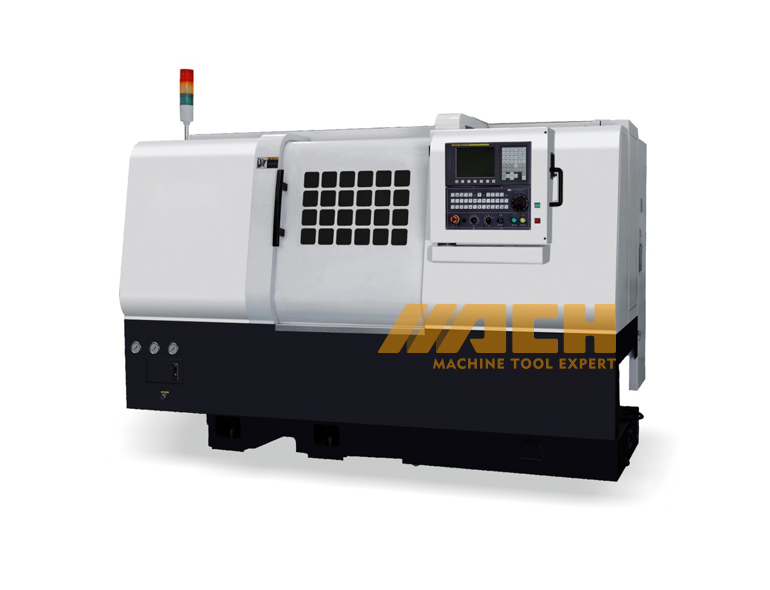

Slant Bed Precision CNC Lathe Model:7540C
Quantity: -
Slant Bed Precision CNC Lathe Model:7540C
MAIN FEATURES
1 High Precision Spindle
2 High Efficiency Machining
3 Machine Bed Construction
4 Accurate Feed
5 Hydraulic Turret
6 Hydraulic Tailstock
7 Extra Heavy Cutting
8 Control System
Model 7540C capacity Max.swing dia.over bed Φ 430mm wing over cross slide Φ 300mm Max.turning dia Φ 300mm Max.turning length 550mm Spindle Spindle speed XKC7540/7540C：50～4500rpm Spindle bore dia Φ 57mm Through hole dia Φ 45mm （chuck）/42mm(collet) Main motor XKC7540/7540C：servo11/15KW Turret Number of stations 12 Tool size 20X20/Φ32 Tailstock Tailstock quill dia Φ 90mm Center taper MT4 Tailstock quill? travel 90mm Axes Travel X 220mm Travel Z 600mm Rapid feed（X/Z） 24m/min Feed motors（X/Z） X ：1.8KW??? ?Z：2.5KW Others Chuck 8″ Rotating hydraulic cylinder 6″ Required electric power(KVA) 15KVA Floor space(L*W*H) 2700X1650X1780 Mass 3500Kg Control system FANUC Oi-MATE TD Controlled axes Simultaneously 2 axes,1 axis manual mode Input sysytem MDI input,absolute/incremental programming Program storage 640M（512KB） Interpolation function Linear Taper Circular Threading Min.input 0.0001mm Min.command X:0.0005mm Z:0.001mm Feed rate Feed per min 1-10000mm/min Feed per rev 0.0001-500mm/rev Tool offset Geometry ±999.9999 Wear ±9.9999 Tool offset pairs 64pairs Number of register able program 400 Manual handle feed 0.5/0.1/0.01/0.001 Auxiliary function M、S、T Dwell time 0－99999.999sec Feed rate override 0－150％ Rapid traverse override F0、25、50、100 Input/output interface RS232C Language Chinese/English CS contouring control Cs0.001
STANDARD ACCESSORIES
Coolant system 1set
lighting unit 1set
Automatic slide surface lubricate 1set
Hydraulic clamping unit 1set
O.D Tool Holder 1set
I.D Tool Holder 3set
Pads for tool holder 8set
Hydraulic Tailstock 1set
Hydraulic Turret 1set
Tools and tool box 1set
Machine base 4set
vinyl conver 1set
Circuit breake 1set
Signal lamp 1set
Hydraulic chuck 1set
Transformer 1set
Heat exchanger 1set
full enclosed housing 1setOPTIONAL ACCESSORIES
(8″) Hydraulic chuck
Parts feeder
Auto parts catcher
Part conveyer
Spring collet
（5″）Hydraulic collect
Kinds of cutters
Various fixture and jigs
Pneumatic system
Counter
Sleeve
Chip Conveyor
