FEATURES:

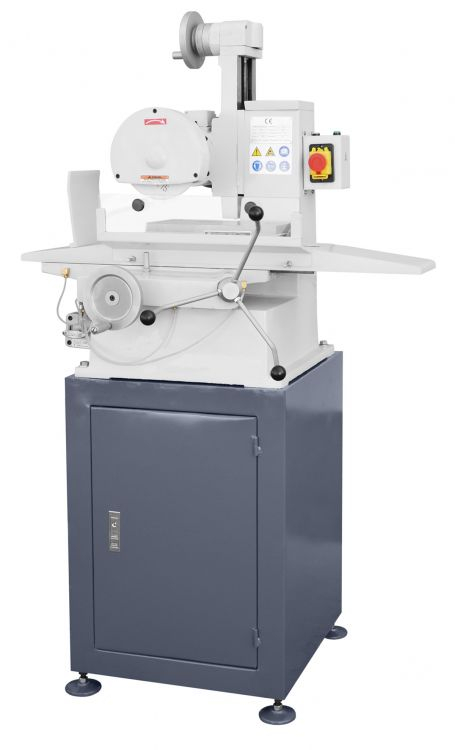

1)This small-type grinder is designed to grind various horizontal and vertical surfaces of the workpieces by the periphery and end faces of the grinding wheel respectively.
2) It can also grind various contoured workpieces with shaped wheel or craftsmanship apparatus.
3)With simple structure and easy operation and maintenance, it can be used in small enterprises, repair shops and family
Specification:
| SPECIFICATIONS | Metric | Inch |
| Longitudinal stroke | 340mm | 14 |
| Lateral stroke | 170mm | 7 |
| Grinding height | 210mm | 8 |
| Area of table | 152mm×304mm | 6×12 |
| Width of T-slot | 1-12mm | 1-0.47 |
| Cross feed per graduation | 0.02mm | 0.001 |
| Cross feed per round | 2.54mm | 0.1 |
| Vertical feeds per graduation | 0.025mm | 0.001 |
| Vertical feed per round | 1.25mm | 0.05 |
| Roughness | 1.6μm | |
| Grinding wheel | 180mm×32mm×13mm | |
| Power of motor | 0.55kw | |
| N. W. / G.W.of machine | 210/258kg | |
| N. W. / G.W.of stand | 30/54kg | |
| Overall dimension of machineL×W×H | 930×780×730mm | |
| Case dimension of machineL×W×H | 930×780×1480mm | |
| Case dimension of standL×W×H | 720×550×550mm | |
