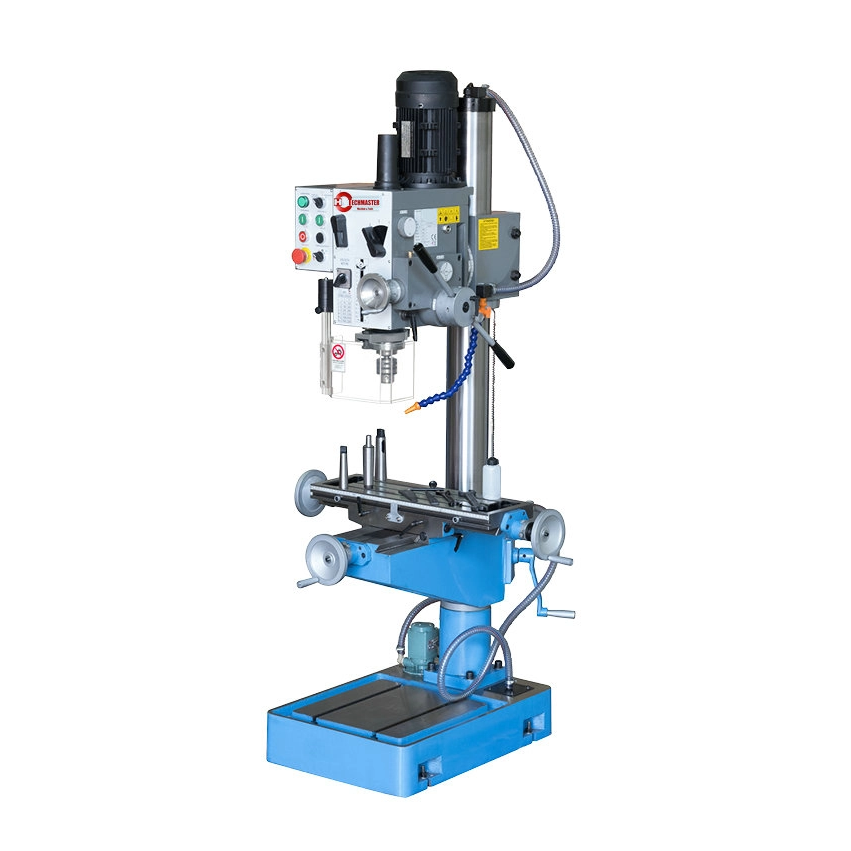

Stand Gear Head Spindle Power Feed Drilling and Milling Machine (BF40P)
Quantity: -
BF40P
Product Description
BF40P
FEATURES:
Spindle Mannual or Power Down Feed (0.10 - 0.18 - 0.26 mm per/rev.)
Spindle runs in precision and high load bearings, precision and hardened gears, low noise
Spindle head stock to column swiveling 360º and tilting ±90º
Spindle head height adjustable through rack gear
Stable and precision ground cast iron thick-walled column in generously sized mount
Magnetic switch on/off with emergency stop and combined switch for spindle running left and right

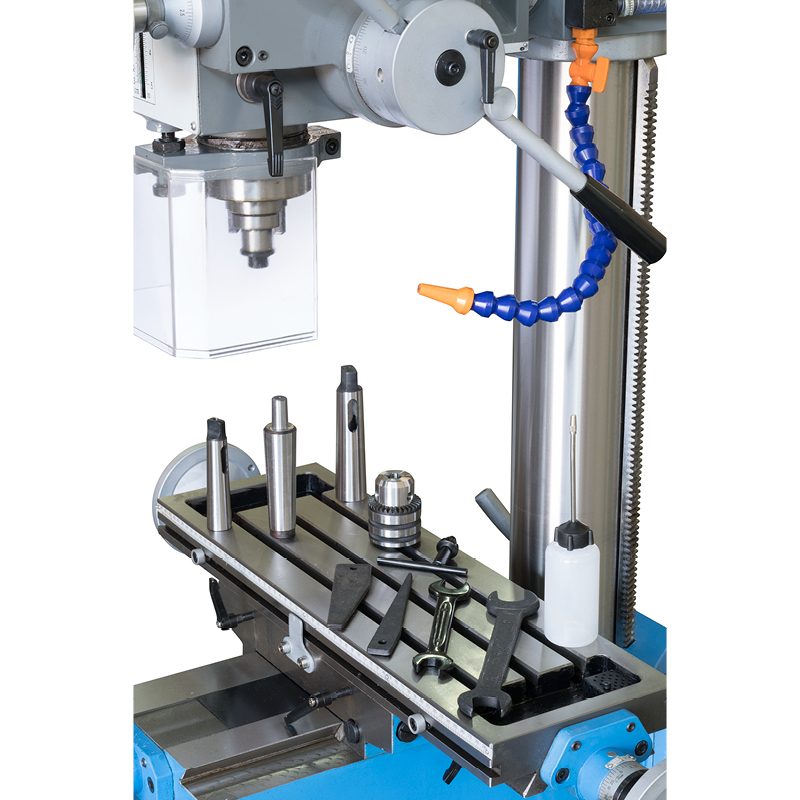

Precision ground grey cast iron cross worktable with coolant groove
Big dimension and robust cross work table to column rotary
Work table height adjustable through rack gear
Hand lever controlled manual spindle quick feed, with hand wheel for spindle micro feed
Conversion clutch from spindle quick feed to micro feed
Massive machine base with precision machined surface

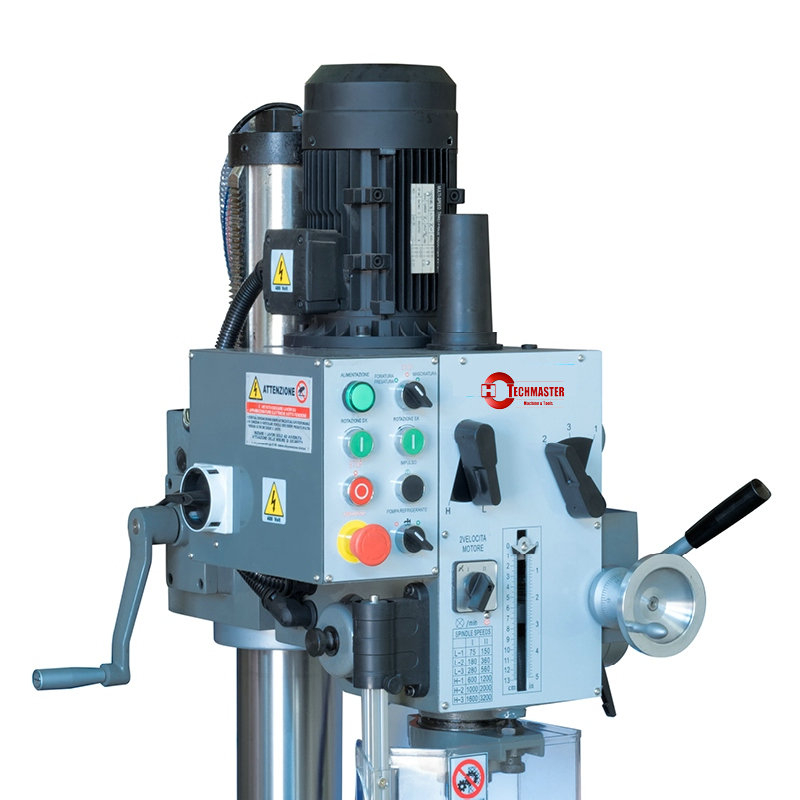

Easy spindle speeds change over gear box through handles in front of spindle head
Drilling depth scale with adjustable depth stop on front of spindle stock
OPTIONTAL ACCESSORIES:
Halogen Lamp 24V/ 50W
Tapping Control Electrical System
Power Table Feed for Travel X or Y
3-Axis Digital Readout System
Spindle Protection Guard with Switch on/off
Digital Scale Unit Readout for Spindle Feeding Depth
Double Speed Motor for big Spindle Speed Range 75- 3200 rpm
Coolant System with coolant tank in machine foot integrated
Technical DataModel BF40 P Drilling Capacity in Iron 40 mm Drilling Capacity in Steel 32 mm End Milling Capacity in Steel 32 mm Face Milling Capacity in Steel 100 mm Distance Spindle to Column 330 mm Max. Dist. Spindle to Work Table 610 mm Max. Dist. Spindle to Machine Base 1180 mm Spindle Taper MT 4 Spindle Speed 75 - 1600 rpm (6) Spindle Travel 150 mm Column Diameter 115 mm Work Table Size 600 x 190 mm Work Table Travel X 370 mm Work Table Travel Y 190 mm T- Slot Size x pcs 12 mm x 3 Motor Power 1.5 Kw, 50 Hz Net Weight 380 kg Packing Size 760x830x1870mm
