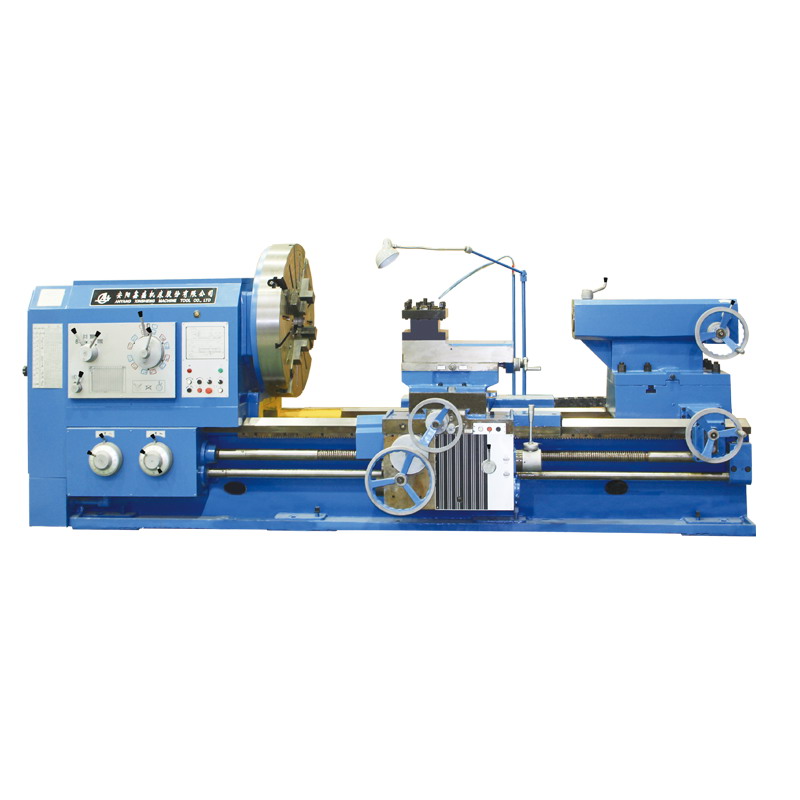

Swing Dia.1000MM-1600MM(6t) Normal Heavy Duty Horizontal Engine Lathe Conventional Lathe Machine

Availability:
Quantity:
  • Swing Dia.1000MM-1600MM(6t) Normal Heavy Duty Horizontal Engine Lathe Conventional Lathe Machine


Ordinary heavy duty 6T manual machine description

This series of machine tools are mainly used to undertake all kinds of turning work, it can turn all kinds of parts of the end, cylindrical, bore and metric thread, inch thread, modulus thread, diameter thread. Can be used on the turret to cut the taper alone, but also can be used on the knife with the vertical feed with the long taper motor. In addition can also bear the drilling, nesting, boring and other processes. The machine power, rigidity, and can use carbide cutting tools for thread cutting, to process a variety of ferrous metals and non-ferrous metals.

CW61100B is the basic product, the maximum diameter of the bed diameter of 1000mm.

CW61125B is the basic heightening products, the maximum diameter of the body diameter of 1250mm.

CW61140B is the basic heightening of the product, the maximum diameter of the body diameter of 1400mm.

CW61160B is a special high-increase products, the maximum diameter of the body diameter of 1600mm.



ITEMUNITCW61100BCW61125BCW61140BCW61160B
CAPACITIES
Swing over bedmm1000125014001640
Swing over carriagemm61586510151250
Max.length of workpiecemm1500 2000 3000 4000 5000 6000 8000 10000 12000
Max.turning lengthmm1300 1800 2800 3800 4800 5800 7800 9800 11800
Pan of guidewaymm755
SPINDLE
Spindle nosemmA2-15(8×M22)
Spindle boremm130
Taper hole of spindle
1:20/140
Range of spindle speedsr/minforward:3.15~315 ;  reverse:3.5~291
No.of spindle speeds
forward:21;                reverse:12
FEED
No.of Longitudinal and cross
56/56
Feed per revolutionmmLongitudinal:0.1~12;cross:0.05~6;top slide:0.025~3
No. and range of metric thread
44;1~120mm
No. and range of inch thread
31;28~1/4
No. and range of module thread
45;0.5~60mm
No. and range of dia. thread
38;1/2~56DP
turret
Distance of centerline and tool resting planemm48
Tool post swing range°±90°
Max.travel of cross slidemm520(20″)580580630
Max.travel of top slidemm300
Section of tool shankmm45(260x260)
Rapid travel speedsmm/minLongitudinal:3740;cross:1870;Little slide:935
TAILSTOCK
Dia. of tailstockmm160(6″)
Travel of tailstock quillmm300(12″)
Taper hole of tailstock quill
morse 6
OTHERS
Main motor powerkw22
Lengthmm4600 5100 6100 7100 8100 9100 11100 13100 15100
Widthmm2150
Heightmm1700   1825   2150
Max.weight of workpiecekg6000
