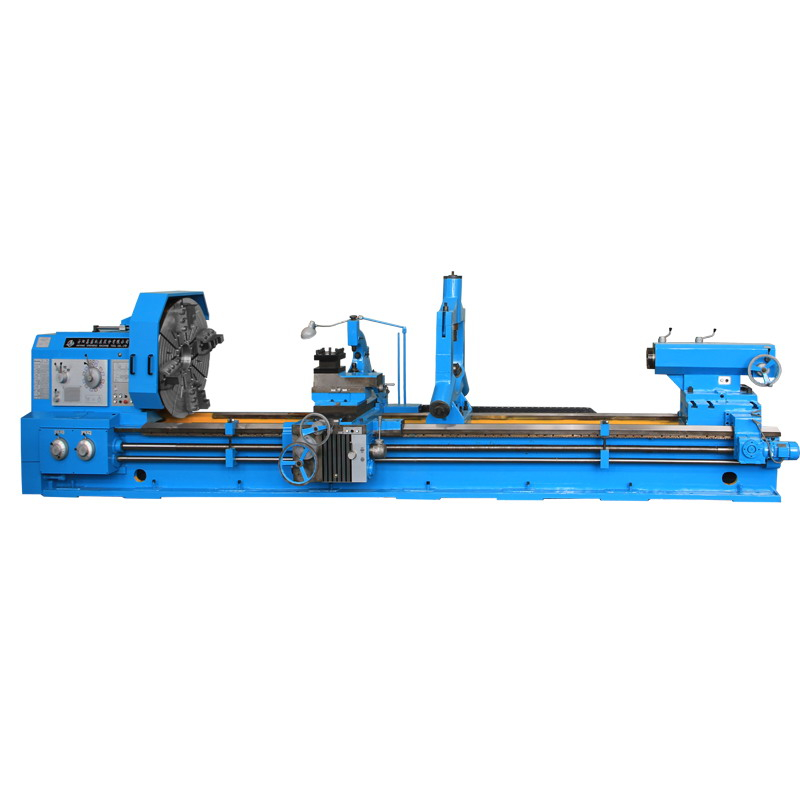

Swing Dia.1250MM-1600MM(10T) Large Swing Diameter Heavy Duty Conventional Horizontal Lathe
Quantity: -
Swing Dia.1250MM-1600MM(10T) Large Swing Diameter Heavy Duty Conventional Horizontal Lathe
Ordinary heavy duty 10T manual machine description
This series of machine tools are mainly used to undertake all kinds of turning work, it can turn all kinds of parts of the end, cylindrical, bore and metric thread, inch thread, modulus thread, diameter thread. Can be used on the turret to cut the taper alone, but also can be used on the knife with the vertical feed with the long taper motor. In addition can also bear the drilling, nesting, boring and other processes. The machine power, rigidity, and can use carbide cutting tools for thread cutting, to process a variety of ferrous metals and non-ferrous metals.
CW61125 / 10T is a base type product with a maximum turning diameter of 1250mm.
CW61140 / 10T is the base type heightening products, the maximum diameter of the bed is 1400mm.
CW61160 / 10T is a high size, the maximum diameter of the bed diameter of 1600mm。
ITEM UNIT CW61125 CW61140 CW61160 CAPACITIES Swing over bed mm 1250 1400 1600 Swing over carriage mm 865 1010 1210 Max.length of workpiece mm 3000 4000 5000 6000 8000 10000 12000 Max.turning length mm 2800 3800 4800 5800 7800 9800 11800 Pan of guideway mm 970 Max.cutting force N 45000 Max.weight of workpiece kg 10000 SPINDLE Dia.of spindle hole mm 130 Taper hole of spindle Metric140 Range of spindle speeds r/min forward：3.15~315； reverse：3.5~291 No.of spindle speeds forward：21； reverse：12 FEED Longitudinal and cross 56 Range of feed motion mm longitudinal：0.1~12；cross：0.05~6； top siide：0.025~3 No. and range of metric thread 44；1~120 No. and range of inch thread 31;28~1/4 No. and range of module thread 45;0.5~60 No. and range of dia. thread 38;1/2~56DP TURRET Max.travel of cross slide mm 650 Max.travel of top slide mm 300 Section of tool shank mm 45（260x260） Tool post swing range ° ±90° Rapid of tool post mm/min Longitudinal:3740；cross:1870；top slide:935 Max.travel of tool post mm 2900 3900 4900 5900 7900 9900 11900 TAILSTOCK Dia. of tailstock mm 220 Travel of tailstock quill mm 300 Taper hole of tailstock quill morse 6 OTHERS Main motor power kw 22 Length mm 6020 7020 8020 9020 11020 13020 15020 Width mm 1995 Height mm 2175 2325 2525 Ordinary heavy duty 10T manual machine description
This series of machine tools are mainly used to undertake all kinds of turning work, it can turn all kinds of parts of the end, cylindrical, bore and metric thread, inch thread, modulus thread, diameter thread. Can be used on the turret to cut the taper alone, but also can be used on the knife with the vertical feed with the long taper motor. In addition can also bear the drilling, nesting, boring and other processes. The machine power, rigidity, and can use carbide cutting tools for thread cutting, to process a variety of ferrous metals and non-ferrous metals.
CW61125 / 10T is a base type product with a maximum turning diameter of 1250mm.
CW61140 / 10T is the base type heightening products, the maximum diameter of the bed is 1400mm.
CW61160 / 10T is a high size, the maximum diameter of the bed diameter of 1600mm。
ITEM UNIT CW61125 CW61140 CW61160 CAPACITIES Swing over bed mm 1250 1400 1600 Swing over carriage mm 865 1010 1210 Max.length of workpiece mm 3000 4000 5000 6000 8000 10000 12000 Max.turning length mm 2800 3800 4800 5800 7800 9800 11800 Pan of guideway mm 970 Max.cutting force N 45000 Max.weight of workpiece kg 10000 SPINDLE Dia.of spindle hole mm 130 Taper hole of spindle Metric140 Range of spindle speeds r/min forward：3.15~315； reverse：3.5~291 No.of spindle speeds forward：21； reverse：12 FEED Longitudinal and cross 56 Range of feed motion mm longitudinal：0.1~12；cross：0.05~6； top siide：0.025~3 No. and range of metric thread 44；1~120 No. and range of inch thread 31;28~1/4 No. and range of module thread 45;0.5~60 No. and range of dia. thread 38;1/2~56DP TURRET Max.travel of cross slide mm 650 Max.travel of top slide mm 300 Section of tool shank mm 45（260x260） Tool post swing range ° ±90° Rapid of tool post mm/min Longitudinal:3740；cross:1870；top slide:935 Max.travel of tool post mm 2900 3900 4900 5900 7900 9900 11900 TAILSTOCK Dia. of tailstock mm 220 Travel of tailstock quill mm 300 Taper hole of tailstock quill morse 6 OTHERS Main motor power kw 22 Length mm 6020 7020 8020 9020 11020 13020 15020 Width mm 1995 Height mm 2175 2325 2525
