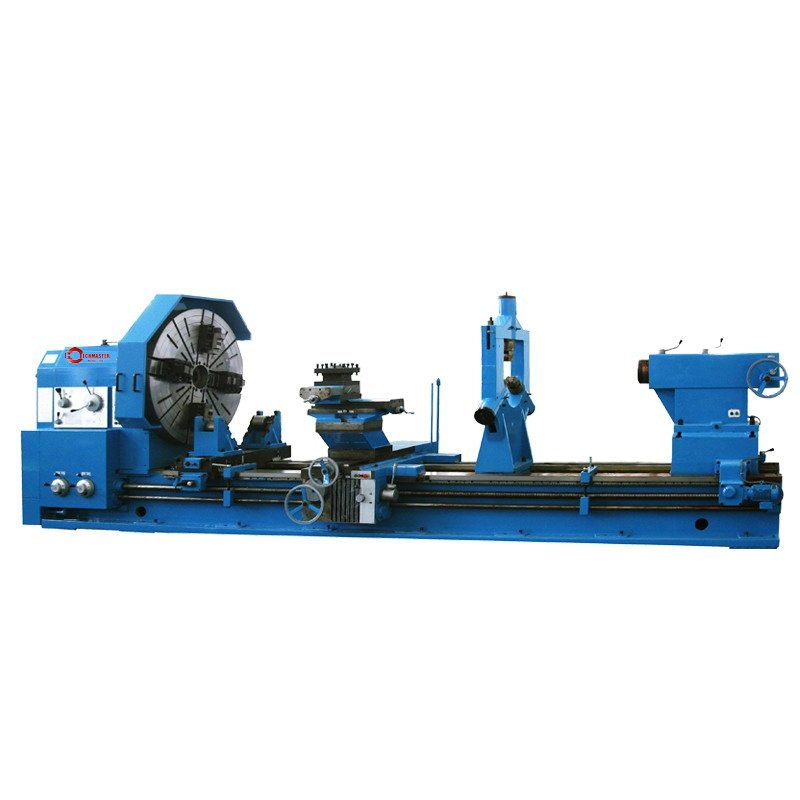

Swing Dia.1250MM-2000MM(16t) Large Swing Diameter Heavy Duty Horizontal Conventional Lathe Machine
Quantity: -
Swing Dia.1250MM-2000MM(16t) Large Swing Diameter Heavy Duty Horizontal Conventional Lathe Machine
Ordinary heavy duty 10T manual machine description
This series of machine tools are mainly used to undertake all kinds of turning work, it can turn all kinds of parts of the end, cylindrical, bore and metric thread, inch thread, modulus thread, diameter thread. Can be used on the turret to cut the taper alone, but also can be used on the knife with the vertical feed with the long taper motor. In addition can also bear the drilling, nesting, boring and other processes. The machine power, rigidity, and can use carbide cutting tools for thread cutting, to process a variety of ferrous metals and non-ferrous metals.
C61125 / 16T is a basic product, the maximum diameter of the bed diameter of 1250mm.
C61160 / 16T is the basic type of high product, the maximum diameter of the bed diameter of 1600mm
C61180 / 16T is the basic type of high product, the maximum diameter of the bed diameter of 1800mm.
C61200 / 16T is the basic type of high product, the maximum diameter of the bed diameter of 2000mm.
ITEM UNIT C61125 C61160 C61180 C61200 CAPACITIES Swing over bed mm 1250 1600 1800 2000 Swing over carriage mm 900 1250 1450 1650 Max.length of workpiece mm 3000 4000 5000 6000 8000 10000 12000 Max.turning length mm 2800 3800 4800 5800 7800 9800 11800 Pan of guideway mm 1100 SPINDLE Spindle nose mm A2-15 Spindle bore mm 100 Taper hole of spindle Metric140 Range of spindle speeds r/min Forward：3.15~315； Reverse：3.5~291 No.of spindle speeds r/min Forward：21 ； Reverse：12 FEED No.of Longitudinal and cross 56/56 Feed per revolution mm Longitudinal：0.1~12；Transverse：0.05~6；Up turret：0.025~3 No. and range of metric thread 44；1~120mm No. and range of inch thread 31；28~1/4″ No. and range of module thread 45;0.5~60mm No. and range of dia. thread 38;1/2~56DP TURRET Distance of centerline and tool resting plane mm 53 Tool post swing range ° ±90° Max.travel of cross slide mm 740 850 900 900 Max.travel of top slide mm 360 Section of tool shank mm 50（380x380） Travel of tool post (per turn of dials) mm 0.05(0.002″) TAILSTOCK Dia. of tailstock mm 260 Travel of tailstock quill mm 300(12″) Taper hole of tailstock quill Metric80 OTHERS Main motor power kw 30 Length mm 6120 7120 8120 9120 11120 13120 15120 Width mm 2058 2130 2330 2430 Height mm 2200 2380 2480 2580 Max.weight of workpiece t 16 Ordinary heavy duty 10T manual machine description
This series of machine tools are mainly used to undertake all kinds of turning work, it can turn all kinds of parts of the end, cylindrical, bore and metric thread, inch thread, modulus thread, diameter thread. Can be used on the turret to cut the taper alone, but also can be used on the knife with the vertical feed with the long taper motor. In addition can also bear the drilling, nesting, boring and other processes. The machine power, rigidity, and can use carbide cutting tools for thread cutting, to process a variety of ferrous metals and non-ferrous metals.
C61125 / 16T is a basic product, the maximum diameter of the bed diameter of 1250mm.
C61160 / 16T is the basic type of high product, the maximum diameter of the bed diameter of 1600mm
C61180 / 16T is the basic type of high product, the maximum diameter of the bed diameter of 1800mm.
C61200 / 16T is the basic type of high product, the maximum diameter of the bed diameter of 2000mm.
ITEM UNIT C61125 C61160 C61180 C61200 CAPACITIES Swing over bed mm 1250 1600 1800 2000 Swing over carriage mm 900 1250 1450 1650 Max.length of workpiece mm 3000 4000 5000 6000 8000 10000 12000 Max.turning length mm 2800 3800 4800 5800 7800 9800 11800 Pan of guideway mm 1100 SPINDLE Spindle nose mm A2-15 Spindle bore mm 100 Taper hole of spindle Metric140 Range of spindle speeds r/min Forward：3.15~315； Reverse：3.5~291 No.of spindle speeds r/min Forward：21 ； Reverse：12 FEED No.of Longitudinal and cross 56/56 Feed per revolution mm Longitudinal：0.1~12；Transverse：0.05~6；Up turret：0.025~3 No. and range of metric thread 44；1~120mm No. and range of inch thread 31；28~1/4″ No. and range of module thread 45;0.5~60mm No. and range of dia. thread 38;1/2~56DP TURRET Distance of centerline and tool resting plane mm 53 Tool post swing range ° ±90° Max.travel of cross slide mm 740 850 900 900 Max.travel of top slide mm 360 Section of tool shank mm 50（380x380） Travel of tool post (per turn of dials) mm 0.05(0.002″) TAILSTOCK Dia. of tailstock mm 260 Travel of tailstock quill mm 300(12″) Taper hole of tailstock quill Metric80 OTHERS Main motor power kw 30 Length mm 6120 7120 8120 9120 11120 13120 15120 Width mm 2058 2130 2330 2430 Height mm 2200 2380 2480 2580 Max.weight of workpiece t 16
