T-35
Quantity: Very rigid construction with thick-walled column and heavy, secure machine foot
8 speed steps for effective power transmission - no belt slippage
easy rpm adjustment via two shift levers and 2-step main motor
Automatic depth-adjustable quill feed with 4 gear steps
Solid and durable rack-and-pinion drive made of C45 steel, plus adjustable drill head and table
Large, heavy drill table, including T-slots, fine-ground surface

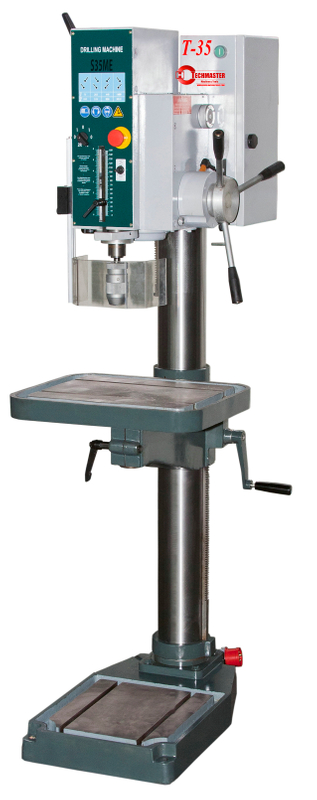

vertical drilling machine T35 is controlled by PLC, and features attached electromagnetic automatic feeding.
Model T-32 T-35 T-40 Max.drilling dia.(mm) 32 35 40 Spindle travel(mm) 135 150 190 Tapping capacity in steel/cast iron M12/M16 M14/M18 M18/M32 Morse taper MT4 MT4 MT4 Motor power 1.3kW/1.5kW 1.5kW/1.8kW 1.5kW/1.8kW Spindle speeds at 50Hz 75-160-265-440-535-
890-1490-301075-160-265-440-535-
890-1490-301090-135-200-440-670-
980-1500Spindle speeds at 60Hz 90-190-320-640-530-
1060-1790-361090-190-320-640-530-
1060-1790-3610108-162-240-360-528-
805-1175-1800Feed speed(mm/rev) 0.1-0.15-0.22-0.33 0.1-0.15-0.22-0.33 0.1-0.16-0.24-0.33 Packing size(cm) 170X67X90 170X67X85 170X67X85 N.W./G.W. 245/270kg 275/290kg 275/290kg
Very rigid construction with thick-walled column and heavy, secure machine foot
8 speed steps for effective power transmission - no belt slippage
easy rpm adjustment via two shift levers and 2-step main motor
Automatic depth-adjustable quill feed with 4 gear steps
Solid and durable rack-and-pinion drive made of C45 steel, plus adjustable drill head and table
Large, heavy drill table, including T-slots, fine-ground surface
vertical drilling machine T35 is controlled by PLC, and features attached electromagnetic automatic feeding.
Model T-32 T-35 T-40 Max.drilling dia.(mm) 32 35 40 Spindle travel(mm) 135 150 190 Tapping capacity in steel/cast iron M12/M16 M14/M18 M18/M32 Morse taper MT4 MT4 MT4 Motor power 1.3kW/1.5kW 1.5kW/1.8kW 1.5kW/1.8kW Spindle speeds at 50Hz 75-160-265-440-535-
890-1490-301075-160-265-440-535-
890-1490-301090-135-200-440-670-
980-1500Spindle speeds at 60Hz 90-190-320-640-530-
1060-1790-361090-190-320-640-530-
1060-1790-3610108-162-240-360-528-
805-1175-1800Feed speed(mm/rev) 0.1-0.15-0.22-0.33 0.1-0.15-0.22-0.33 0.1-0.16-0.24-0.33 Packing size(cm) 170X67X90 170X67X85 170X67X85 N.W./G.W. 245/270kg 275/290kg 275/290kg
