T2870 (280x700mm ) SQUARE
Quantity: -
T2870 (280X700)

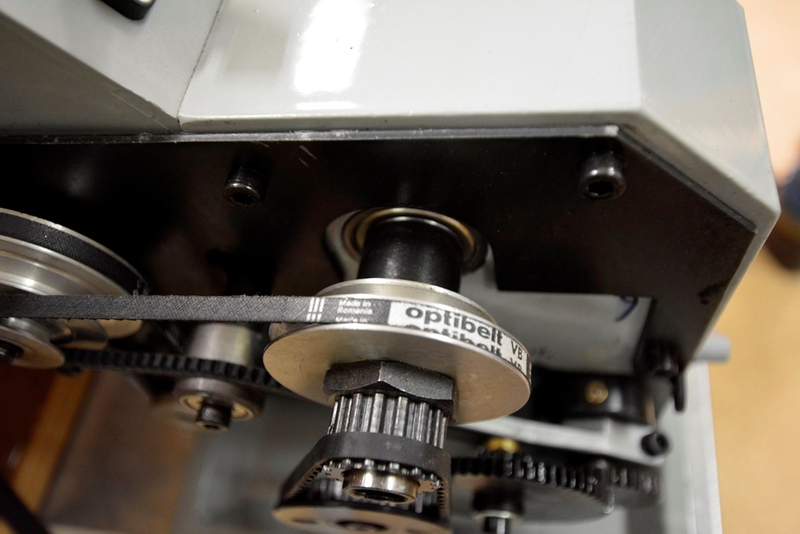

Model No. Unit TU2870 ( belt drive ） swing over bed mm Ø280(11.02") swing over cross slide mm Ø170(6.69") admits between mm 700(27.56") center height mm 140(5.51") width of bed mm 180(7.09") spindle bore mm Ø26(1.02") spindle taper mm MT4 3-jaw chuck mm Ø125(4.92") range of spindle speed rpm 150-2000 compound rest travel mm 60(2.36") cross slide travel mm 140(5.51") max. section of tool mm 18×18(0.71"×0.71") threads metric pitches mm 0.2-3.5(0.01"-0.14") threads imperial pitches 8--56TPI quill diameter mm Ø30(1.18") quill travel mm 105(4.13") quill taper MT2 main motor power W 850W overall dimension(L×W×H) mm 1220×660×560 packing size(L×W×H) mm 1316×556×630 N.W./G.W. kg 202/230 Model No. Unit TU2870 ( belt drive ） swing over bed mm Ø280(11.02") swing over cross slide mm Ø170(6.69") admits between mm 700(27.56") center height mm 140(5.51") width of bed mm 180(7.09") spindle bore mm Ø26(1.02") spindle taper mm MT4 3-jaw chuck mm Ø125(4.92") range of spindle speed rpm 150-2000 compound rest travel mm 60(2.36") cross slide travel mm 140(5.51") max. section of tool mm 18×18(0.71"×0.71") threads metric pitches mm 0.2-3.5(0.01"-0.14") threads imperial pitches 8--56TPI quill diameter mm Ø30(1.18") quill travel mm 105(4.13") quill taper MT2 main motor power W 850W overall dimension(L×W×H) mm 1220×660×560 packing size(L×W×H) mm 1316×556×630 N.W./G.W. kg 202/230
