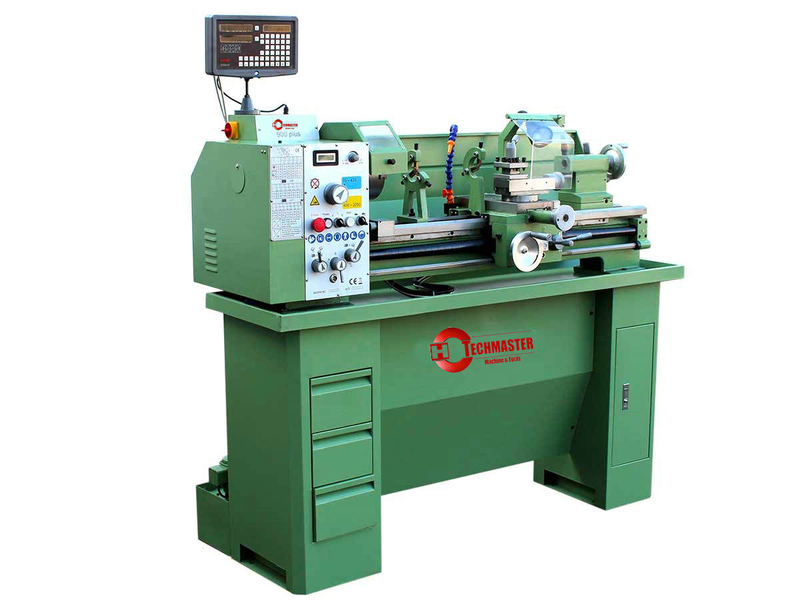

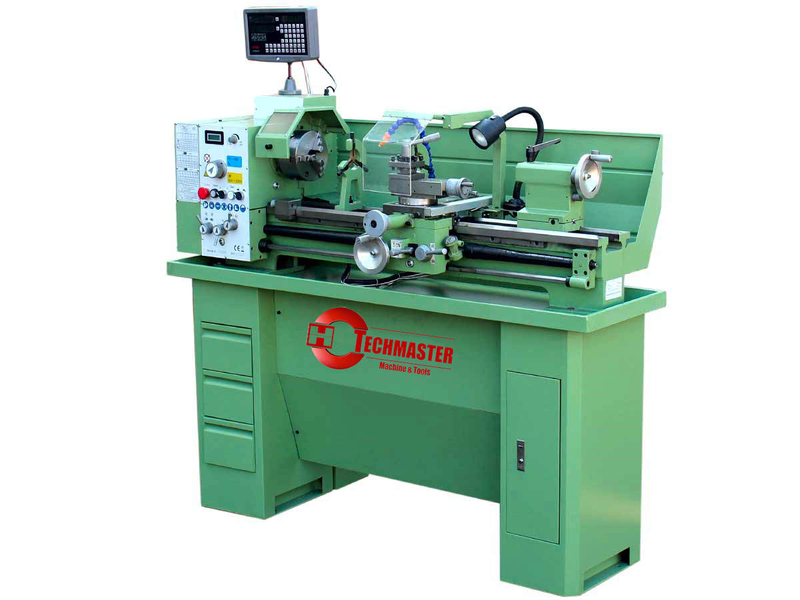

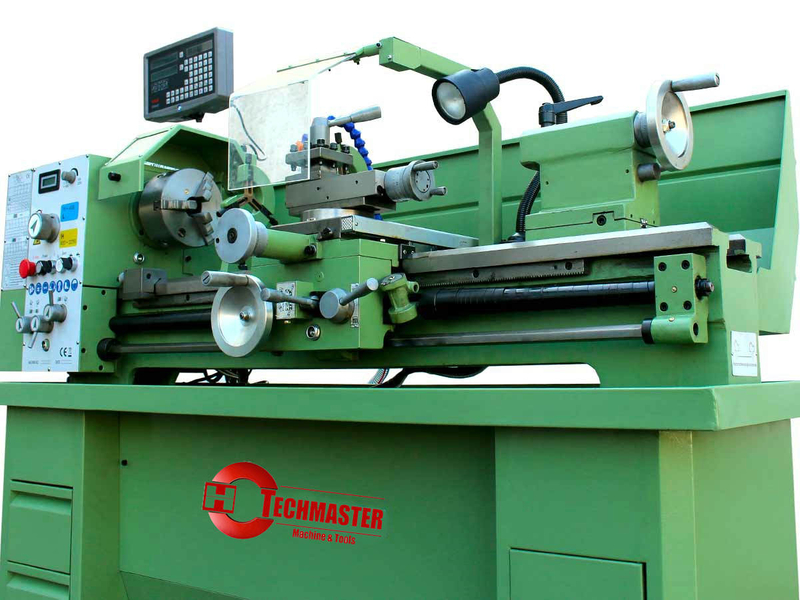

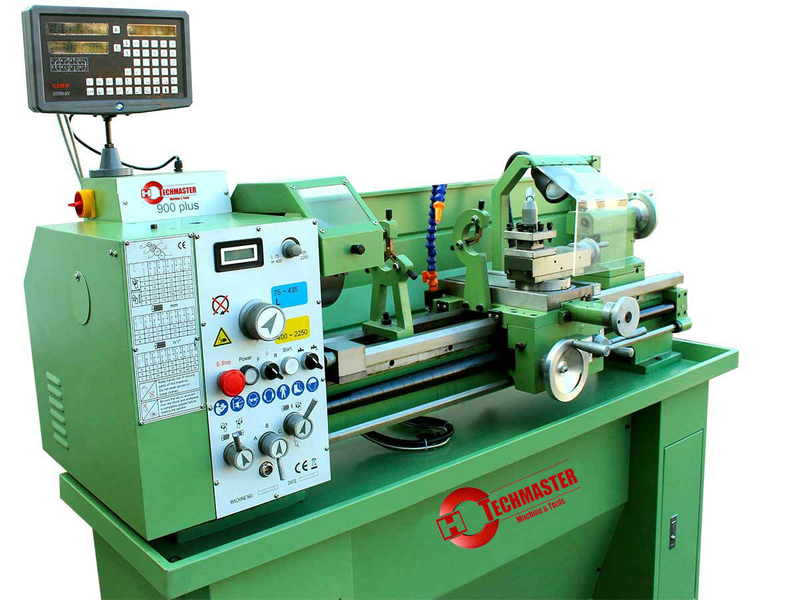

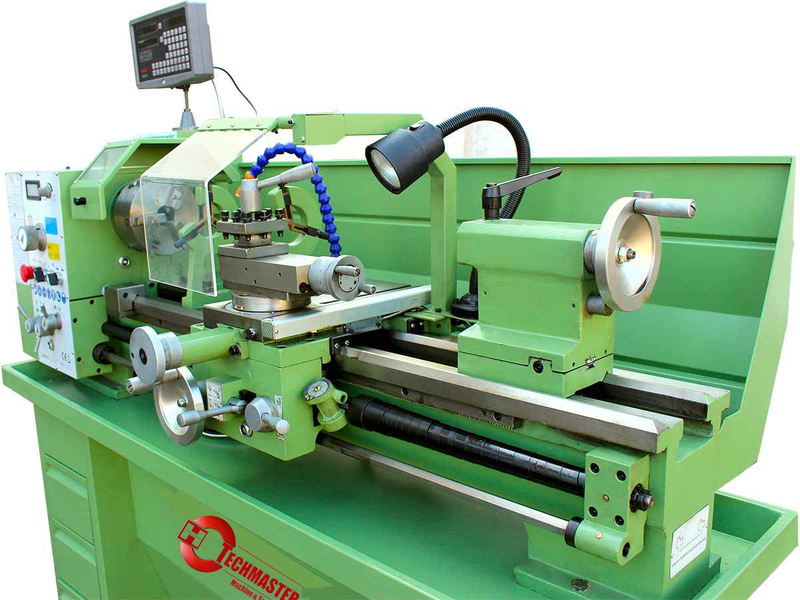

T900 PLUS DRO

Availability:
Quantity:
  • T900 PLUS DRO

The Vario-lathe Vario lathe features a reduction gear as standard, which eliminates the need to change speed step using V-belt. Another feature of this machine is the standard frequency inverter, resulting in high torque in the lower speed range and the nearly constant speed at heavy workloads.

  • Complete with 38 mm spindle bore to allow processing of large shaft diameters

  • Strongly reinforced machine bed featuring induction-hardened, polished guide

  • Suitable for processing of steel, non-ferrous metals and plastics

  • Universal in use: longitudinal turning, facing, profiling, thread cutting etc.

  • Change gears for cutting of metric threads are part of the standard accessories

  • Main spindle features adjustable tapered roller bearings in P5 quality

  • User-friendly arrangement of control elements on gear head

  • Tailstock features single-lever clamping, adjustable for taper turning

  • V-ledges allow for adjustment of bed way guides

  • Serially with Delta frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads

  • Distance between centers

    880 mm

    Center height

    160 mm

    Swing over bed

    320 mm

    Spindle bore

    38 mm

    Taper at spindle bore

    DIN 55029, D1-4

    Speed range, stepless

    75 – 435 / 400 – 2250 rpm

    Longitudinal feed

    (15) 0,07 – 1,0 mm/rev.

    Cross feed

    (15) 0,017 – 0,25 mm/rev.

    Metric thread

    (18) 0,2 – 3,5 mm

    Inch thread

    (21) 8 – 56 threads/1“

    Travel of tailstock sleeve

    100 mm

    Taper of tailstock sleeve

    MT 3

    Motor power output S1 100%

    1,5 KW / 230 V



    Motor power input S6 40%

    2,2 kW / 230 V



    Machine dimension (W x D x H)*

    1660 x 650 x 570 mm

    Weight approx.

    255 kg


Standard accessories

  • 3-jaw chuck DK11-160 mm / D4

  • Dead centers

  • Change gears

  • 4-way tool post holder

  • Safety clutch

  • Micrometer longitudinal fence

  • Cross slide with top support

  • Frequency inverter

  • Digital speed indication

  • Thread dial

  • LED machine light

  • Chuck guard

  • Splash guard

  • Leadscrew cover

  • Tools
