T900 PLUS
Quantity: -
T900 PLUS

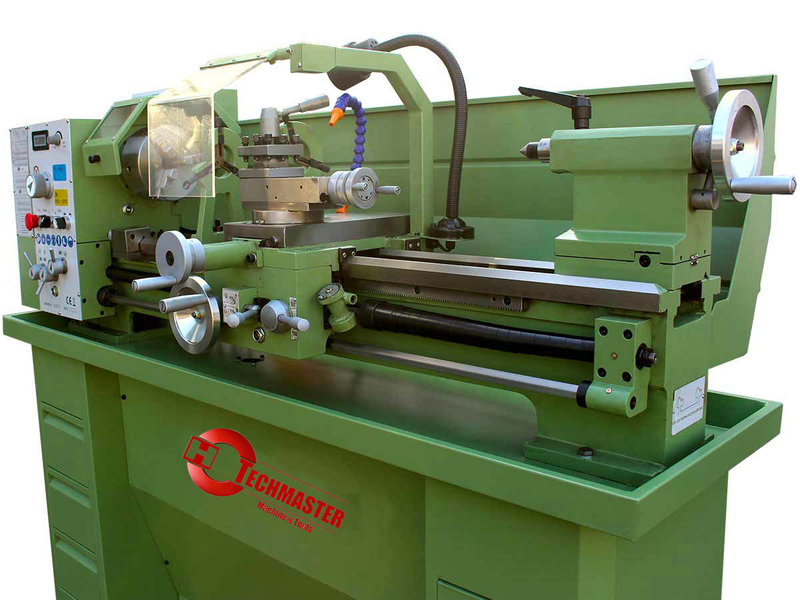

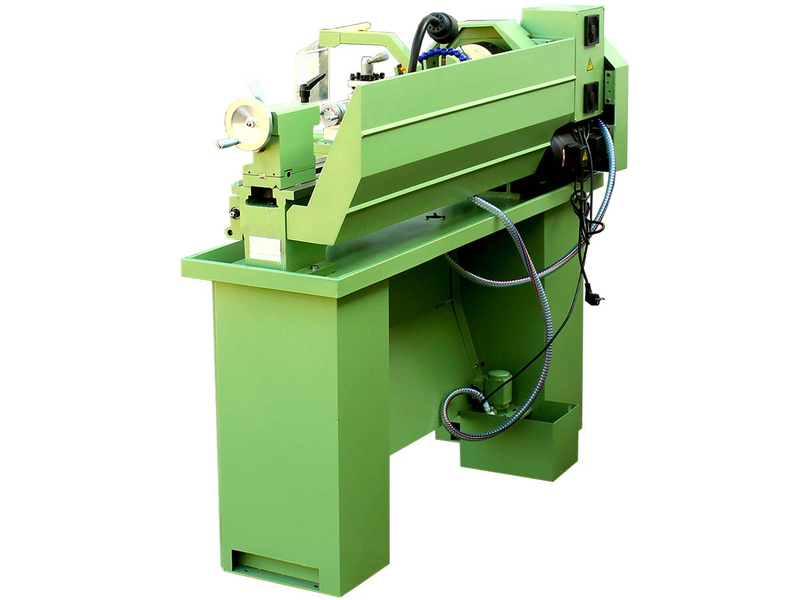

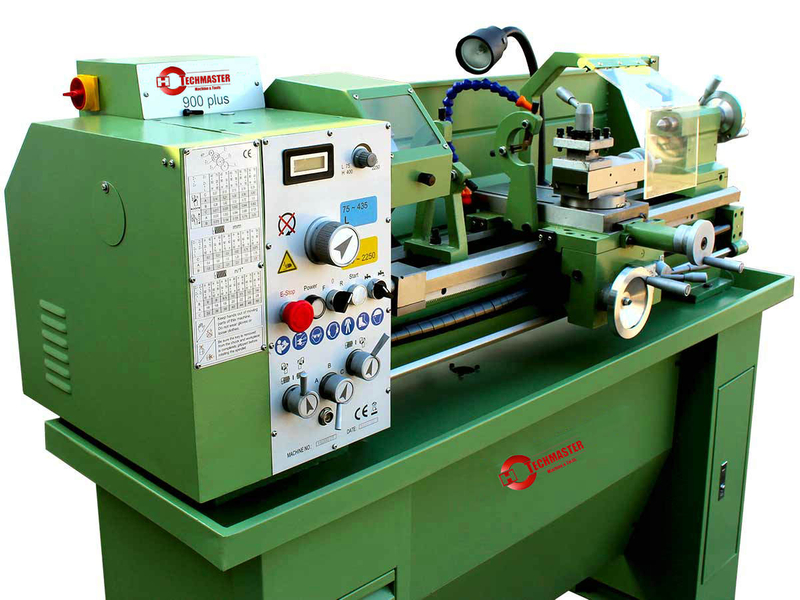

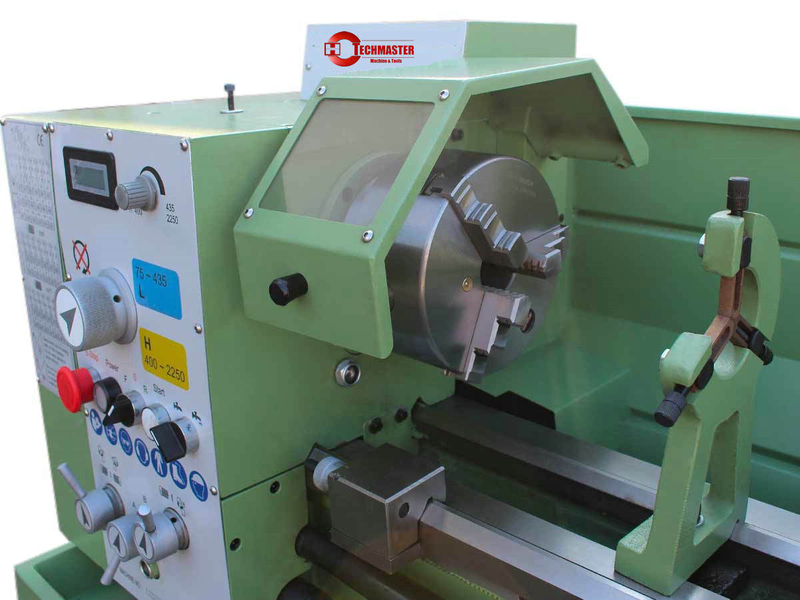

The Vario lathe features a reduction gear as standard, which eliminates the need to change speed step using V-belt. Another feature of this machine is the standard frequency inverter, resulting in high torque in the lower speed range and the nearly constant speed at heavy workloads.
Complete with 38 mm spindle bore to allow processing of large shaft diameters
Strongly reinforced machine bed featuring induction-hardened, polished guide
Suitable for processing of steel, non-ferrous metals and plastics
Universal in use: longitudinal turning, facing, profiling, thread cutting etc.
Change gears for cutting of metric threads are part of the standard accessories
Main spindle features adjustable tapered roller bearings in P5 quality
User-friendly arrangement of control elements on gear head
Tailstock features single-lever clamping, adjustable for taper turning
V-ledges allow for adjustment of bed way guides
Serially with Delta frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads
Distance between centers
880 mm
Center height
160 mm
Swing over bed
320 mm
Spindle bore
38 mm
Taper at spindle bore
DIN 55029, D1-4
Speed range, stepless
75 – 435 / 400 – 2250 rpm
Longitudinal feed
(15) 0,07 – 1,0 mm/rev.
Cross feed
(15) 0,017 – 0,25 mm/rev.
Metric thread
(18) 0,2 – 3,5 mm
Inch thread
(21) 8 – 56 threads/1“
Travel of tailstock sleeve
100 mm
Taper of tailstock sleeve
MT 3
Motor power output S1 100%
1,5 KW / 230 V
Motor power input S6 40%
2,2 kW / 230 V
Machine dimension (W x D x H)*
1660 x 650 x 570 mm
Weight approx.
255 kg
Standard accessories
3-jaw chuck DK11-160 mm / D4
Dead centers
Change gears
4-way tool post holder
Safety clutch
Micrometer longitudinal fence
Cross slide with top support
Frequency inverter
Digital speed indication
Thread dial
LED machine light
Chuck guard
Splash guard
Leadscrew cover
Tools
