TGK-4235 double column horizontal band saw

You are here: Home » Products » SAWS » DOUBLE COLUMN BANDSAW » TGK-4235 double column horizontal band saw

Share to:

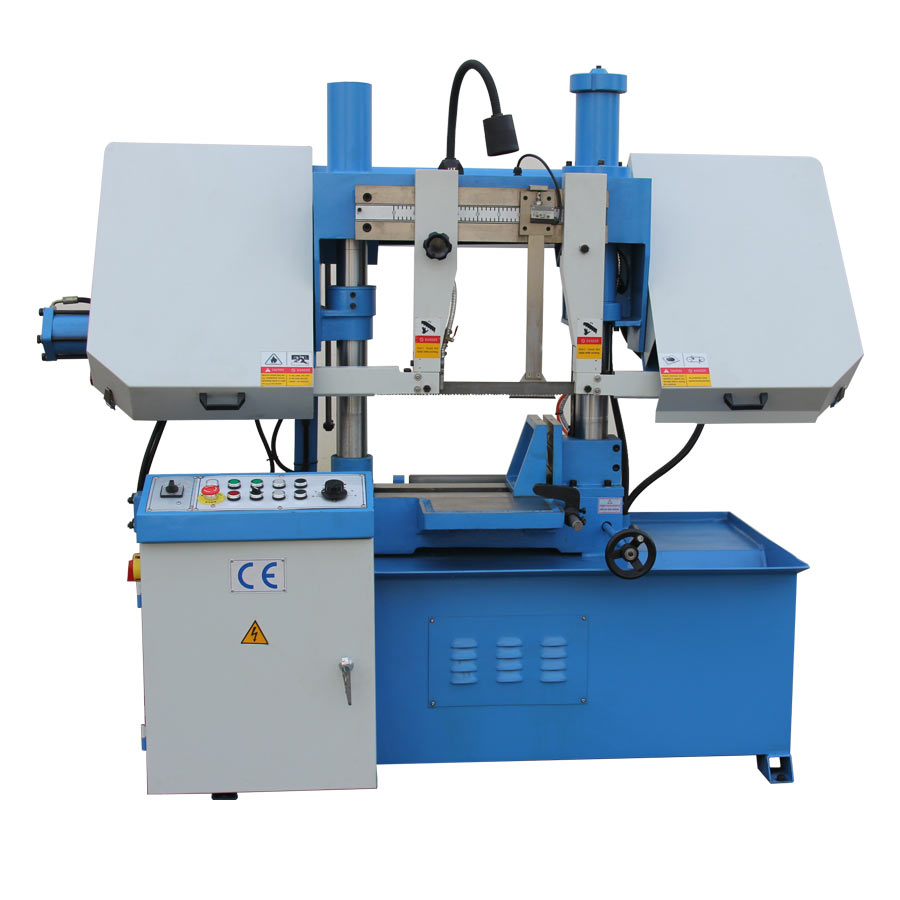

TGK-4235 double column horizontal band saw

Quantity:




Inquire Add to Basket

Model:
TGK-4235

Product Description

Features:

1. Double column structure, vertical lifting, high stability.
2. Cutting speed adopts hydraulic control, variable speed.
3. Hydraulic clamping, easy for operation.
4. Hydraulic clamping system with three positions. (Optional)

Specification:

Model	TGK-4235
Max. cutting capacity	350-350x350mm
Cutting speed	45,69 m/min
Feed speed	Hydraulic variable speed
Blade size	4115x41x1.1 mm
Workpiece clamping	Hydraulic
Blade tensioning	Hydraulic
Main motor power	2.2/2.8 kW
Oil pump motor power	0.55 kW
Coolant pump motor power	0.04 kW
Drive	Gear
Overall dimension	2140x1150x1730mm
G.W./N.W.	940/755 kg

Accessories:

Standard accessories:
Blade,
Hand wheel for manual feed,
Feed driving roller,
Hydraulic blade extension
Optional accessories:
Hydraulic clamping system with three positions
