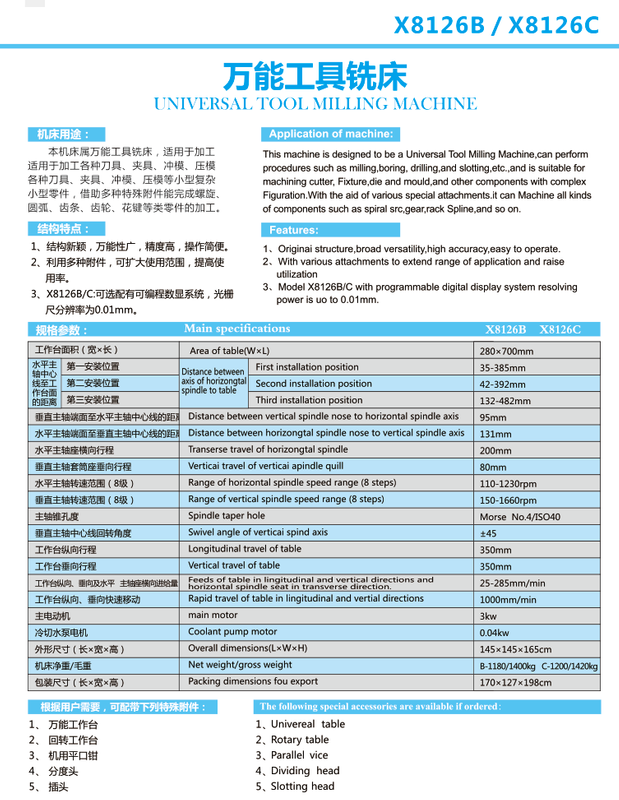

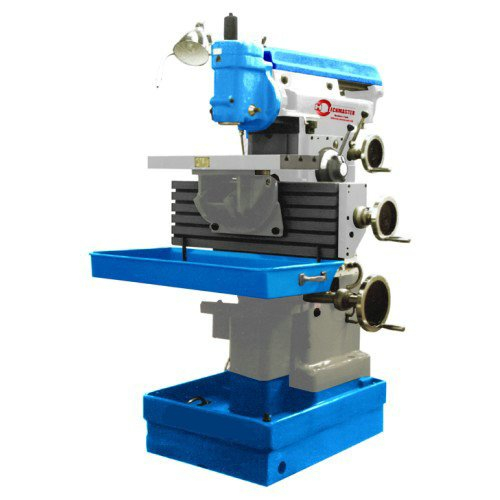

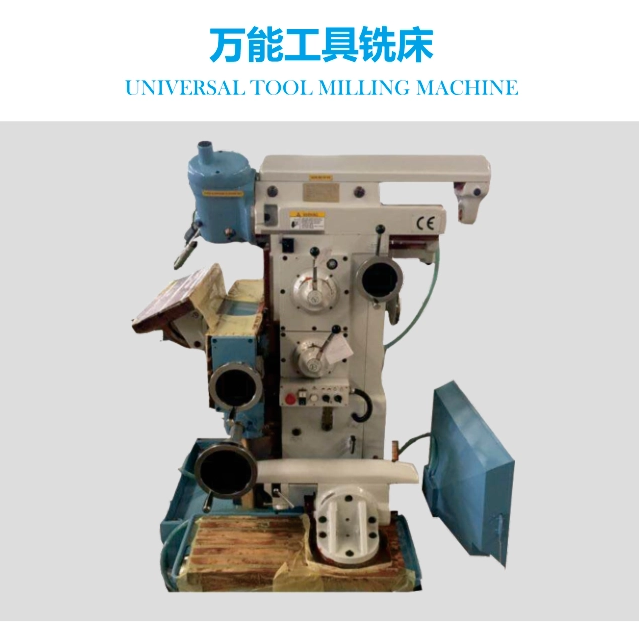

SpeciXficationsX | ||
Table size | 280 x 700 mm | |
Distance between axis of horizongtal spindle to table | First installing position | 35~385 mm |
Second installing position | 42~392 mm | |
Third installing position | 132~482 mm | |
Distance between vertical spindle nose to horizontal spindle axis | 95 mm | |
Distance between horizontal spindle nose to vertical spindle axis | 131 mm | |
Transverse travel of horizontal spindle | 200 mm | |
Vertical travel of vertical spindle quill | 80 mm | |
Range of horizontal spindle speeds (8 steps) | 110-1230 rpm | |
Range of vertical spindle speeds (8 steps) | 150-1660 rpm | |
Spindle hole taper | IS040 / Morse No. 4 | |
Swivel angle of vertical spindle axis | ±45° | |
Longitudinal travel of table | 350 mm | |
Vertical travel of table | 350 mm | |
Feeds of table in longitudinal and vertical directions and horizontal spindle seal in transverse direction | 25-285 mm/min. | |
Rapid feed of table in longitudinal and vertial directions | 1000 mm/min. | |
Main motor | 3 kW | |
Coolant pump motor | 0.04 kW | |
Overall dimensions | 1450 x 1450 x 1650 mm | |
Net weight | 1180/1410 kg |
Optional Accessories |
Universal table |
Parallel vice |
Slotting head |
Rotary table |
Dividing head |
