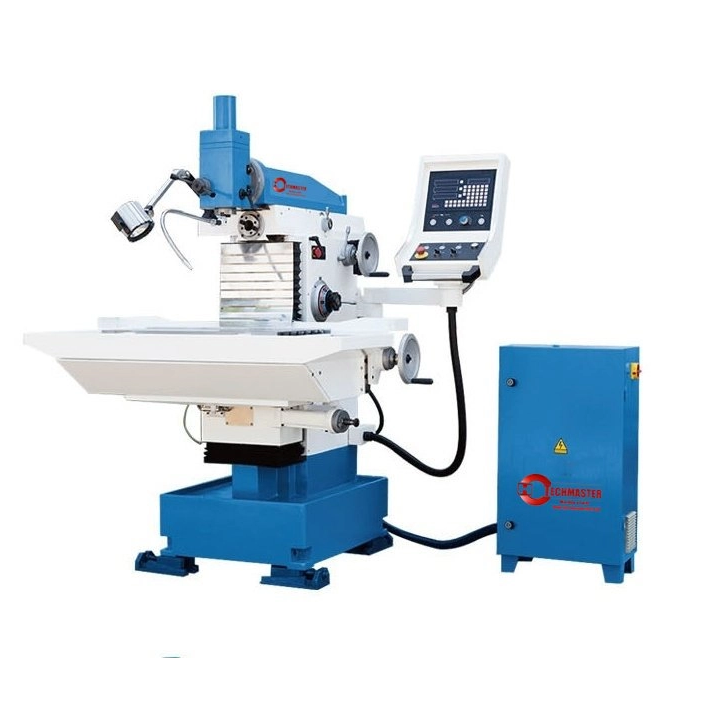

X8140 universal tool milling machine is a versatile machine,extensively used for metal cutting manufacturer in different mechanical industries. It is particularly suitable for half-finished and precision-machined manufacturing of machine parts,which has complicated shapes. It has a great advantage for manufacturing middle and small parts to use this machine tool.
| X8140C WD | |
Horizontal working surface | 400x800mm | |
T slot no./width/distance | 6 /14mm /63mm | |
Vertical working surface | 250x1200mm | |
T slot no./width/distance | 3/14mm /63mm | |
Max. longitudinal (X) travel of working table | 600mm | |
Max.cross travel (Y) of horizontal spindle slide | 400mm | |
Max. vertical travel (Z) of working table | 300mm | |
Distance from horizontal spindle center to surface of horizontal working table | Min. | 158mm |
Max. | 548mm | |
Distance from vertical spindle nose to surface of horizontal working table | Min. | 118mm |
Max. | 518mm | |
Distance from axis of vertical spindle to bed guideway (Max.) | 565mm | |
Range of spindle speeds (18steps) | 40-2000r/min | |
spindle taper bore | ISO40 7:24 | |
Range of longitudinal(X),cross(Y) and vertical (Z) traverse | 5-500mm/min (stepless) | |
Rapid feed of longitudinal(X),cross(Y) and vertical (Z) traverse | 1200mm/min | |
Travel of vertical spindle quill | 80mm | |
Main drive motor power | 3kw | |
Total power of motor | 5kw | |
Overall dimension | 1740x1540x2012mm | |
Net weight | 1300kgs | |
