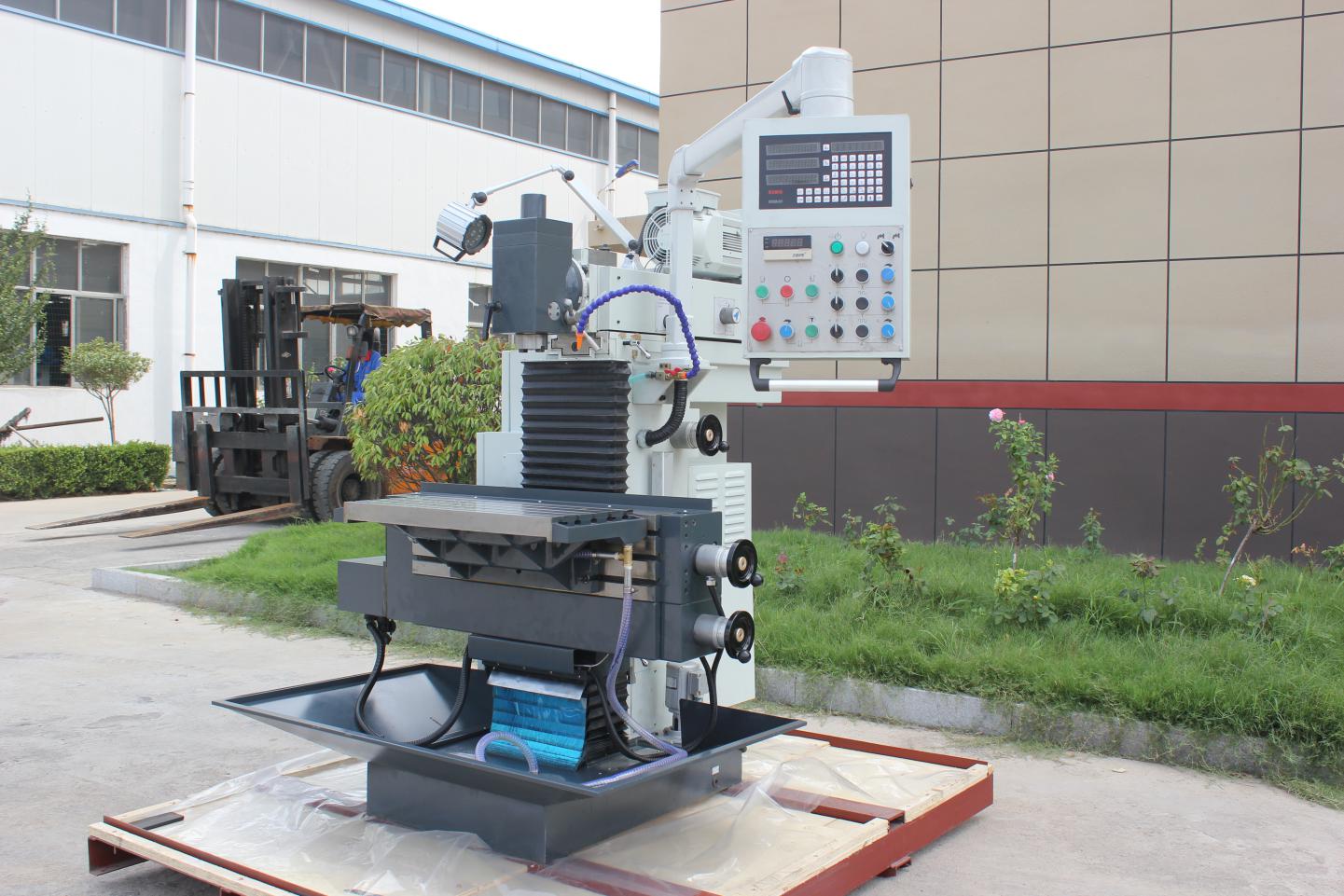

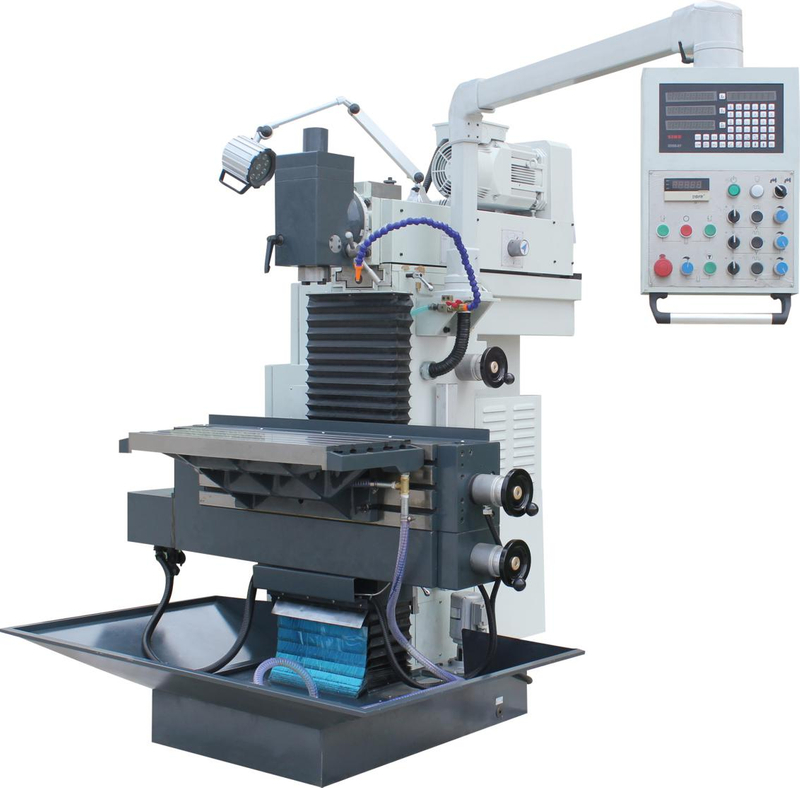

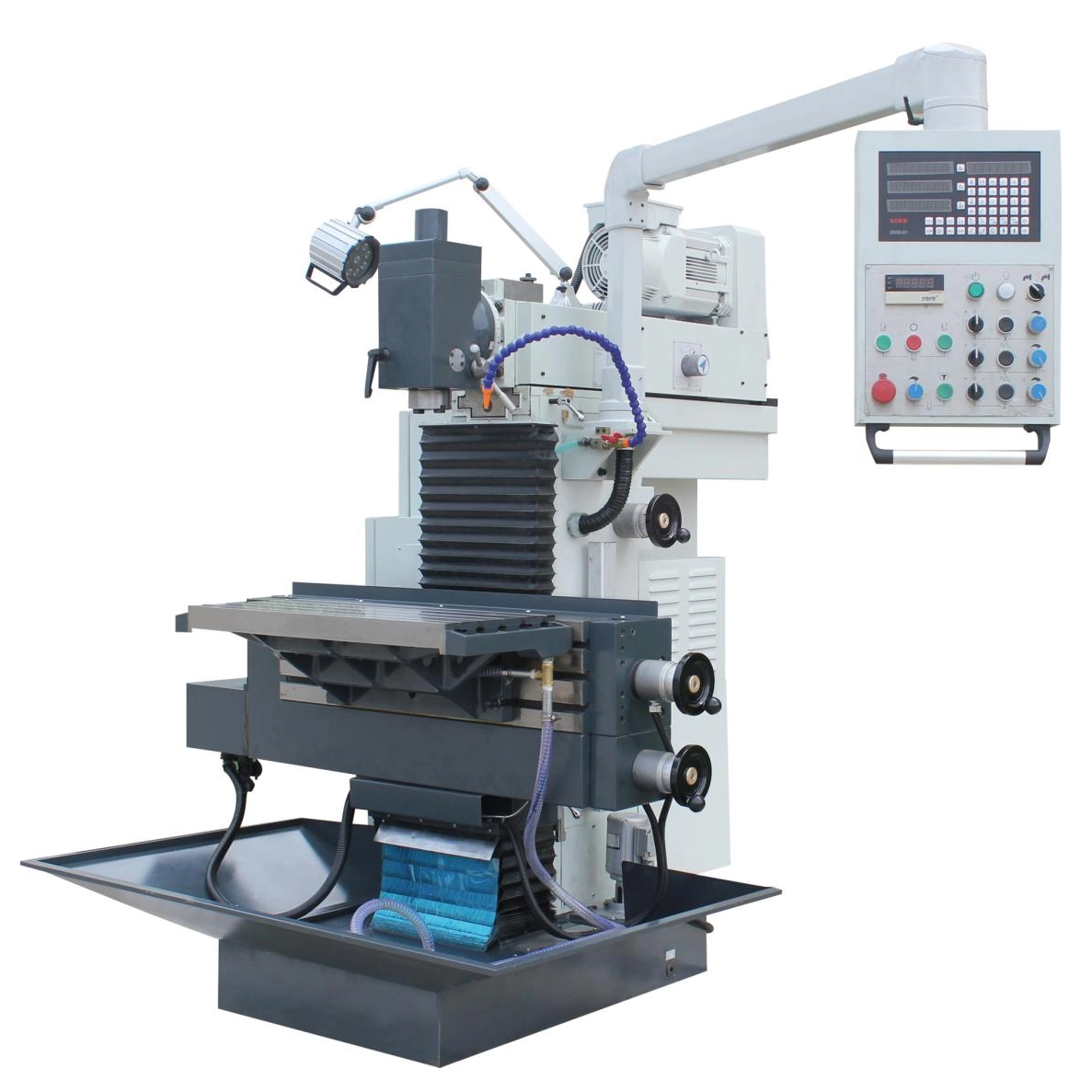

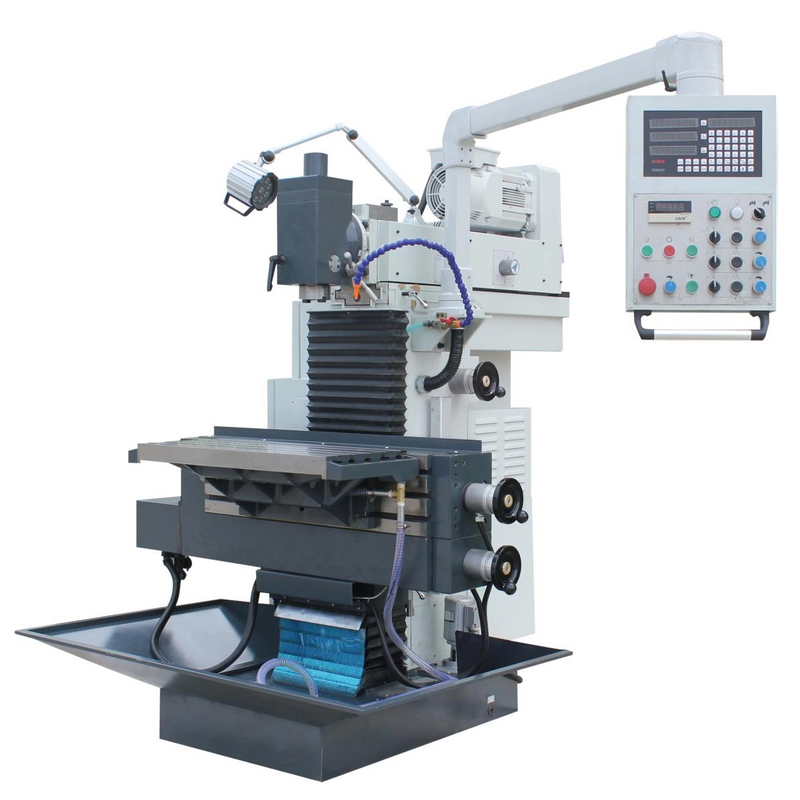

TOOL MILLING MACHINE XL8145

Availability:
Quantity:
  • XL8145



1.Machine Features



A、 Ball screws and servo motors adopted on X Y Z 3-axis for easy and precise feeds

B、 Infinitely variable vertical cutting head with a swivel ±90°and the spindle controlled by variable frequency motor.

C、 Electronic handwheel adopted on X Y Z 3-axis ,easy operating

D、 Automatic oil lubrication, cooling system,Chip collector tray,CE Schneider Electric are standard.



2. Machine Specifications

specification

unit

XL8132

XL8140

XL8145

Work space dimensions

Mm

750*320

800*400

850*450

Vertical table dimensions

Mm

890*225

1020*225

1190*250

T-slots,work table

Mm

(5)14*63

(6)14*63

(7)14*63

T-slots,vertical table

Mm

(3)14*63

(3)14*63

(3)14*63

Table load capacity

Kg

160

200

300

travels

Longitudinal(X)

Mm

405

500

600

Transverse(Y)

Mm

305

400

450

Vertical(Z)

Mm

400

400

450

Speed range

Rpm

(2)40-2000

(2)40-2000

(2)40-2000

Spindle mount


NT40

NT40

NT40

Feeds X Y Z  axis

Mm/min

10-1000

10-1000

10-1000

Rapid feed

Mm/min

1200

1200

1200

Quill stroke

Mm

60

60

60

Main motor rating

KW

3.7

3.7

5.5

Feed motor rating

N.M

X:7.7

Y:7.7

Z:10

X:7.7

Y:7.7

Z:10

X:10

Y:10

Z:15

Dimensions (L*W*H)

Mm

1500*1700*1800

1500*1700*1800

1600*1800*2000

weight

Kg

1450

1550

1750

3.Standard Equipment

Standard Equipment

specification

Automatic oil lubrication


CE Schneider Electric


Electronic handwheel


Milling Arbors

Φ-16,22,27,32mm

Reducing sleeves

MT1,2,3

Collet chuck with collets

8pcs

Draw bar


Coolant system


Chip collector tray


Oscillation elements


Outer arbor support for horizontal milling


Work lamp


Operating instructions
