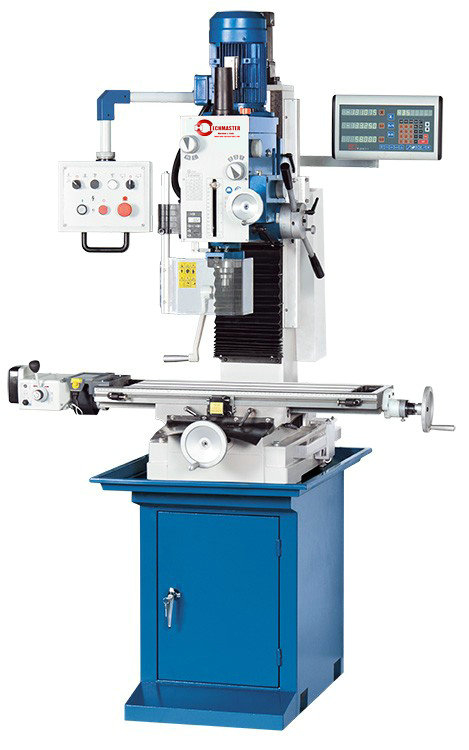

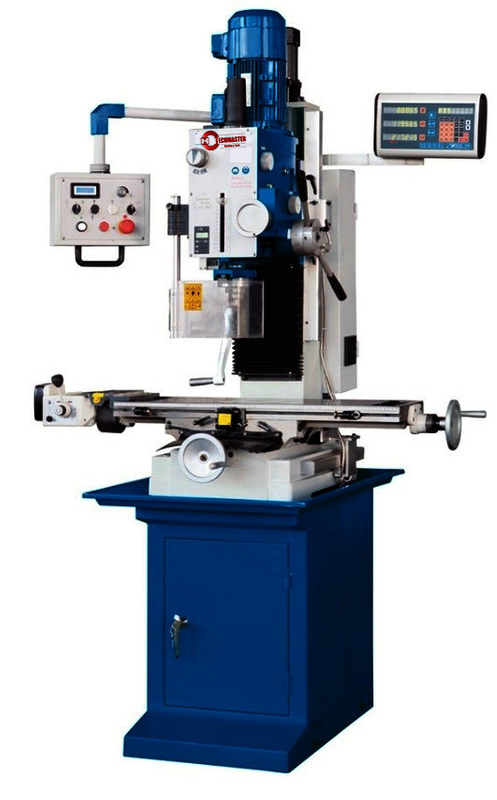

TOP DRILLING AND MILLING MACHINE ZX45 SUPER
You are here: Home » Products » MILLING » MILLING DRILLING MACHINE » PROFESSIONAL MILLING / DRILLING » TOP DRILLING AND MILLING MACHINE ZX45 SUPER
Share to:

TOP DRILLING AND MILLING MACHINE ZX45 SUPER

Quantity:
  • ZX45 SUPER
  • Premium cast-iron machine frame with adjustable dovetail guides on all axes

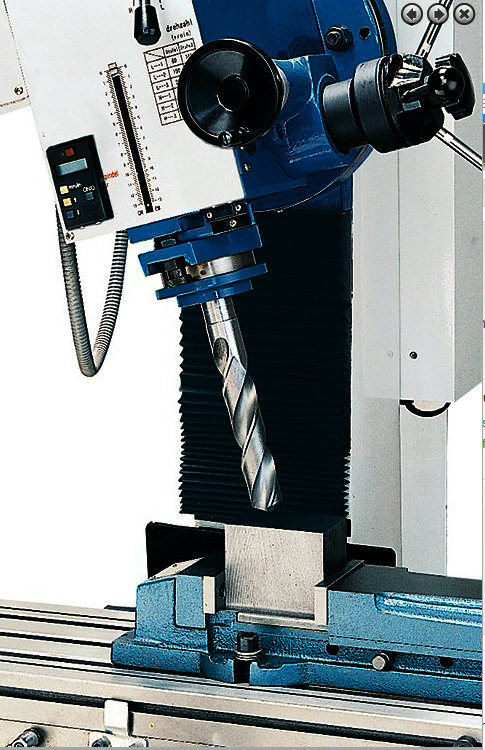

  • -Motorized cutter head movement and hand-wheel for exact positioning of head
  • -Automatic quill feed with 3 gear steps
  • -Hand-wheel for quill micro-feed
  • -Digital depth indicator for quill travel
  • -Tapping unit with adjustable rotation reversal for thread cutting
  • -Hardened gear racks and shafts for quiet operation and long life
  • -Rigid base with storage room is included
  • -Infinitely variable feed on X is included

3-axis position indicator

  • -more accuracy
  • -lower error rate
  • -increased productivity
  • -resulting in valuable time savings
  • -for increased productivity
  • -easy to read display
  • -operator-specific features
  • -convenient keyboard layout
  • -resolution: 0.01/ 0.005 mm
  • -default coordinates
  • -axis position is maintained when display is turned off
  • -hole circle pattern calculation
  • -calculator function
  • -storage for 10 tools
  • -radius / diameter toggle
  • -mm/inch conversion
  • -easy expansion and maintenance-free operation

Technical Data

Working area
Table dimensions
Drilling capacity
Guide width
Shaft milling
Head elevation
Speed


800x240 mm
32 mm
190 mm
28 mm
350 mm
(12) 75 - 3.200 rpm

Travels
Travel X-axis
Travel Y-axis


560 mm
190 mm

Vertical milling head
Spindle mount
Quill stroke
Quill diameter
Spindle nose-to-table distance
Throat
Head swivel range


MK 4 / MT 4
120 mm
75 mm
460 mm
258 mm
± 45°

Drive capacity
Motor rating
Supply voltage


1,5/1,1 kW / 2/1.5 Hp
400 V

Measures and weights
Overall dimensions
Weight


1.250x950x1.420 mm
380 kg
