TOP QUALITY ENGINE LATHE GH1440K
You are here: Home » Products » TURNING » PROFESSIONAL ENGINE LATHE » TOP QUALITY ENGINE LATHE GH1440K
Share to:

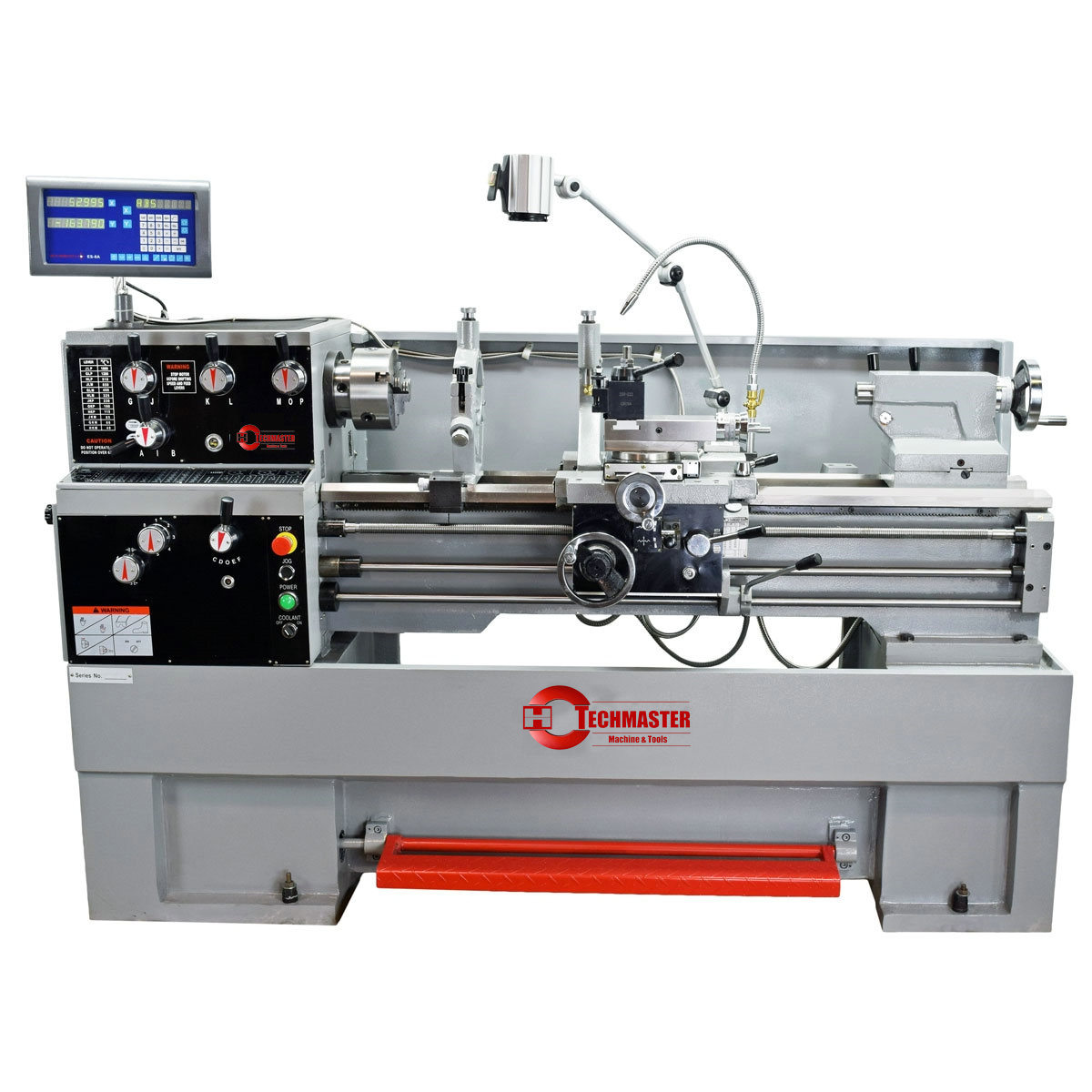

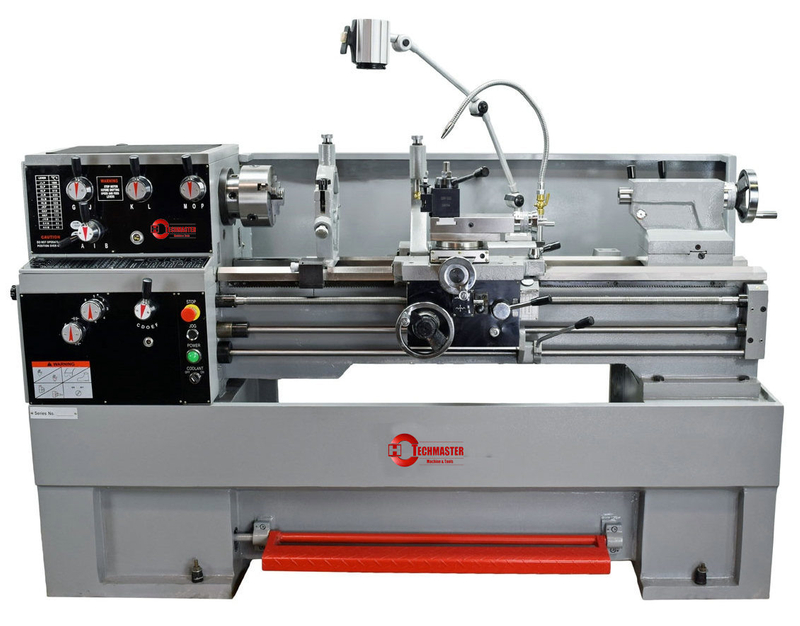

TOP QUALITY ENGINE LATHE GH1440K

Quantity:
  • GH1440K

Main Features Of This Machine:

  • Heavy Duty Lathe, Almost 3000 pounds
  • Available in either Single or 3 Phase power, to match the user's needs
  • Priced very, very reasonably when compared with other similar models
  • Precision, Hardened and Ground gears throughout headstock, which leads to longer life
  • Leadscrews Are True Inch Pitch Screws (Not Metric Conversions Like Many), 10 Threads Per Inch (.100" Per Turn), and 8 TPI on the mail leadscrew for threading
  • Backed by an industry leading 3 year warranty
  • Available With or Without DRO Installed

Lathe Standard Features and Equipment:
• Available in Single or 3 Phase power, to suit the buyer's needs (choose with drop down above)
• Spindle Bore 1 9/16"
• Heavy Duty Cam lock Spindle D1-4
• Heavy Duty Guideway Width 10-1/4"
• Heavy Duty cast Iron Base
• Heavy Duty Main Motor, 3HP
• 12 Spindle Speeds from 40-1800 RPM (Lever change only, no belts to change)
• Machine Cuts Wide Range of Inch Threads and Metric Threads with minimal changes gears
• Spindle is Balanced, Hardened and Precision Ground
• Spindle is Supported by High Precision Tapered Roller Bearings
• All Gears and Shafts are Hardened and Precision Ground
• Guideways Induction Hardened and Precision Ground
• Oil Bath Lubrication System in Headstock and Feed Box
• Machine Made with true Inch Leadscrews , 8TPI Main Feed Screw, 10 TPI (.100" per
turn) Pitch Cross and Compound Feed Screws with Inch and Metric Dials
• 3 Year Warranty

Lathe Package, Includes:

• Wedge Type Quick Change Tool Post Set, with 5 holders
• 6" 3 Jaw Chuck
• 8" 4 Jaw Chuck
• 11" Face Plate
• D1-4 Camlock Spindle Mount
• Work Light
• Coolant System
• Steady Rest
• Follow Rest
• Foot Brake
• Complete Heavy Cast Iron Base with Chip Tray
• Leveling Pad Set
• High Precision Spindle Bearings
• Back Splash Guard
• Reducing Sleeve for Headstock Center
• Headstock Dead Center
• Tail Stock Dead Center
• Thread Chasing Dial (4" Travel Thread Dial, for easier inch thread cutting)
• Feed Rod Clutch (To prevent overloading and using carriage stops)
• Everything Needed for listed Inch and Metric Thread Pitches
• 3 Year Warranty


Main Specifications INCH system :

Max. Swing Over Bed 14"
Max. Length of Work Piece 40"
Max. Swing Over Cross Slide 8-1/2"
Max. Swing in Gap 20"
Width of Bed 10-1/2"
Spindle Bore 1- 9/16" , D1-4
Taper of Spindle Center M.T.# 5
Spindle Speeds 40-1800 rpm / 12 steps
Longitudinal Feeds 0.0012-0.0294 IPR, 40 kinds
Cross Feeds 0.0004-0.0103 IPR, 40 kinds
Inch Threads 4 - 112 TPI
Metric Threads 0.45-7.5 mm
Max. Travel of Top Slide 3-1/2"
Max. Travel of Cross Slide 6-1/2"
Diameter of Tailstock Quill 1 3/4"
Max. Travel of Tailstock Quill 4-3/4 "
Taper of Tailstock Quill Center M.T. # 3
Lead Screw Pitch 8 TPI
Main Motor 3 HP, 220V, Single Phase, OR 3HP, 220V 3 Phase, Buyer's Choice
Coolant Pump Motor 1/8 HP, 220V
Net Weight, approx. 2750 LBS
Overall Dimensions, LxWxH 74" x 30" x 50"


Specifications                                                                        Metric system
Distance between centers 1000 mm
Swing over bed 356 mm
Swing over gap 506 mm
Swing over cross slide 210 mm
Bed width 260 mm
Taper of spindle bore MT5
Spindle nose D1- 4
Spindle bore 40 mm

Step of spindle speeds

12
Range of spindle speeds 40~1800 rpm
Range of cross feeds 0.024~0.359 mm/r
Range of longitudinal feeds 0.043~0.653 mm/r
Range of inch threads 4~56 T.P.I
Range of metric threads 0.4~7 mm
Top slide travel 92 mm
Cross slide travel 185 mm
Tailstock quill travel 120 mm
Taper of tailstock quill MT3
Main motor 2.4 kw
Packing size

1990 x 760 x 1450 mm

Net weight 996 kg
Standard Accessories Optional Accessories
3-jaw chuck (160mm) Quick change tool post
4-jaw chuck (200mm) Turning tools
Face plate (250mm) Leadscrew cover
Steady rest Chuck guard
Follow rest Tool post cover
Splash guard Digital readout system
Stand & oil tray Taper turning attachment
Micro carriage stop Collet attachment
Halogen work lamp
Toolbox & tools
Coolant system
Foot brake
