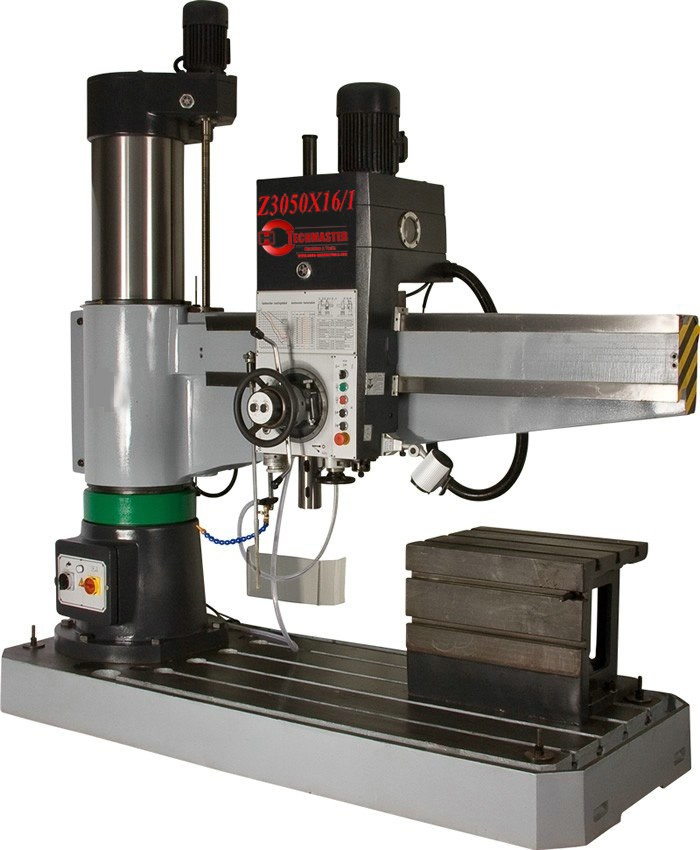

TOP Z3050X16/1
Quantity: Radial drill range are unbeatable in price and performance, the machines are used for drilling, reaming and tapping. The drill's frame is made from a high-quality fine-grain cast iron with heavy ribbing to ensure maximum reduction of vibrations. Precision ground gears ensure that the machine runs quietly, and the practical layout of the electrical and mechanical controls at the headstock make for easy operation. The machines are also fitted with a motorized arm height adjustment and mechanical clamping for the head, column and arm. Hardened and ground guide way for smooth movement of the head.
- hardly any vibration
- hydraulic mechanic clamping
- large work table
- automatic feed
- halogen machine light
- integrated cooling system
Motor power 4 kW Spindle taper MT5 Spindle speed range 25 - 2000 rpm Drilling capacity 50 mm Tapping capacity M30 Number of speeds 16 Distance spindle-column 350-1600 mm Drilling depth 315 mm Column diameter 350 mm Coolant pump 0,09 kW Max. distance spindle table 1250 mm Table size 625 x 500 lxw T-slots 3 / 22 Feed range 0,04-3,2 mm/r Net weight 3500 kg Voltage 400 V
Radial drill range are unbeatable in price and performance, the machines are used for drilling, reaming and tapping. The drill's frame is made from a high-quality fine-grain cast iron with heavy ribbing to ensure maximum reduction of vibrations. Precision ground gears ensure that the machine runs quietly, and the practical layout of the electrical and mechanical controls at the headstock make for easy operation. The machines are also fitted with a motorized arm height adjustment and mechanical clamping for the head, column and arm. Hardened and ground guide way for smooth movement of the head.
- hardly any vibration
- hydraulic mechanic clamping
- large work table
- automatic feed
- halogen machine light
- integrated cooling system
Motor power 4 kW Spindle taper MT5 Spindle speed range 25 - 2000 rpm Drilling capacity 50 mm Tapping capacity M30 Number of speeds 16 Distance spindle-column 350-1600 mm Drilling depth 315 mm Column diameter 350 mm Coolant pump 0,09 kW Max. distance spindle table 1250 mm Table size 625 x 500 lxw T-slots 3 / 22 Feed range 0,04-3,2 mm/r Net weight 3500 kg Voltage 400 V
