TPX2000
Quantity: Horizontal Milling Machines Description: Feature:

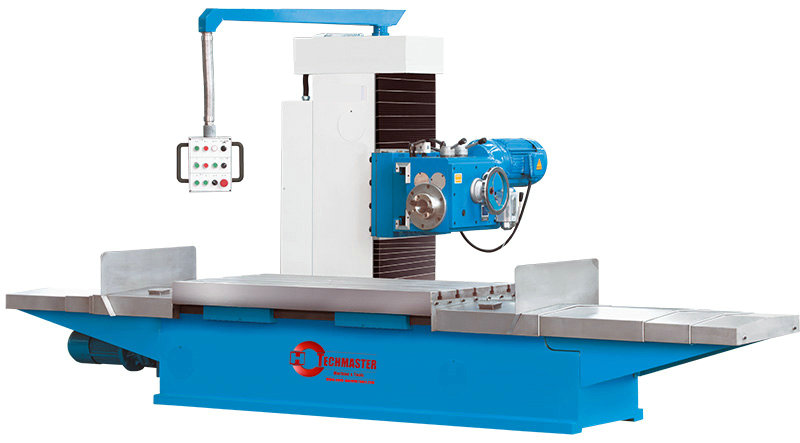

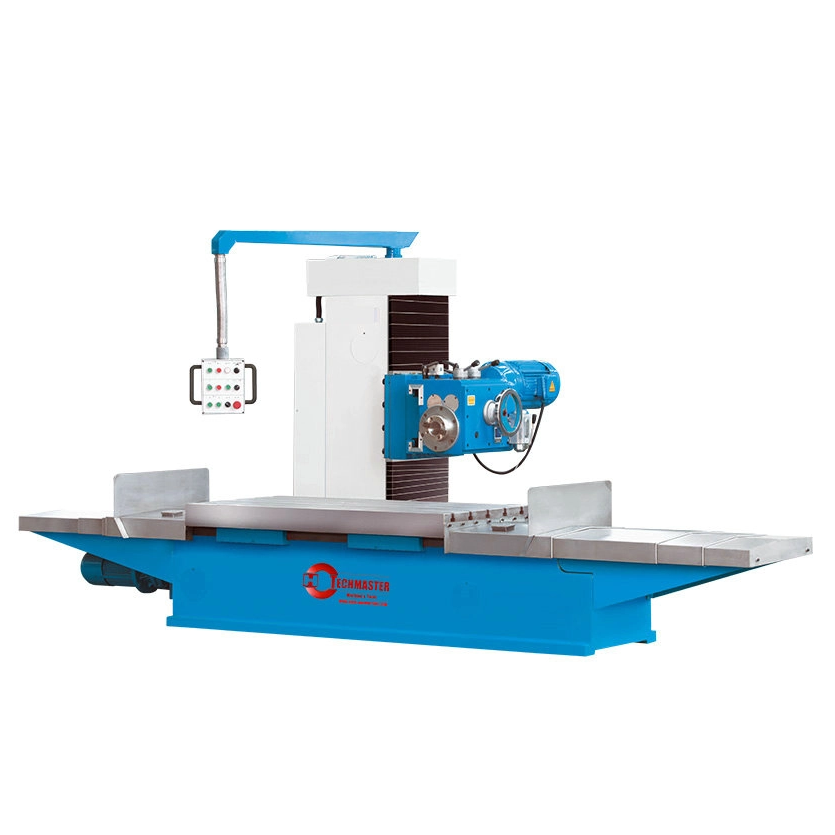

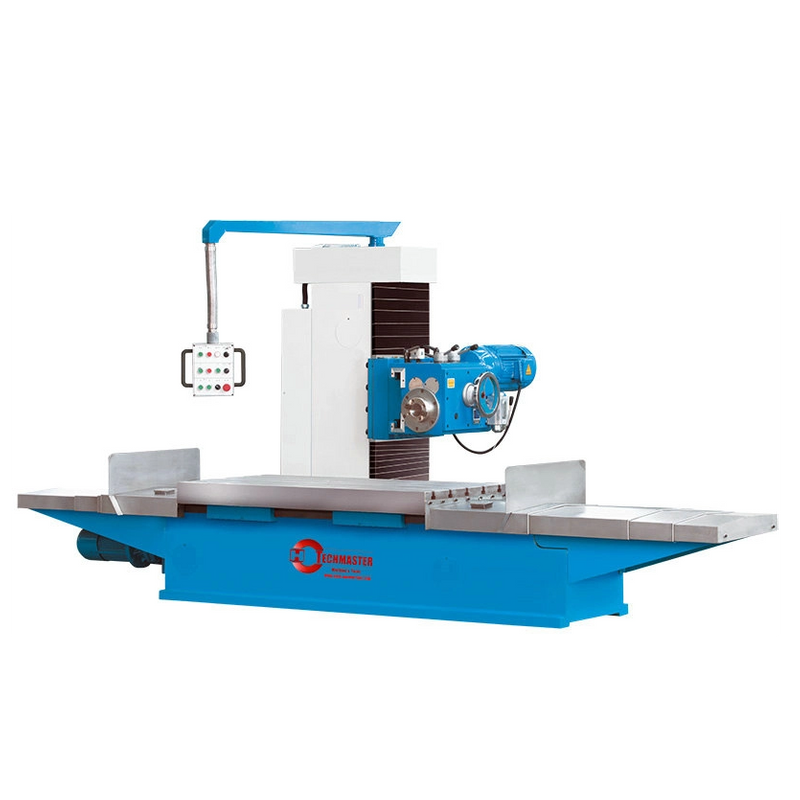

Heavy single-column horizontal milling machine with long travels and vertically swivelling head
machine bed, table and column structure, plus the heavy horizontal cutter head are made of premium cast-iron with heavy ribbing and superior rigidity to guarantee maximum stability even at long travel distances
the custom machine frame construction supports the table without console directly on the machine bed across the entire travel distance and allows high workpiece weights with unaffected constant accuracy
robust, rigid guideways ensure precision and durability and are supplied with oil by the fully automated central lubrication unit
infinitely variable automatic linear feed
6-step headstock gear, easy to shift, with hardened and ground gears and shafts
cutter head swivels 35° on the vertical axis
including telescoping cover on X protect spindle and spindle nut from debris
the control panel is mounted on a long arm to give the user a wide radius of operationHorizontal Milling Machines TXP2000 TXP2000A TXP3000 TXP3000A working area travel X-axis 2000 mm 3000 mm travel Y-axis 750 mm 750 mm travel Z-axis 350 mm 350 mm table set up area 2000x630 mm 2000x800 mm 3000x630 mm 3000x800 mm table load capacity (max.) 1500 kg 2000 kg number of T-slots 5 Pieces 5 Pieces T-slots, width 22 mm 22 mm T-slots, spacing 120 mm 160 mm 120 mm 160 mm Spindle center-to-table distance 0 - 750 mm 0 - 750 mm feed rapid feed X-axis 1360 mm/min 1360 mm/min rapid feed Y-axis 280 mm/min 280 mm/min rapid feed Z-axis 1300 mm/min 2100 mm/min feed speed X-axis 0 - 1360 mm/min 0 - 1360 mm/min feed speed Z-axis 0 - 430 mm/min 0 - 430 mm/min horizontal milling head speed range 82 - 505 rpm 82 - 505 rpm spindle mount ISO 50 ISO 50 throat 330 mm 330 mm head swivel range ± 35° ± 35° drive capacity motor rating main drive 7,5 kW 7,5 kW motor rating for X-axis drive 3 kW 4 kW motor rating for Y-axis drive 2,2 kW 2,2 kW motor rating for Z-axis drive 0,4 kW 0,4 kW measures and weights overall dimensions 5250x1850x2150 mm 5250x2060x2150 mm 6600x1850x2150 mm 6600x2060x2150 mm weight 3593 kg 3724 kg 5033 kg 6500 kg
