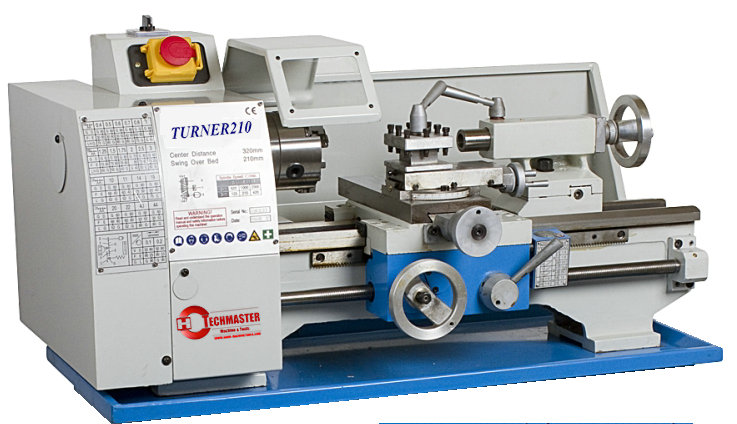

TURNER210V

　Distance between centers

400 mm

　Swing over bed

210 mm

　Swing over cross slide

110 mm

　Width of bed

100 mm

　Taper of spindle bore

MT3

　Spindle bore

21 mm

　Range of spindle speeds (steps)

50-2500 rpm

　Range of longitudinal feeds

0.08 - 0.16 mm

　Range of inch threads

10 - 44T.P.I

　Range of metric threads

0.5-3 mm

　Top slide travel

55 mm

　Cross slide travel

75 mm

　Tailstock quill travel

60 mm

　Taper of tailstock quill

MT2

　Main motor

450W

　Packing size

900x480x480 mm

　Net weight

75 kg
