TURNER250 X 550
Quantity: -

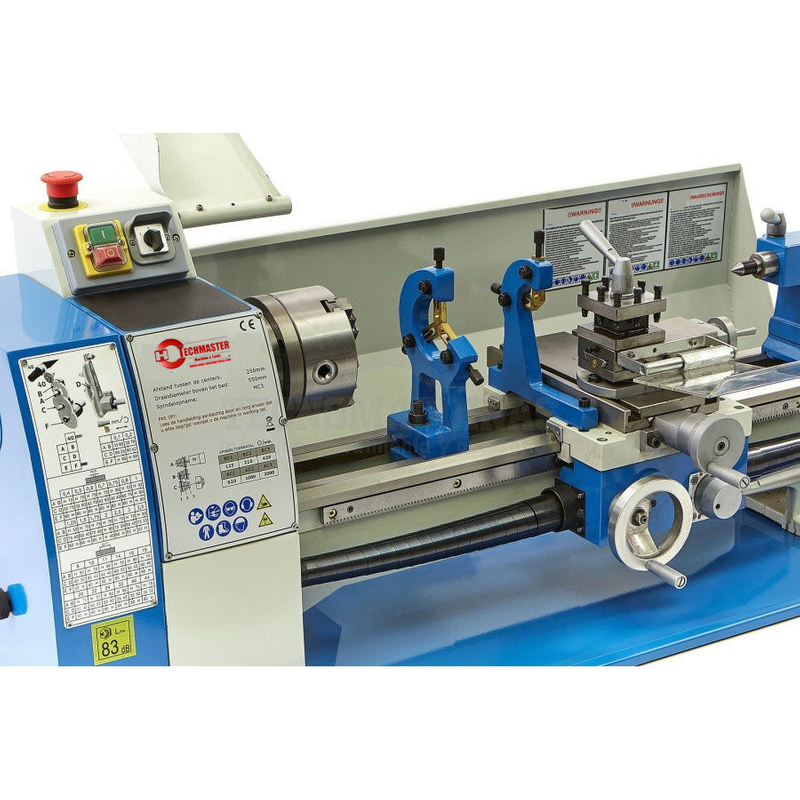

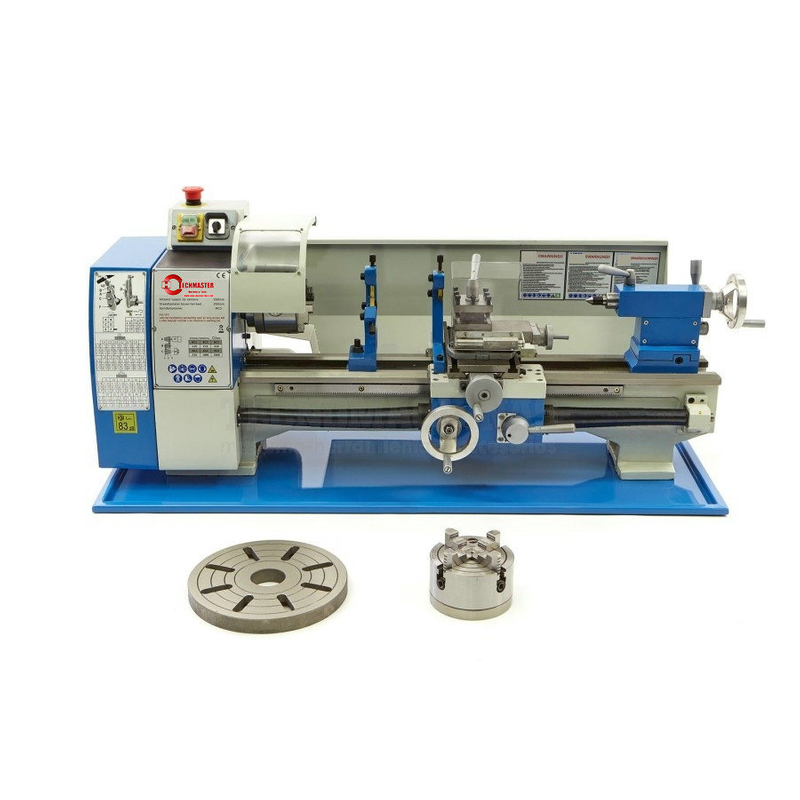

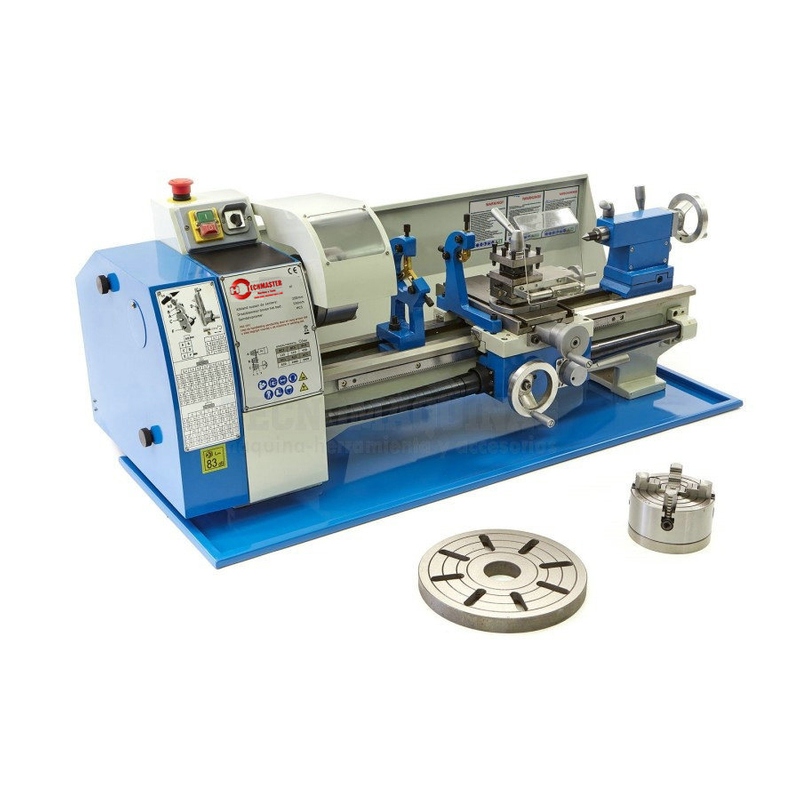

TURNER 250 X 550
Distance between centers 400mm （can be choose) 550mm Swing over bed 250mm 250mm Width of bed 135mm 135mm Spindle bore taper MT14 MT14 Spindle bore 26mm 26mm Range of spindle speed 125-2000 rpm/6 125-2000 rpm/stepless Range of longitudinal feeds 0.07-0.20mm/r 0.07-0.20mm/r Range of inch threads 8-56tpi 8-56tpi Range of metric threads 0.4-3.5mm 0.4-3.5mm Top slide travel 70mm 70mm Cross slide travel 115mm 115mm Tailstock quill travel 70mm 70mm Tailstock quill taper MT2 MT2 Motor power 850w 850w
Standard Accessories Optional Accessories • change gears kit • Faceplate • Dead centres • Follow/steady rest • Safety spindle cover • 4-jaw chuck & back plate • Quick change tool rest• Stand• Turning tools • Top rest cover • Leadscrew cover • tools and tool box • Treading dial Distance between centers 400mm （can be choose) 550mm Swing over bed 250mm 250mm Width of bed 135mm 135mm Spindle bore taper MT14 MT14 Spindle bore 26mm 26mm Range of spindle speed 125-2000 rpm/6 125-2000 rpm/stepless Range of longitudinal feeds 0.07-0.20mm/r 0.07-0.20mm/r Range of inch threads 8-56tpi 8-56tpi Range of metric threads 0.4-3.5mm 0.4-3.5mm Top slide travel 70mm 70mm Cross slide travel 115mm 115mm Tailstock quill travel 70mm 70mm Tailstock quill taper MT2 MT2 Motor power 850w 850w
Standard Accessories Optional Accessories • change gears kit • Faceplate • Dead centres • Follow/steady rest • Safety spindle cover • 4-jaw chuck & back plate • Quick change tool rest• Stand• Turning tools • Top rest cover • Leadscrew cover • tools and tool box • Treading dial
