TURRET UNIVERSAL MILLING MACHINE
Quantity: -

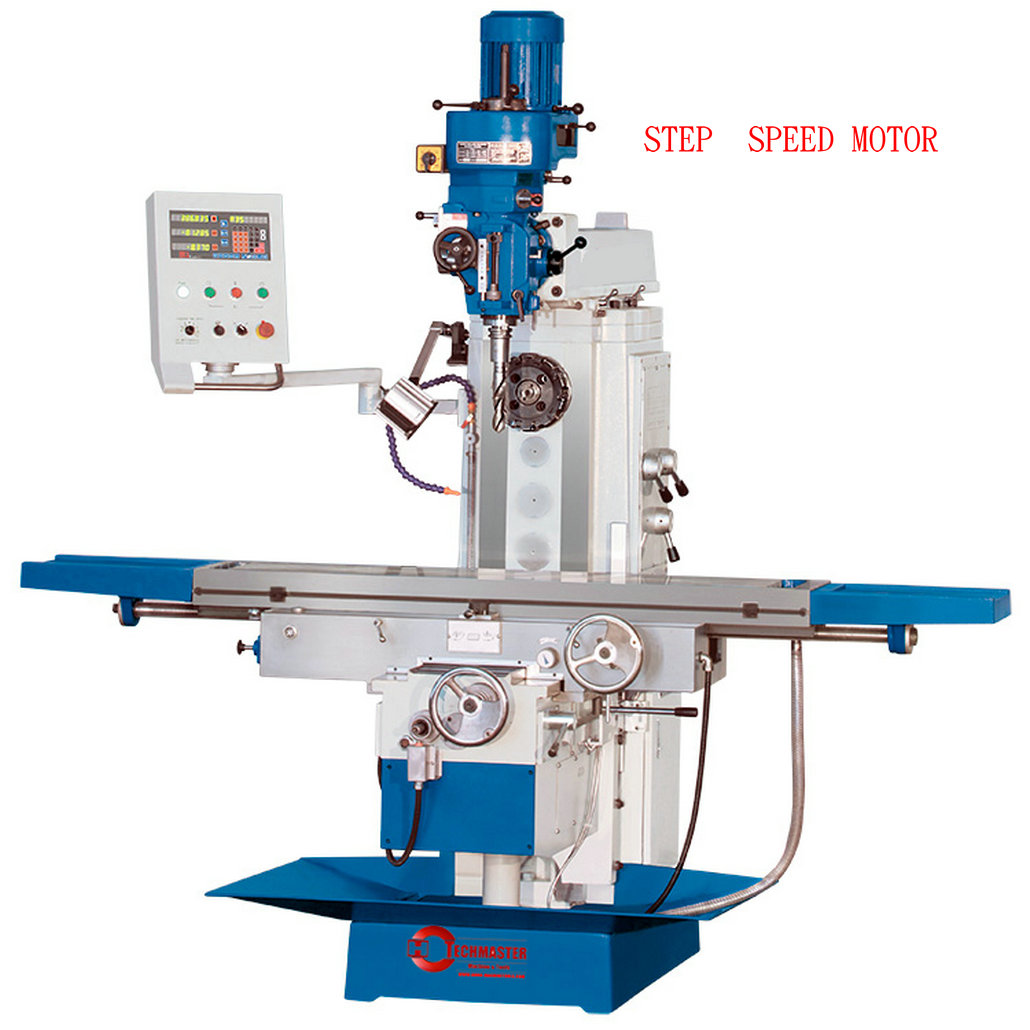

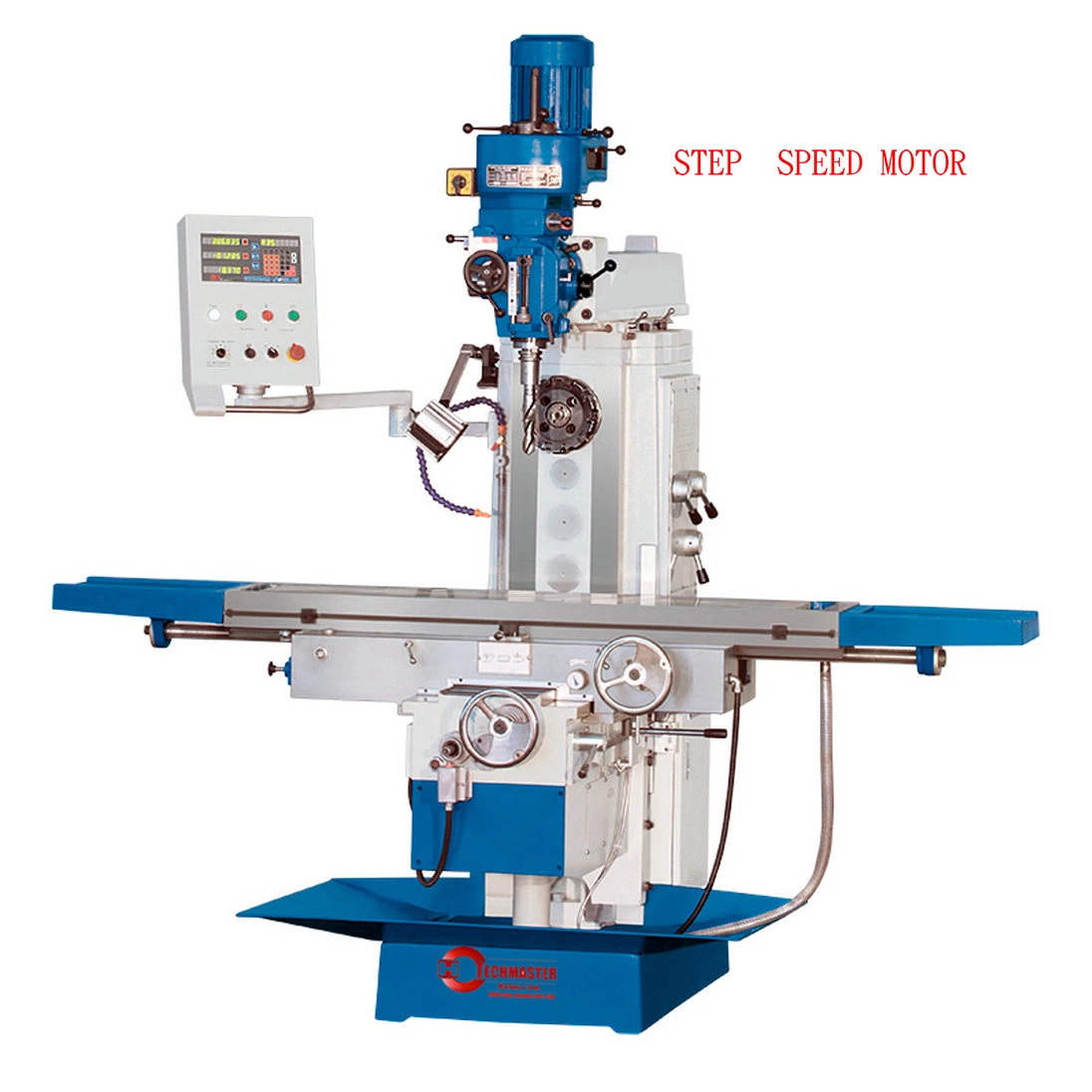

TURRET XL6332CL (UFM8)
SERVO MOTOR ,TORQUE, ENGERGYEFFICIENCY
X.Y.Z AXIS RAPID FEEDER
WORKATABLE X.Y.Z AXIS AUTOMATICA FEEDING
OPTIONAL :
DRO ,
ROTARY TABLE(45" DEGREE)
MILLING CHUCK
VICE
DIVIDING HEAD
Feature:
Universal Milling Machine
for Workshop and Production FacilitiesRigid frame design with wide guideways and travels
Hardened guideways ensure wear-resistance and long-term accuracy in all machining operations
Large work table
All gears are hardened and ground for quiet operation and long life
Swivelling vertical cutter head with low-maintenance belt drive, quiet and vibration-free
Automatic quill stroke featuring 3 steps and micrometer depth stop, plus automatic shut-off
Quill feed allows angular bores with tilted cutter head
Rigid boom and outer arbor support for secure and vibration-free guidance of milling arbors
High-torque servo-motor drives infinitely variable feeds and raid feeds on 3 axesXL6332CL /UFM 8 - Universal Milling Machine working area
travel X-axis 1300 mm travel Y-axis 320 mm travel Z-axis 450 mm top slide travel 550 mm table dimensions 1600x320 mm table load capacity (max.) 300 kg number of T-slots 3 Pieces T-slots, width 18 mm T-slots, spacing 70 mm feed
rapid feed X-axis 1200 mm/min rapid feed Y-axis 800 mm/min rapid feed Z-axis 600 mm/min feed speed X-axis 30 - 750 mm/min feed speed Y-axis 20 - 500 mm/min feed speed Z-axis 15 - 375 mm/min vertical milling head
speed range (16) 65 - 4660 rpm spindle mount ISO 40 quill stroke 127 mm spindle nose-to-table surface distance 200 - 650 mm horizontal milling head
speed range (12) 60 - 1800 rpm spindle mount ISO 50 horizontal spindle-to-table surface distance 20 - 470 mm spindle axis-to-table surface distance 245 mm drive capacity
motor rating horizontal spindle 5,5 kW motor rating vertical spindle 3,7 kW measures and weights
overall dimensions 2520x2100x2500 mm weight 2800 kg
