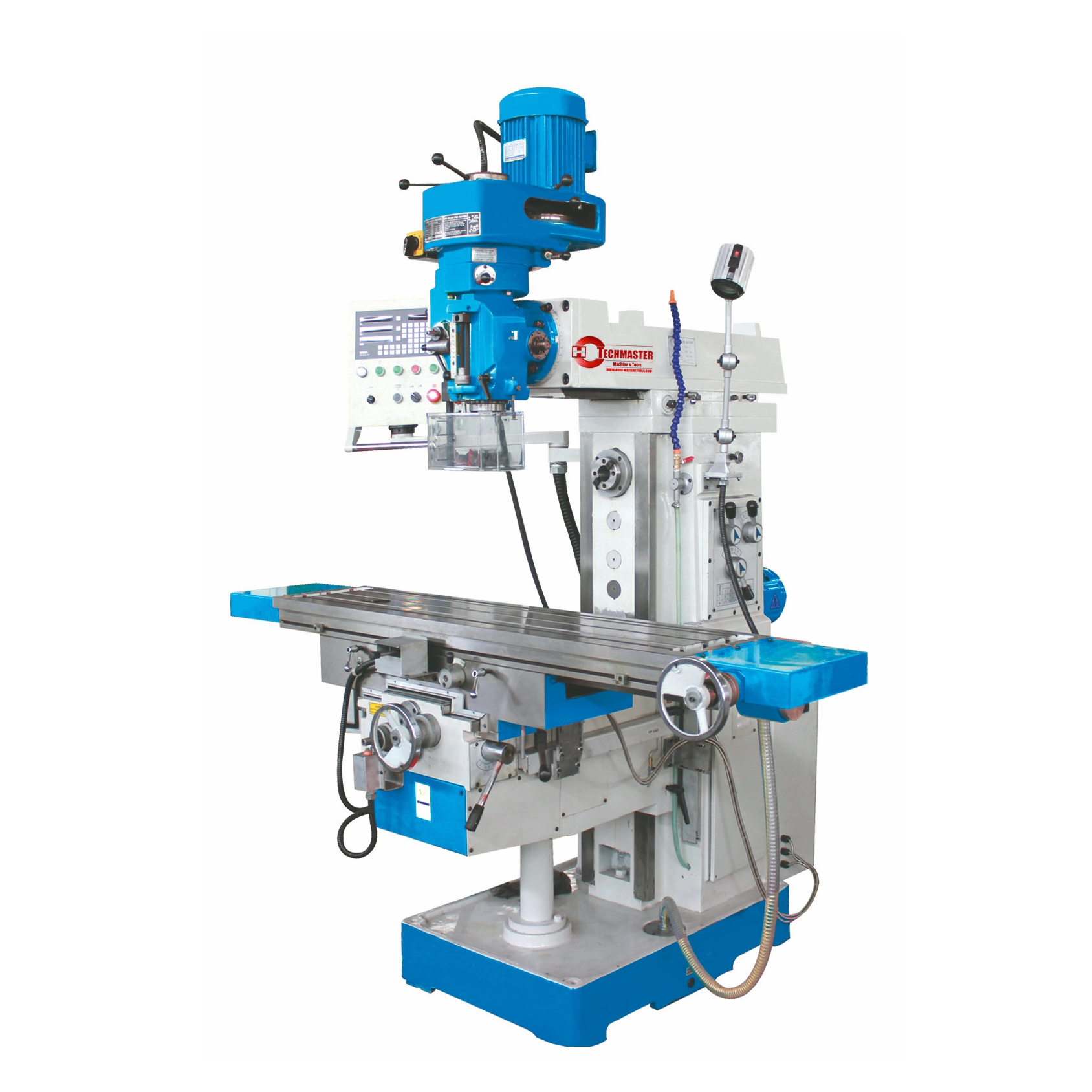

TURRET UNIVERSAL MILLING MACHINE
Quantity: -
TURRET XL6330 / XL6330A
SERVO MOTOR ,TORQUE, ENGERGYEFFICIENCY
X.Y.Z AXIS RAPID FEEDER
WORKATABLE X.Y.Z AXIS AUTOMATICA FEEDING
OPTIONAL :
DRO ,
ROTARY TABLE(45" DEGREE)
MILLING CHUCK
VICE
DIVIDING HEAD
Specifications Unit XL6330 XL6330A XL6330B XL6330C Table size mm 1270*300 1370*300 1270*300 1370*300 Table travel (X/Y/Z) mm 720/300
/400820/300
/400900/380
/4001000/380
/400Rapid speed of table (X/Y/Z) mm/min 1000/1000/750 Spindle taper --- 3HP: R8 or ISO30; 5HP: ISO40
IS040 Table feed (X/Y/Z) mm/min Variable Distance between horizontal
nose and table surfacemm 75-475 Distance between spindle axis
and ram surfacemm 200 Spindle speed range r/min 43-3225
65-4660 (16 steps)
12steps 35-1500 T-slots(No./width/pitch) mm 3/14/80 Arm travel mm 450 Main motor power --- 3HP or 5HP
3Kw Torque of X/Y/Z axis AC
servo motorN.m 10 Overall size mm 1720*1680
*23501820*1680
*23501720*1680
*23501820*1680
*2350Net weight kg 1700/1650 1750/1700 1750/1700 1800/1750
