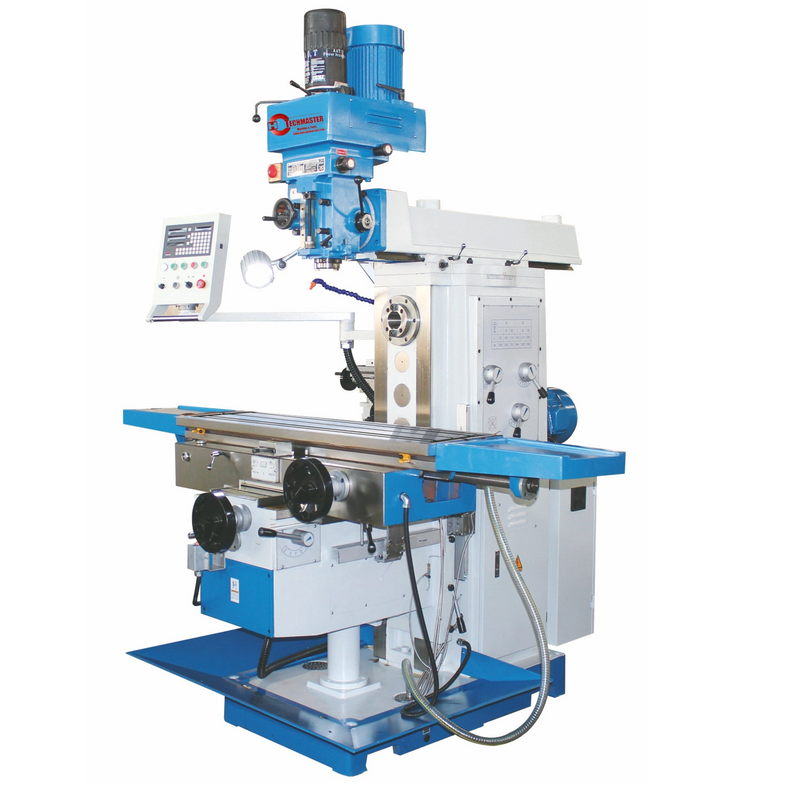

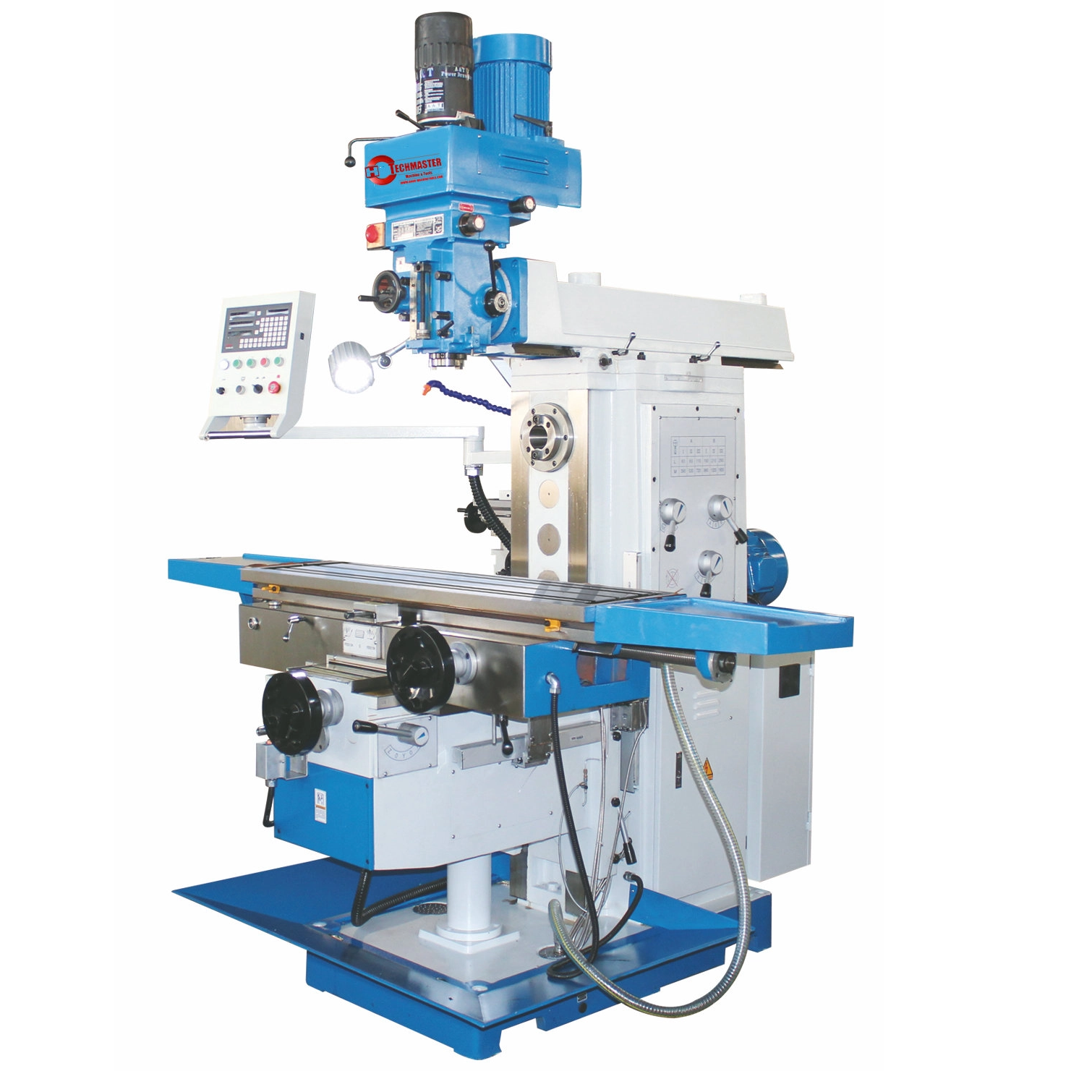

TURRET UNIVERSAL MILLING MACHINE
Quantity: -
TURRET XL6332 / TURRET XL6336
SERVO MOTOR ,TORQUE, ENGERGYEFFICIENCY
X.Y.Z AXIS RAPID FEEDER
WORKATABLE X.Y.Z AXIS AUTOMATICA FEEDING
OPTIONAL :
DRO IS OPTIONAL
PNEUMATIC TOOL CLAMPING IS OPTIONAL
ROTARY TABLE(45" DEGREE)
MILLING CHUCK
VICE
DIVIDING HEAD
Feature:
Universal Milling Machine
for Workshop and Production FacilitiesRigid frame design with wide guideways and travels
Hardened guideways ensure wear-resistance and long-term accuracy in all machining operations
Large work table
All gears are hardened and ground for quiet operation and long life
Swivelling vertical cutter head with low-maintenance belt drive, quiet and vibration-free
Automatic quill stroke featuring 3 steps and micrometer depth stop, plus automatic shut-off
Quill feed allows angular bores with tilted cutter head
Rigid boom and outer arbor support for secure and vibration-free guidance of milling arbors
High-torque servo-motor drives infinitely variable feeds and raid feeds on 3 axes
Specifications Unit XL6336
XL6332XL6336C
XL6332CXL6336CL
XL6332CLTable size mm 1325*360
1325×3201600*360
1600×320Table travel (X/Y/Z) mm 750/320/460 1100/320/450 1300/320/450 Table feed. (X/Y/Z) mm/min 30-750/20-500/15-375 Table rapid speed (X/Y/Z) mm/min 1200/800/600 Spindle taper
7:24 IS050 (H) 7:24 IS040 (V) Stroke of spindle quill mm 127 (V)/140 Distance between spindle nose
and table surfacemm 200-660 200-650 Distance between horizontal spindle
center line and table surfacemm 20-480 20-470 Distance between horizontal spindle
center line and arm surfacemm 245 Spindle speed range r.p.m 16 steps 60-1800 (H) 8 steps 65~4660 (V) T-slots(NO./width/pitch) mm 3/18/70 Arm travel mm 550 Main motor power Kw 5.5 (H) 3.7 /5.5(V) Torque of X/Y/Z axis AC
servo motorN.m 10 Overall size mm 1800×2100
×25002245×2100
×25002520×2100
×2500Net weight kg 2710/2660 27/0/2730 2850/2800
THIS MODEL CAN ORDER SPECIALLY FOR THE ROTARY TABLE
HIGN SPEED VARIABLE MILLING HEAD ARE OPTIONAL ORDER
SERVO MOTOR ,TORQUE, ENGERGYEFFICIENCY
X.Y.Z AXIS RAPID FEEDER
WORKATABLE X.Y.Z AXIS AUTOMATICA FEEDING
OPTIONAL :
DRO IS OPTIONAL
PNEUMATIC TOOL CLAMPING IS OPTIONAL
ROTARY TABLE(45" DEGREE)
MILLING CHUCK
VICE
DIVIDING HEAD
Feature:
Universal Milling Machine
for Workshop and Production FacilitiesRigid frame design with wide guideways and travels
Hardened guideways ensure wear-resistance and long-term accuracy in all machining operations
Large work table
All gears are hardened and ground for quiet operation and long life
Swivelling vertical cutter head with low-maintenance belt drive, quiet and vibration-free
Automatic quill stroke featuring 3 steps and micrometer depth stop, plus automatic shut-off
Quill feed allows angular bores with tilted cutter head
Rigid boom and outer arbor support for secure and vibration-free guidance of milling arbors
High-torque servo-motor drives infinitely variable feeds and raid feeds on 3 axes
Specifications Unit XL6336
XL6332XL6336C
XL6332CXL6336CL
XL6332CLTable size mm 1325*360
1325×3201600*360
1600×320Table travel (X/Y/Z) mm 750/320/460 1100/320/450 1300/320/450 Table feed. (X/Y/Z) mm/min 30-750/20-500/15-375 Table rapid speed (X/Y/Z) mm/min 1200/800/600 Spindle taper
7:24 IS050 (H) 7:24 IS040 (V) Stroke of spindle quill mm 127 (V)/140 Distance between spindle nose
and table surfacemm 200-660 200-650 Distance between horizontal spindle
center line and table surfacemm 20-480 20-470 Distance between horizontal spindle
center line and arm surfacemm 245 Spindle speed range r.p.m 16 steps 60-1800 (H) 8 steps 65~4660 (V) T-slots(NO./width/pitch) mm 3/18/70 Arm travel mm 550 Main motor power Kw 5.5 (H) 3.7 /5.5(V) Torque of X/Y/Z axis AC
servo motorN.m 10 Overall size mm 1800×2100
×25002245×2100
×25002520×2100
×2500Net weight kg 2710/2660 27/0/2730 2850/2800
THIS MODEL CAN ORDER SPECIALLY FOR THE ROTARY TABLE
HIGN SPEED VARIABLE MILLING HEAD ARE OPTIONAL ORDER
