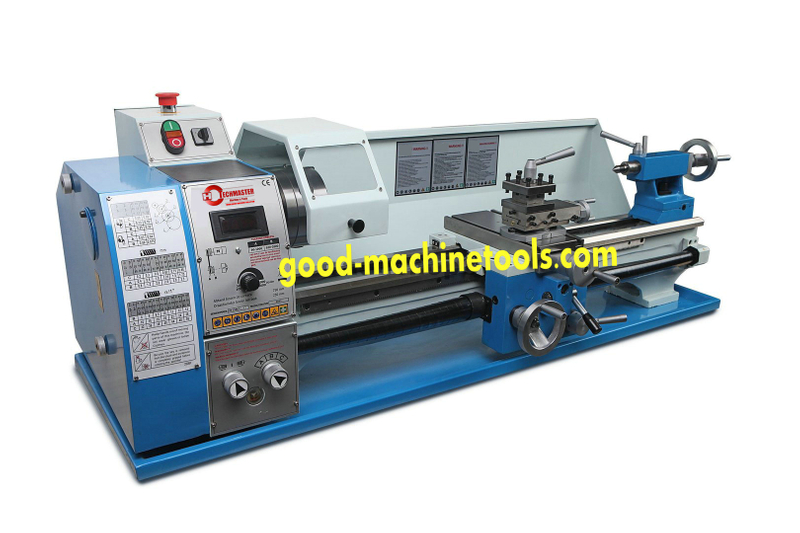

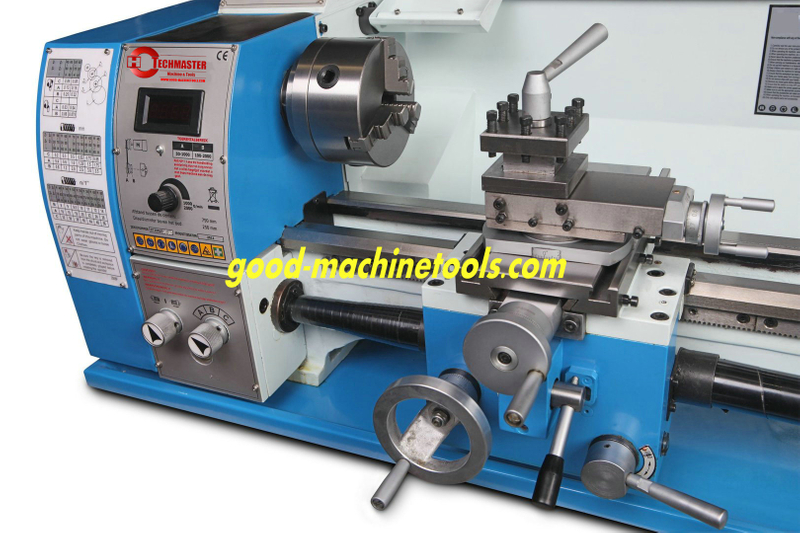

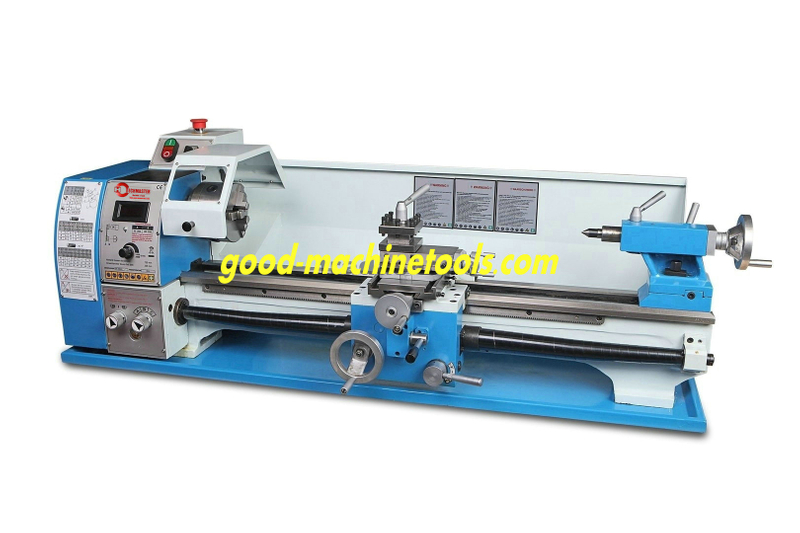

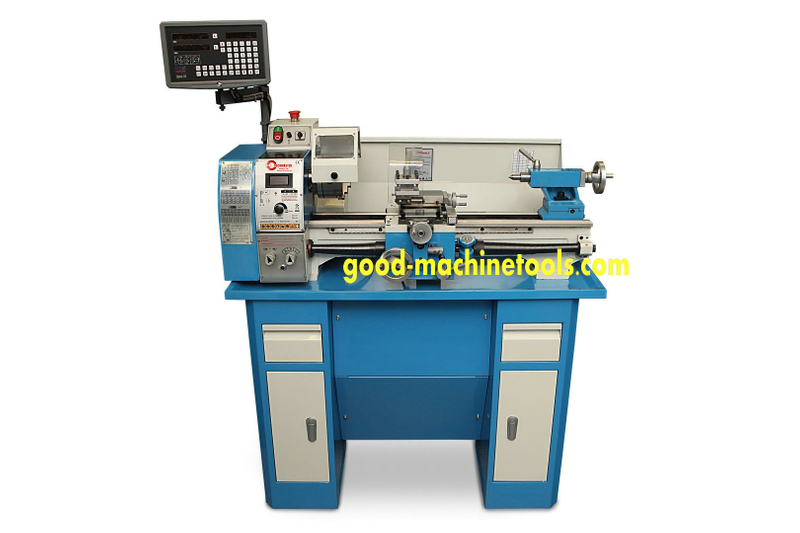

TWO DIRECTION AUTO FEEDING BENCH LATHE D250VFX550 PROFI
Quantity: -
D250VFX550 PROFI
The lathe is serially equipped with a leadsrew and feed rod for thread cutting/ auto-feed. New features at this model are the safety clutch and the micrometer longitudinal fence. Further, this machine can be additionally extandable with a milling attachment
Features
- Practical, solid machine with leadscrew and feed rod
- Logically arranged feed setting allows easy, smooth adjustment
- Wide range of applications: precision mechanics, training and education, etc.
- Ideal for processing steel, non-ferrous metals and plastics
- Apron features handwheels with fine scale
- Headstock serves as temporary tool storage
- Adjustable headstock, tailstock and guides
- Powerful motor, even at longer operation
- Electronic, stepless speed setting allows ideal adjustment to each workpiece
Standard accessories:
- 3-jaw chuck DK11-125 mm
- Flange 125 mm
- Dead centers
- Change gears
- 4-way tool post holder
- Safety clutch
- Micrometer longitudinal fence
- Cross slide with top support
- Digital speed display
- Thread dial
- Chuck guard
- Splash guard
- Leadsrew cover
- Tools
MODEL D250VFX550 PROFI / D250VFX750 PROFI Distance between centers550 / 750 mm(OPTIONAL)Swing over bed250 mmSwing over cross slide145 mmWidth of bed135 mmTaper of spindle boreMT4Spindle bore26 mmNumber of spindle speeds6Range of spindle speeds50-1000rpm/100-2000 rpmRange of cross feeds
0.03-0.075 mm/rRange of longitudinal feeds0.06-0.32 mm/rRange of inch threads8-56 T.P.IRange of metric threads0.2-3.5 mmTop slide travel50 mmCross slide travel115 mmTailstock quill travel70 mmTaper of tailstock quillMT2Motor750W(AC)Packing size 1250/1500x560x570 mmNet weight127/140 kg
