TZX45HC-TZXB45HC
Quantity: AUTO FEEDING VERTICAL GEARED DRILLING AND MILLING MACHINE JZX45-HC
The model are suitable for drilling, milling and countersinking. Their high versatility - gear head tilts and rotates - makes these machines very popular for repair shops and training workshops.
It omes complete with automatic spindle feed
Surface treated machine base to mount particularly large work pieces
2-speed-motor with 12 speed settings (400volts)
Left and right turning for thread cutting
Large cross table with T-slots
Control lever makes speed change quick and easy
Gear head 180° Tiltable, 360° Rotatable and adjustable in height
Power feed, Coolant, big worktable is optional.
Polished gear wheels, in oil bath, allow smooth running
Standard accessories:
Keyless drill chuck 3 - 16 mm / 18
Drill chuck arbor MT 4 / B 18
Sleeve MT 4 / 3
Milling head 80 mm
Protective cover
Thread cutting device
Drawbar M16
Coolant device

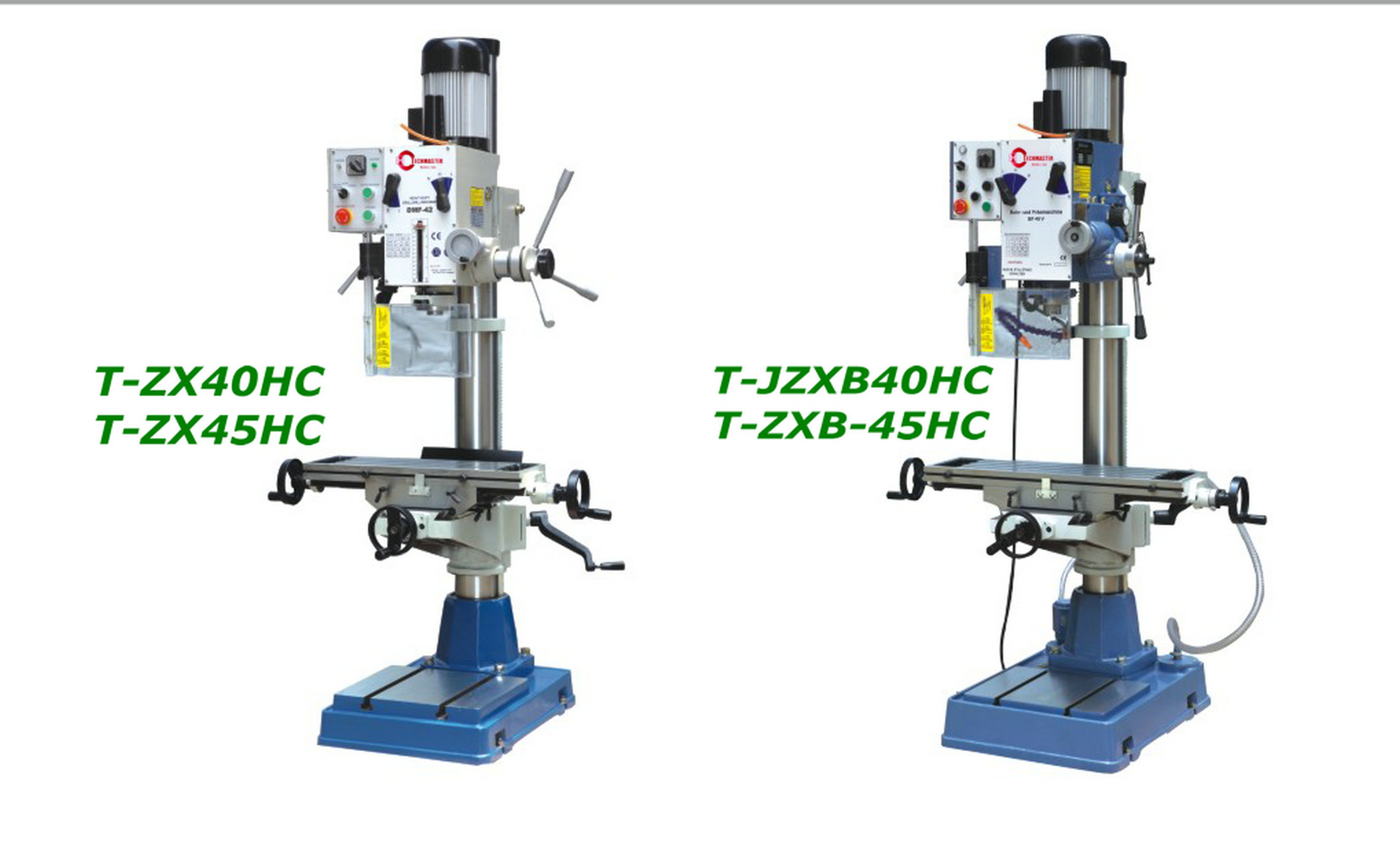

ToolsTOP STAND DRILLING AND MILLING MACHINE T-ZXB40HC/T-ZXB45HC
(SPINDLE AUTO FEEDING)T-ZX40HC/T-ZX45HC Max. Drilling capacity 31.5mm/45mm 31.5mm/45mm Max. horizontal milling dia &
Milling width80mm&28mm 88mm&28mm Spindle stroke 130mm 120mm Table size 585x190mm 585x190mm T slot size 14mm 14mm Spindle feed 0, 12 / 0, 19 / 0, 26 mm/rev.
Distance spinde axis to column surface 252.5mm 252.5mm Max. Distance spinde nose to table 750mm 785mm Max. Distance spinde nose to base 1300mm 1300mm Spinde taper MT3 or R8/ MT4 or R8 MT3orR8/MT4orR8 Spinde speeds range 50-1260r/min or 50-2520r/min 95-1600r/min or 95-3200rpm Spinde speeds 6or 12 6 or 12 Working area of table 585x190mm 585x190mm Trip table 370*180*515mm 370x180x515mm Overall height 1765mm/1800mm(L) 1765mm/1800mm Motor power 1100w/850w(750w) 1100w or850w/1100w G. W/N. W 350/310kg 350/310kg Ship measurement(wooden cases) 84× 74× 193cm, 90× 80× 193cm(D) 84× 74× 193cm, 90× 80× 193cm(D)
AUTO FEEDING VERTICAL GEARED DRILLING AND MILLING MACHINE JZX45-HC
The model are suitable for drilling, milling and countersinking. Their high versatility - gear head tilts and rotates - makes these machines very popular for repair shops and training workshops.
It omes complete with automatic spindle feed
Surface treated machine base to mount particularly large work pieces
2-speed-motor with 12 speed settings (400volts)
Left and right turning for thread cutting
Large cross table with T-slots
Control lever makes speed change quick and easy
Gear head 180° Tiltable, 360° Rotatable and adjustable in height
Power feed, Coolant, big worktable is optional.
Polished gear wheels, in oil bath, allow smooth running
Standard accessories:
Keyless drill chuck 3 - 16 mm / 18
Drill chuck arbor MT 4 / B 18
Sleeve MT 4 / 3
Milling head 80 mm
Protective cover
Thread cutting device
Drawbar M16
Coolant device
ToolsTOP STAND DRILLING AND MILLING MACHINE T-ZXB40HC/T-ZXB45HC
(SPINDLE AUTO FEEDING)T-ZX40HC/T-ZX45HC Max. Drilling capacity 31.5mm/45mm 31.5mm/45mm Max. horizontal milling dia &
Milling width80mm&28mm 88mm&28mm Spindle stroke 130mm 120mm Table size 585x190mm 585x190mm T slot size 14mm 14mm Spindle feed 0, 12 / 0, 19 / 0, 26 mm/rev.
Distance spinde axis to column surface 252.5mm 252.5mm Max. Distance spinde nose to table 750mm 785mm Max. Distance spinde nose to base 1300mm 1300mm Spinde taper MT3 or R8/ MT4 or R8 MT3orR8/MT4orR8 Spinde speeds range 50-1260r/min or 50-2520r/min 95-1600r/min or 95-3200rpm Spinde speeds 6or 12 6 or 12 Working area of table 585x190mm 585x190mm Trip table 370*180*515mm 370x180x515mm Overall height 1765mm/1800mm(L) 1765mm/1800mm Motor power 1100w/850w(750w) 1100w or850w/1100w G. W/N. W 350/310kg 350/310kg Ship measurement(wooden cases) 84× 74× 193cm, 90× 80× 193cm(D) 84× 74× 193cm, 90× 80× 193cm(D)
