The portable band-saw G40121
You are here: Home » Products » SAWS » METAL BAND SAWING MACHINE » The portable band-saw G40121
Share to:

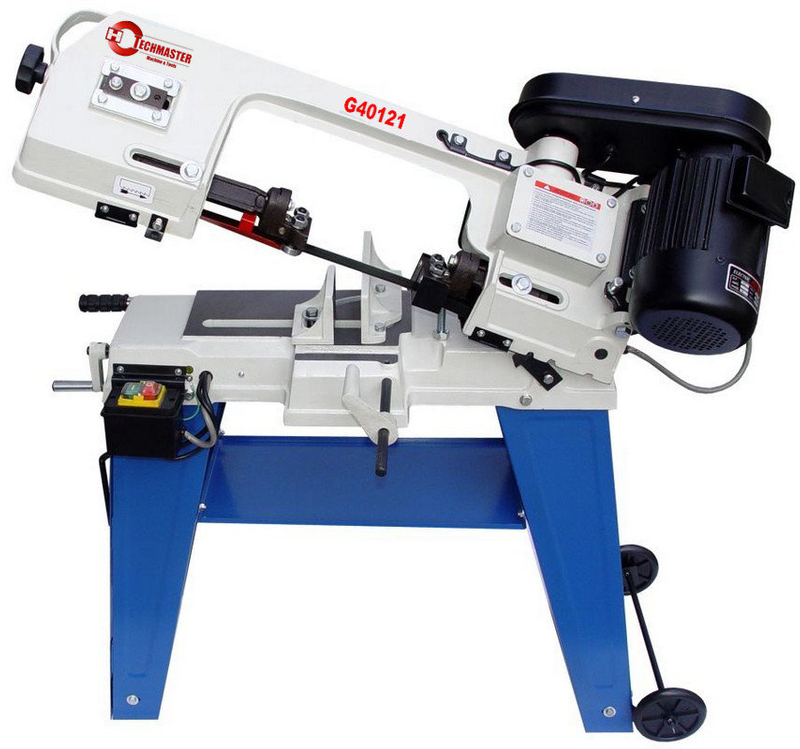

The portable band-saw G40121

Quantity:
  • G40121

mini metal cutting band saw G40121 for DIY use

Specifications for this item:


Model No. G40121

 Power: 3/4~1 HP

 Cutting angles (deg) 0-55°

 Cutting capacity 4 in. x 6 in. (rectangle), 4-1/2 in. (round)

 Speed (max) 80, 120, 200 feet per minute

 Number of speeds 3

 Teeth per inch (TPI) 14
 Blade length (in.) 64-1/2 in.
 Blade width (in.) 1/2 in.
 Shipping Weight 131.00 lb.
 Size(s) 4 in. x 6 in.

 Table dimensions 11-1/2 in. L x 7-1/2 in. W x 23-1/2 in. (horizontal),

                              9-5/8 in. L x 9-1/2 in. W x 33-1/2 in. (vertical)

 Throat depth (in.) 4-1/2 in.

 Accessories Included Stand







 Approvals:GS/CE/CSA



Features:

You'll be able to quickly and accurately cut workpieces up to 4 in. x 6 in. (rectangle), 4-1/2 in. (round)

using the band saw's adjustable horizontal and vertical positions. Choose from 3 speeds to cut everything

from brass and aluminum to rugged alloy and tool steels. Includes a 1/2 in. x 0.025 in. x 64-1/2 in. blade (14 TPI),

plus a heavy-duty stand with two wheels.



~Three speeds to cut everything from brass and aluminum to rugged alloy and tool steels
~Gravity feed cutting pressure adjustment in horizontal position
~Comes with blade and heavy duty stand
~0-55° left miter cuts on horizontal
~Two-position rocker switch with safety lock-off
~Overweight Item subject to 14.95 additional Freight Charge.


Product Beschrijving:

Model Geen. G40121

Motor: 230V ~/50Hz 3/4Hp ~ 1Hp
120V ~/60Hz 6.5A
Motor onbelast: 1720rpm
Blade onbelast: 3 speed, 27, 46, 64 m/min
Blade Maat:
LengthXWidth: 64-1/2 "X1/2" (1640X13mm)
TPI: 14
Snijden Capaciteit:
Rechthoekige: 4 "X6" (100X150mm)
Ronde: 5 " (125mm)
Hoek Bezuinigingen: 0 °-45 °
Verpakking: 1007X382X385mm
Bruto/Netto Gewicht: 63/61kgs
Laden Hoeveelheid:
200pcs/20'
400pcs/40'



Kenmerken:

>>Zult u in staat om snel en nauwkeurig cut werkstukken tot 4 in. X 6 in. (rechthoek), 4-1/2 in. (ronde)Met de band zaag verstelbare horizontale en verticale posities. Kiezen uit 3 snelheden te snijden allesVan messing en aluminium om robuuste legering en tool steels. Omvat een 1/2 in. X 0.025 in. X 64-1/2 in. Blade (14 TPI),Plus een heavy-duty stand met twee wielen.

>>Drie snelheden te snijden alles van messing en aluminium om robuuste legering en tool staal

>>Gravity feed snijden druk aanpassing in horizontale positie
>> Wordt geleverd met blade en heavy duty stand
>>0-55 ° links mijter bezuinigingen op horizontale
>> Twee-positie tuimelschakelaar met veiligheid lock-off
>> Overgewicht Item onderworpen aan 14.95 extra Vrachtkosten.



>> Kreeg CE/CSA goedkeuringen

>> We kunnen produceren de machine volgens uw eisen over merk en kleur.
