The portable band-saw

Quantity:
  • G5012W

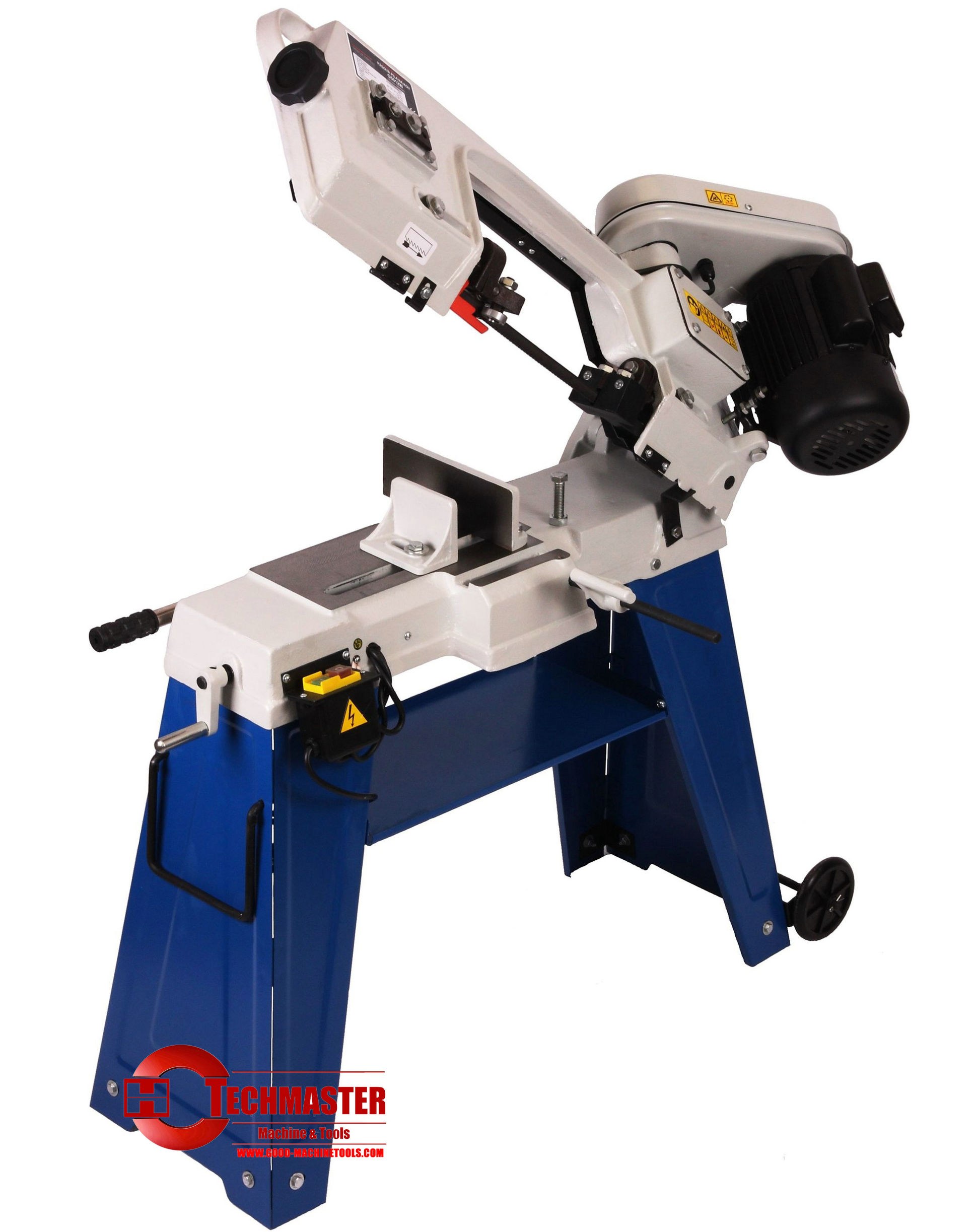

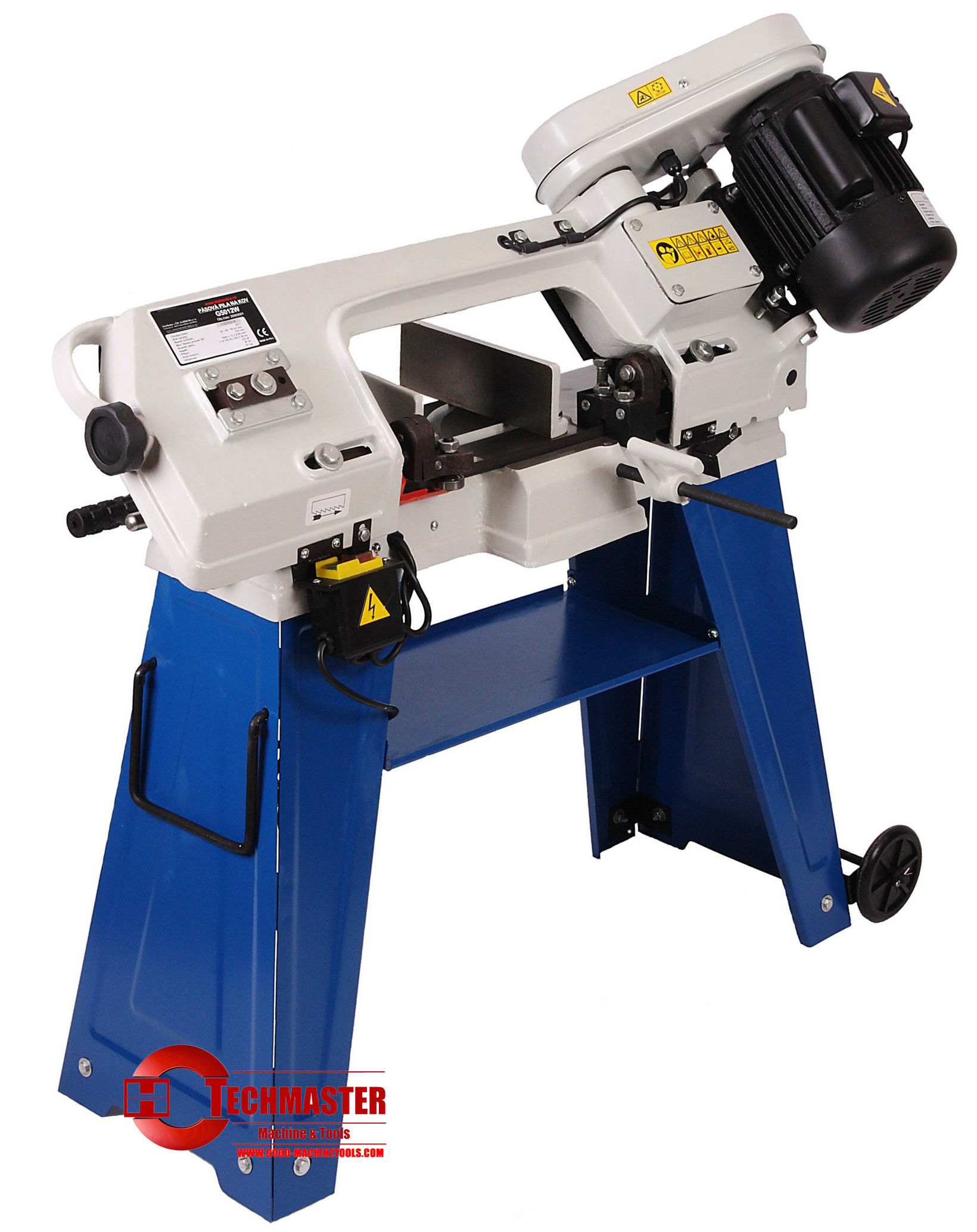

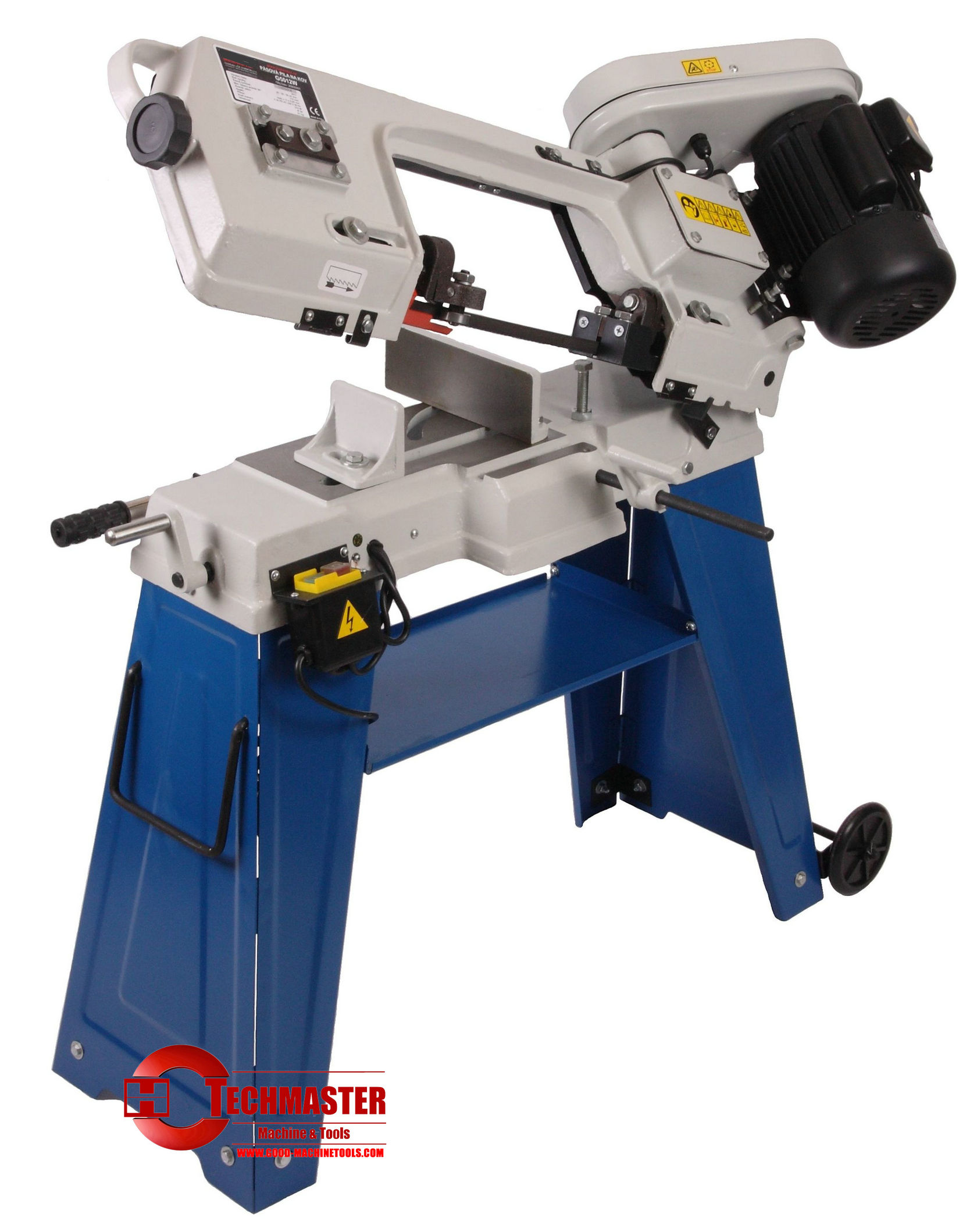

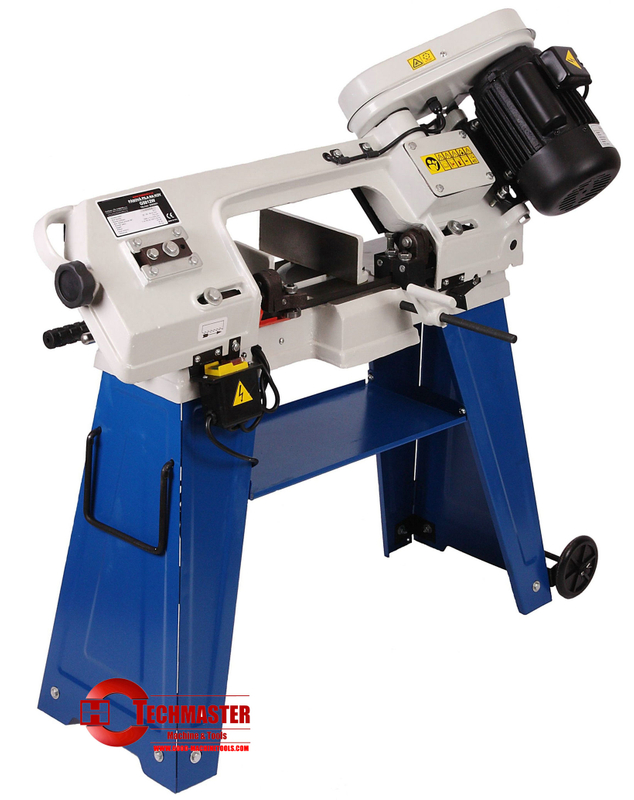

The portable band-saw for metal cutting  G5012W is distinguished by high efficiency and easy operation. A swivel vice secures cutting optimal range. These machines are an interesting proposal for every professional craftsman. Small dimensions enable taking the machine to building sites, assemblies etc.



  • The band-saw arm made of shaped spheroidal cast iron secures rigidity during operation and absorbs all types of vibrations.
  • Three speeds of the band operation adjusted on a belt transmission.
  • A swivel vice secures material cutting at an angle of 0 – 45o.
  • Suitable band tilt angle given by a set of bearing rollers.
  • Cutting straightforwardness  secures a set of the bearings guiding the band.
  • A cast iron work table on which is a vice clamping material and to which the machine arm is fixed, translates directly into the machine stability.
  • Electrical installation meets all CE requirements. The machine has a limit switch stopping the machine after the cutting process is ended, an emergency button so called safety button consistent with IP 54.
  • The machine is equipped with a quick-clamping vice and a limiter of worked element, in a standard version.

Technical data

Cutting band size mm 1640 x 13 x 0,65
Band tension mechanical (manual)
mechanical (manual) 20, 29, 50
Arm lowering control stepless, hand with a spring
Vice tilt 0° - 45°
Switching-off automatic limit, I/O consistent with IP 54
Power supply 230 V
Main motor power (kW) S1 100%: 0,37; S6% 40%: 0,55
Weight (kg) 86
Dimensions 920 x 480 x 500




Angle Tube Shape Square
115 150 x 100 120 x 120
45° 70 60 x 70 60 x 60
60° - - -

Standard equipment

  • Bimetallic blade.
  • Worked element limiter (stop).

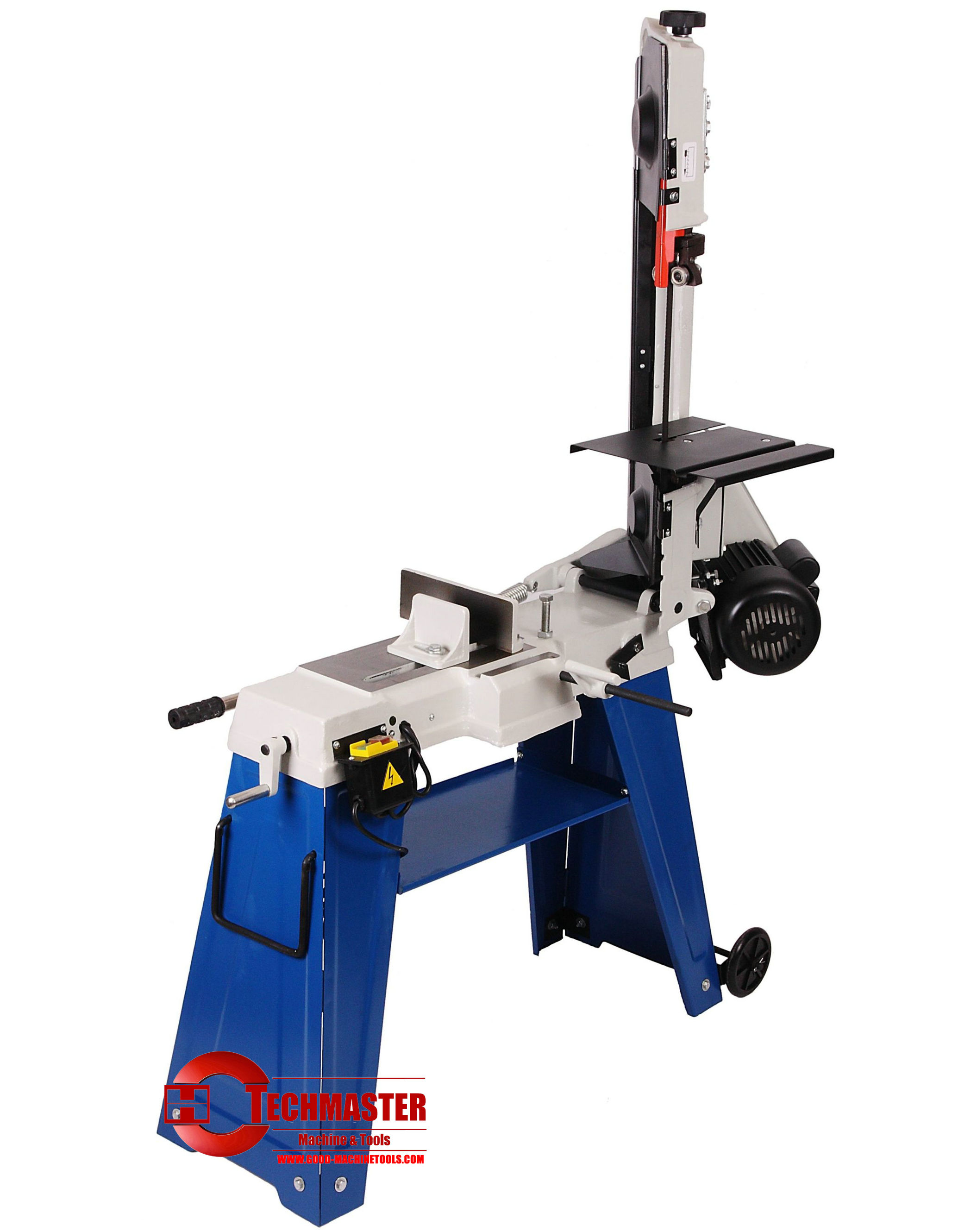

  • Table for vertical cutting.

Příkon 370 W
Napětí 230 V
Řezná rychlost 20 - 29 - 51 m/min.
Max. řezaný průměr (90°)110 ,(45°)68 mm
Max. řezaný materiál (š x v) při 90° 150 x 110 mm
Max. řezaný materiál (š x v) při 45° 68 x 110 mm
Vertikální řezání ano
Rozměr pásu 1640 x 13 x 0,6 mm
Řezání pod úhlem 90°,45°
Hmotnost 61 kg
