| Quantity: | |
|---|---|

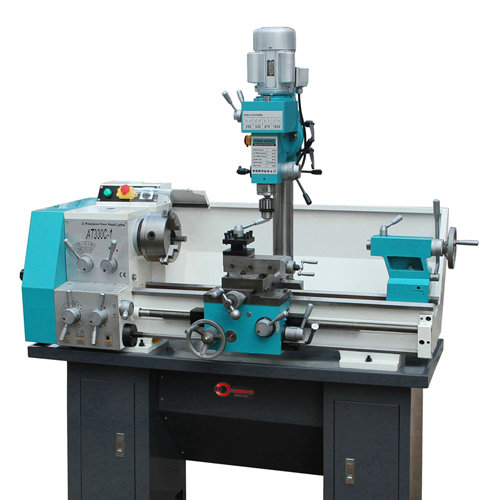

FEATURES:
All gear drive headstock for lathe and mill-drill
Two ‘V’ guaidway and gears in headstock are hardened and ground
Quick change gearbox for easy thread cutting
12 speed of lathe from 60-1800rpm, 4 speed of mill-drill from 180-2000rpm

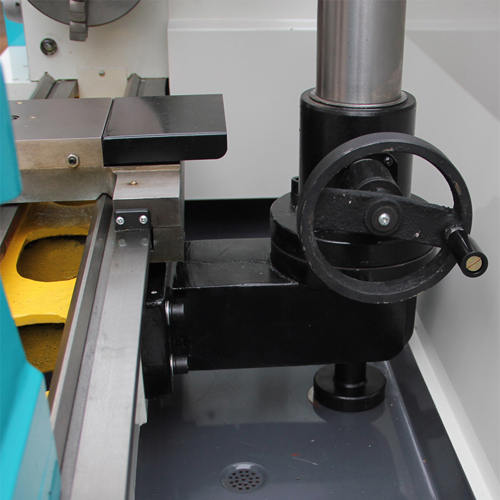

Mill-drill headstock tilts 45º in left/right and swivel 360º in vertical
Metric or inch thread cutting
Automatic longitudinal and cross feeds
2 separate electric motor for lathe and mill-drill
l Original creation of big operating bar for change longitudinal-cross feed
| Model | MP330C-1 |
| Swing over bed | 330mm |
| Swing over cross slide | 220mm |
| Distance between centers | 750mm |
| Taper of spindle bore | MT5# |
| Spindle bore | 38mm |
| Range of spindle speeds | 12 / 60—1800rpm |
| Range of longitudinal feeding | 0.1—1.5mm/r |
| Range of cross feeding | 0.045—0.6mm/r |
| Inch threading | 35 / 48 — 4-1/2TPI |
| Metric threading | 18 / 0.2— 3.5mm |
| Travel of compound slide | 60mm |
| Travel of cross slide | 160mm |
| Tailstock quill travel | 80mm |
| Taper of tailstock quill | MT3# |
| Motor power for lathe | 1100W |
| Drilling capacity | 16mm |
| Milling capacity(end/face) | 20mm / 63mm |
| Spindle speed | 190—2000rpm |
| Spindle taper | MT 3# |
| Spindle travel | 180mm |
| Spindle nose to table | 280mm |
| Motor power for drill/mill | 550W |
| Machine weight | 420kg |
| Packing Size | 1550x750x880mm |
