Turning lathe and milling machine MP330C-1

  • MP330C-1


  • All gear drive headstock for lathe and mill-drill

  • Two ‘V’ guaidway and gears in headstock are hardened and ground

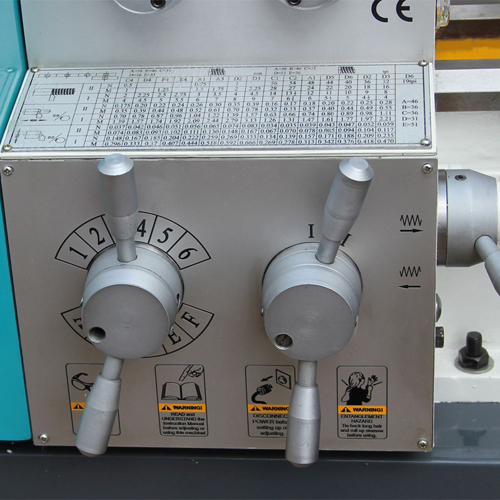

  • Quick change gearbox for easy thread cutting

  • 12 speed of lathe from 60-1800rpm, 4 speed of mill-drill from 180-2000rpm

  • Mill-drill headstock tilts 45º in left/right and swivel 360º in vertical

  • Metric or inch thread cutting

  • Automatic longitudinal and cross feeds

  • 2 separate electric motor for lathe and mill-drill

l  Original creation of big operating bar for change longitudinal-cross feed


Swing over bed 330mm
Swing over cross slide 220mm
Distance between centers750mm
Taper of spindle bore MT5#
Spindle bore 38mm
Range of spindle speeds12  / 60—1800rpm
Range of longitudinal feeding0.1—1.5mm/r
Range of cross feeding0.045—0.6mm/r
Inch threading35 / 48 — 4-1/2TPI
Metric threading18 / 0.2— 3.5mm
Travel of compound slide60mm
Travel of cross slide160mm
Tailstock quill travel80mm
Taper of tailstock quillMT3#
Motor power for lathe1100W
Drilling capacity16mm
Milling capacity(end/face)20mm / 63mm
Spindle speed190—2000rpm
Spindle taperMT 3#
Spindle travel180mm
Spindle nose to table280mm
Motor power for drill/mill550W
Machine weight420kg
Packing Size1550x750x880mm
