DESCRIPTION

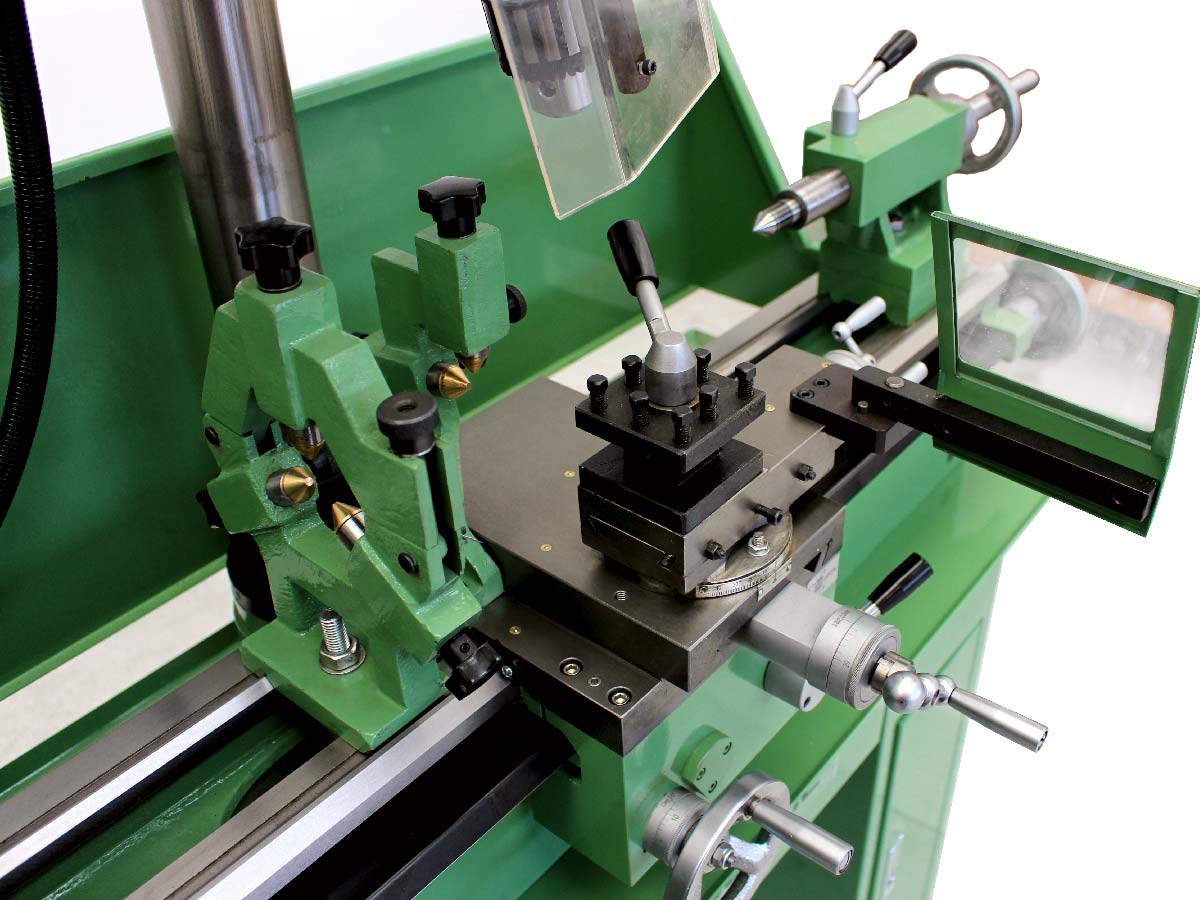

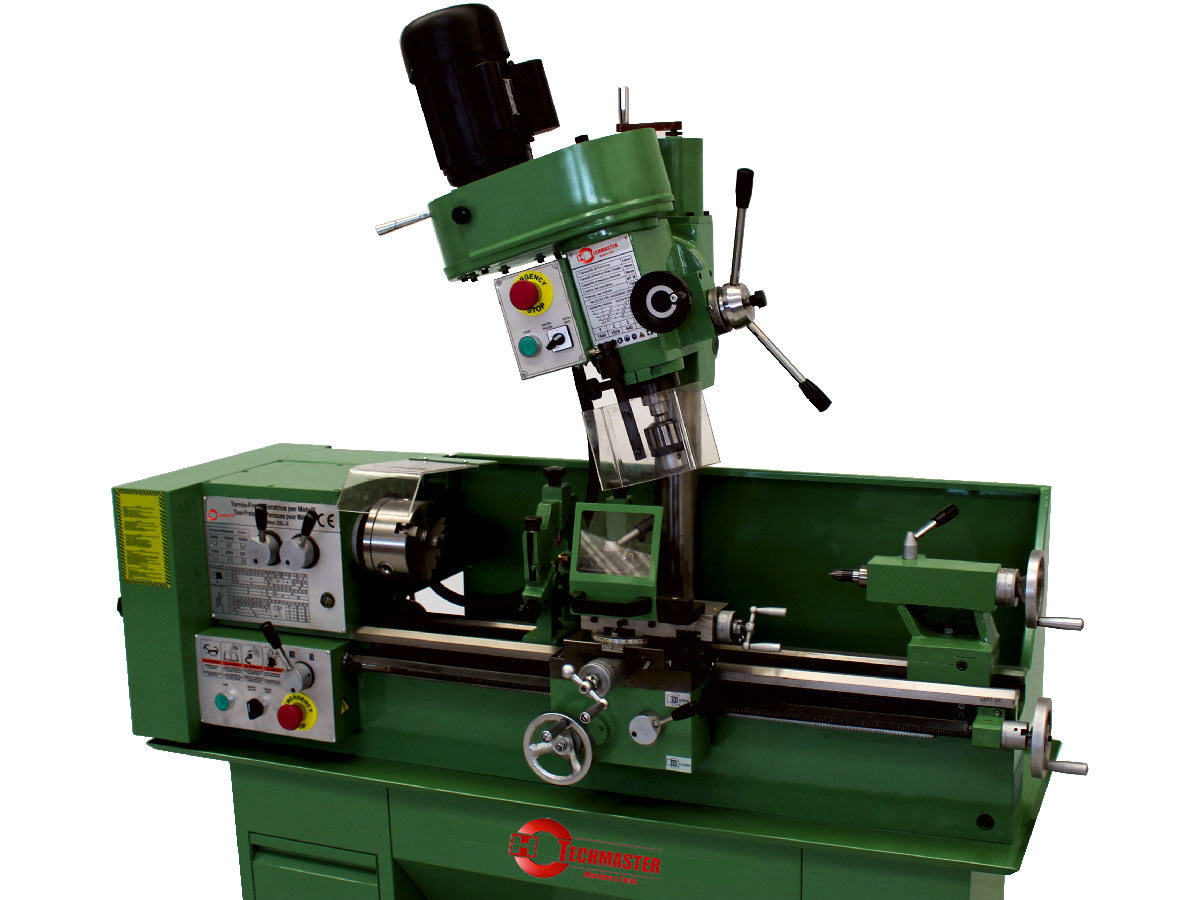

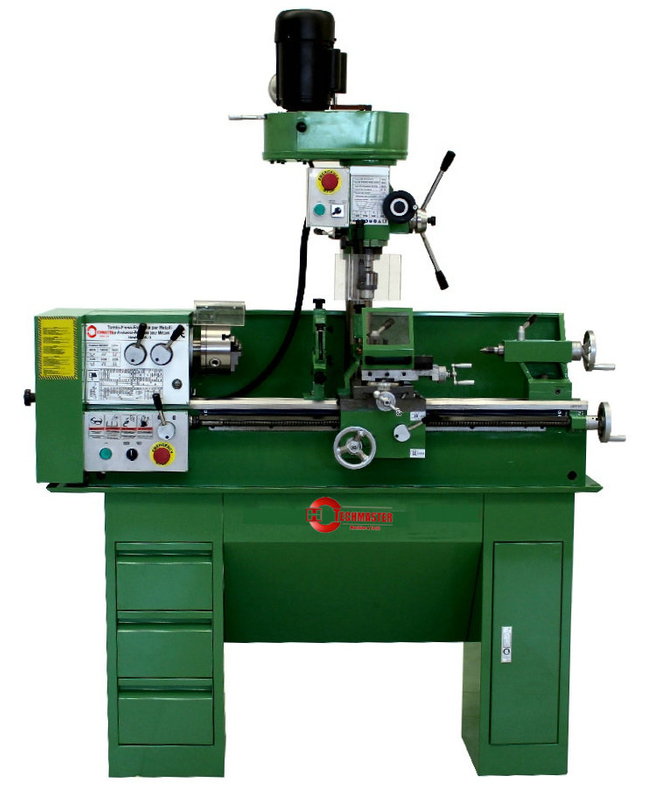

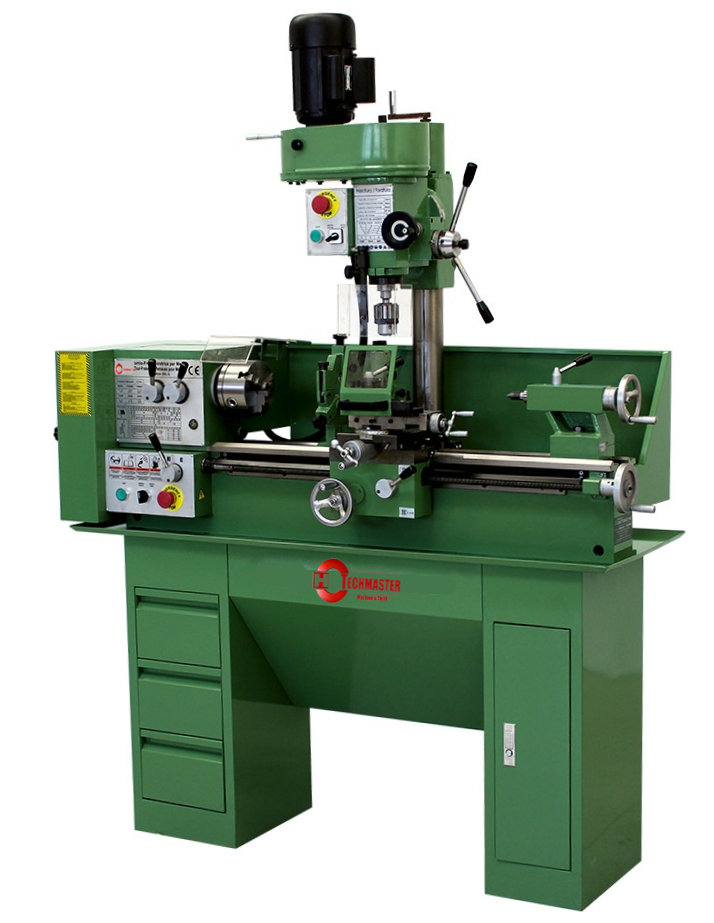

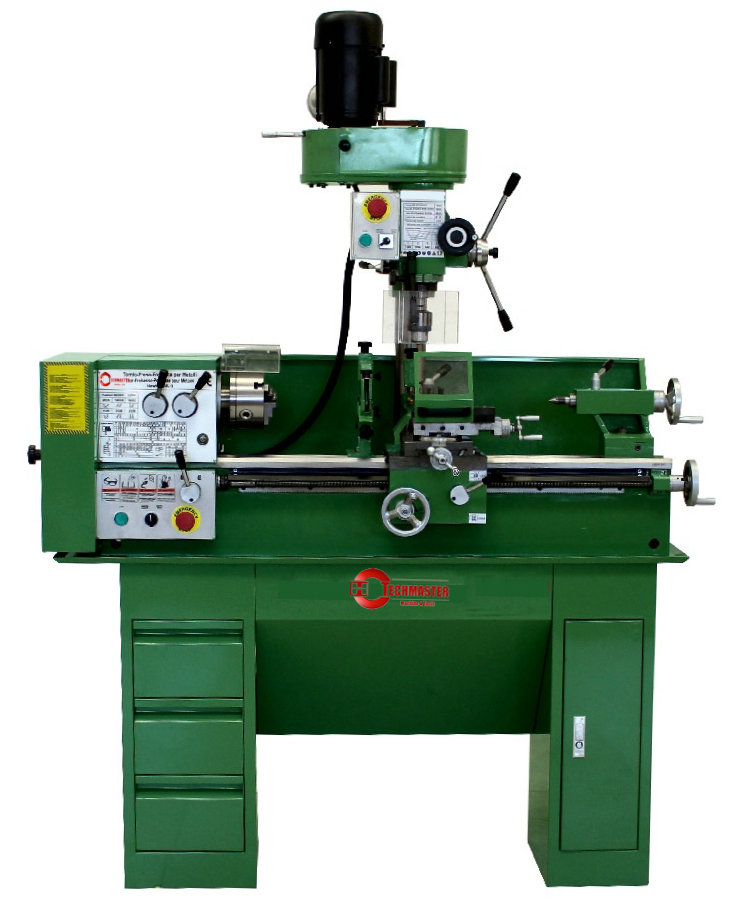

Metalworking lathe-milling machine designed for craftsmen and for lovers of DIY very demanding. With a heavy-duty, cast iron structure and runners high precision this machine is suitable for working all types of metal. It has two independently single phase motors: One single-phase 750 W for the lathe and one single-phase for the milling machin. Drilling milling machine is capable of penetrating all kind of metal. An electronic indicator shows and adjusts the speed of turning. The machine has sold in standard configuration with a lathe jaw chuck, two dead center, the metal stand, the steady and folow rest and a working tool kit.
| Technical data | |
| DIMENSION | |
| Dimensions with stand | 1500(L) x 470(W) x 1950(H) mm |
| Dimensions without stand | 1450(L) x 450(W) x 1250(H) mm |
| Net weight | 240 Kg |
| LATHE | |
| Distance between center | 700 mm |
| Center height | 250 mm |
| Max swing over the bed | 26 mm |
| Base size of the quick change tool post | 65 x 65 mm |
| Max tool diameter | 210 mm |
| Inch threads | 8 to 56 TPI |
| Metric threads | 0,2 to 3,5 mm |
| Center height | 125 mm |
| Chuck dia. | 120 mm |
| Spindle bore taper | MT4 |
| Tail stock taper | MT2 |
| Longitudinal travel | 70 mm |
| Maximum cutting length | 500 mm |
| Cross travel | 115 mm |

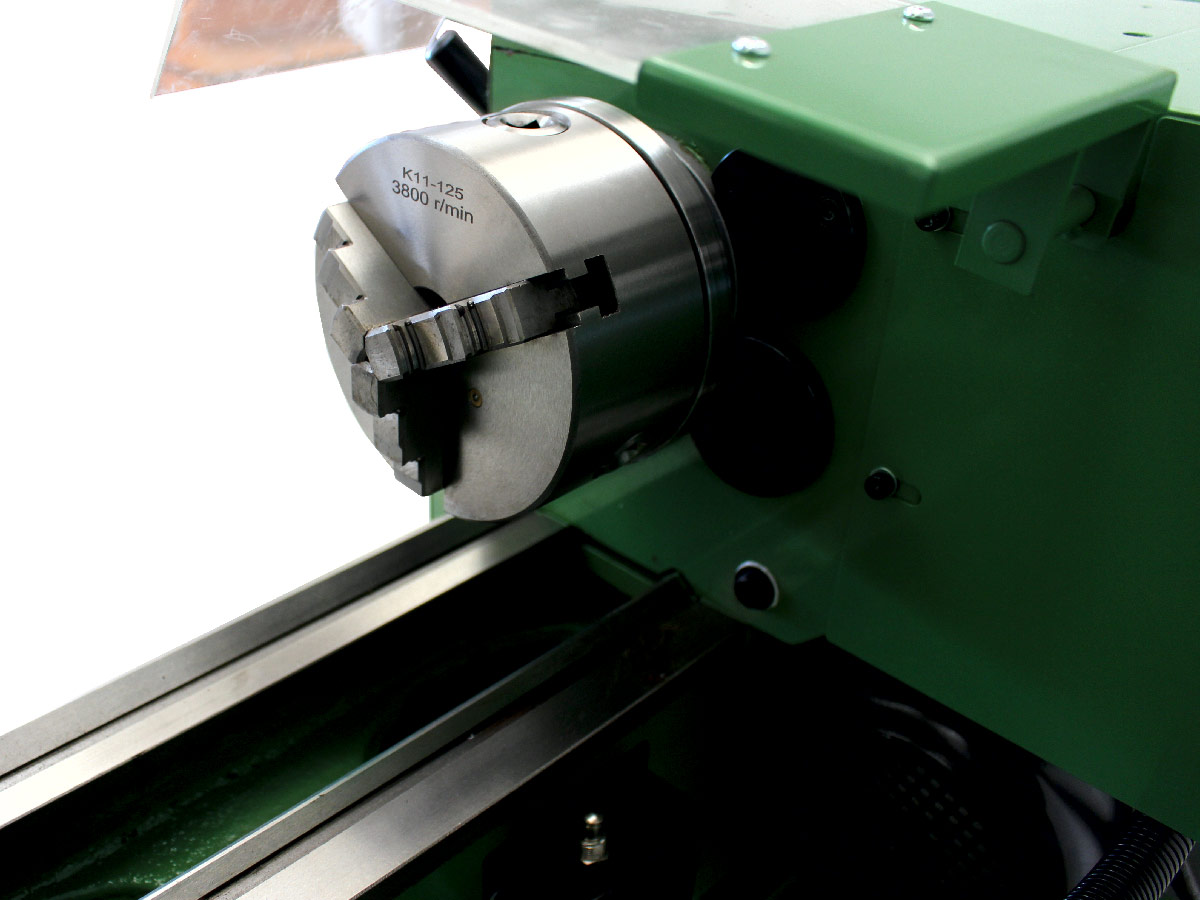

| Type chuck | 3 jaw autocentering |
| MILL DRILL | |
| Spindle taper | MT3 |
| Spindle speeds | 400 to 2000 rpm |
| Spindle dia | 65 mm |
| Max distance from chuck to work table | 160 mm |
| Head tilt | 180° |
| MOTOR METAL LATHE | |
| Powerful | 750 W - 50 Hz |
| Voltage | 1 Phase (220 V) |
| Minimum speed | 115 rpm |
| Full speed | 1620 rpm |
| MOTOR MILL DRILL | |
| Powerful | 750 W - 50Hz |
| Voltage | 1 Phase (220 V) |
| Minimum speed | 400 rpm |
| Full speed | 1640 rpm |
