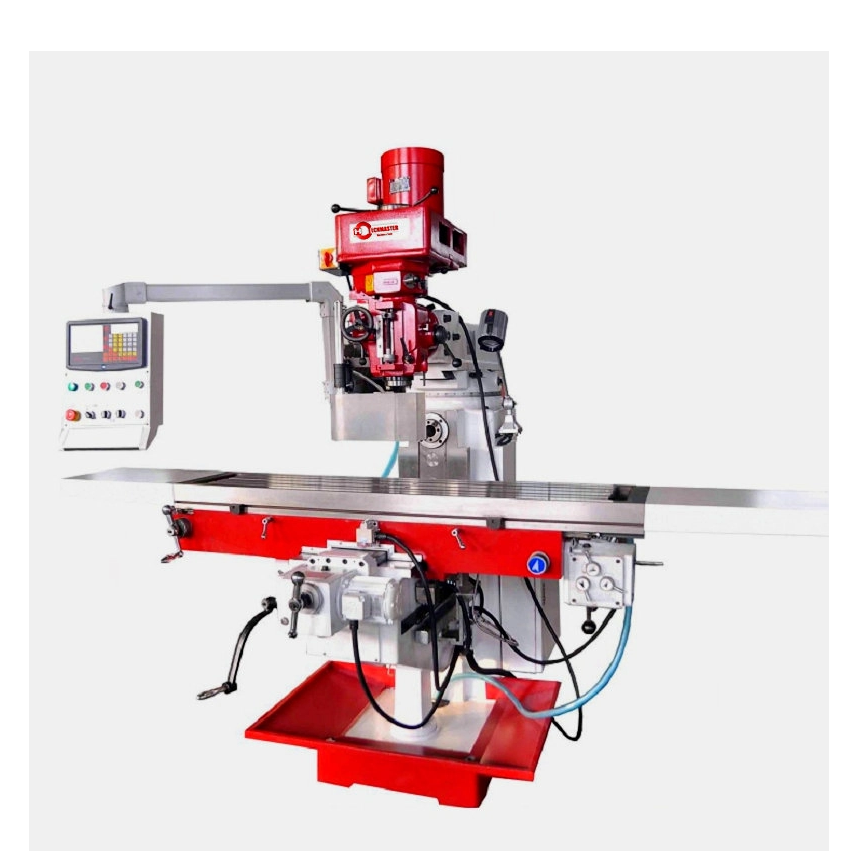

Turret Milling Machine X6330W

Availability:
Quantity:
  • X6330W

Main Feature: Good stability with rectangular guide rails Work table and guide rail by super audio quenching Table

 X Y Z are gear drive automatic feed

 Specifications unit X6330W Table size mm 1500*330

Table travel (X/Y/Z) mm 1000*350*360

Rapid speed of table (X/Y/Z) Mm/min 1000*1000*400

Spindle taper Vertical axis – NT40 NT40

Horizontal axis Table feed(X/Y/Z) mm/min 1000/1000/400

Good stability with rectangular guide rails

Work table and guide rail by super audio quenching

Table X Y Z are gear drive automatic feed

 Specifications

unit

X6330W
Table size

mm

1500*330
Table travel (X/Y/Z)

mm

1000*350*360
Rapid speed of table (X/Y/Z)

Mm/min

1000*1000*400
Spindle taperVertical axis

NT40


NT40

Horizontal axis
Table feed(X/Y/Z)

mm/min

1000/1000/400
Distance between horizontal nose and table surface

mm

0-360
Distance between spindle axis and ram surface

mm

300
Spindle speed range(50HZ)Vertical axis

r/min

50-3750 (Variable)
Vertical axis66-4540 (16 grade speeds)
Horizontal axis40-1300 (12 grade speeds)
T – slot (NO./width/pitch)

mm

3/18/85
Arm travel

mm

500
Main motor powerVertical axis

HP

5kw
Horizontal axis4kw
Overall size(L*W*H)

mm

2400*1700*2350
Net weight

kg

1980
