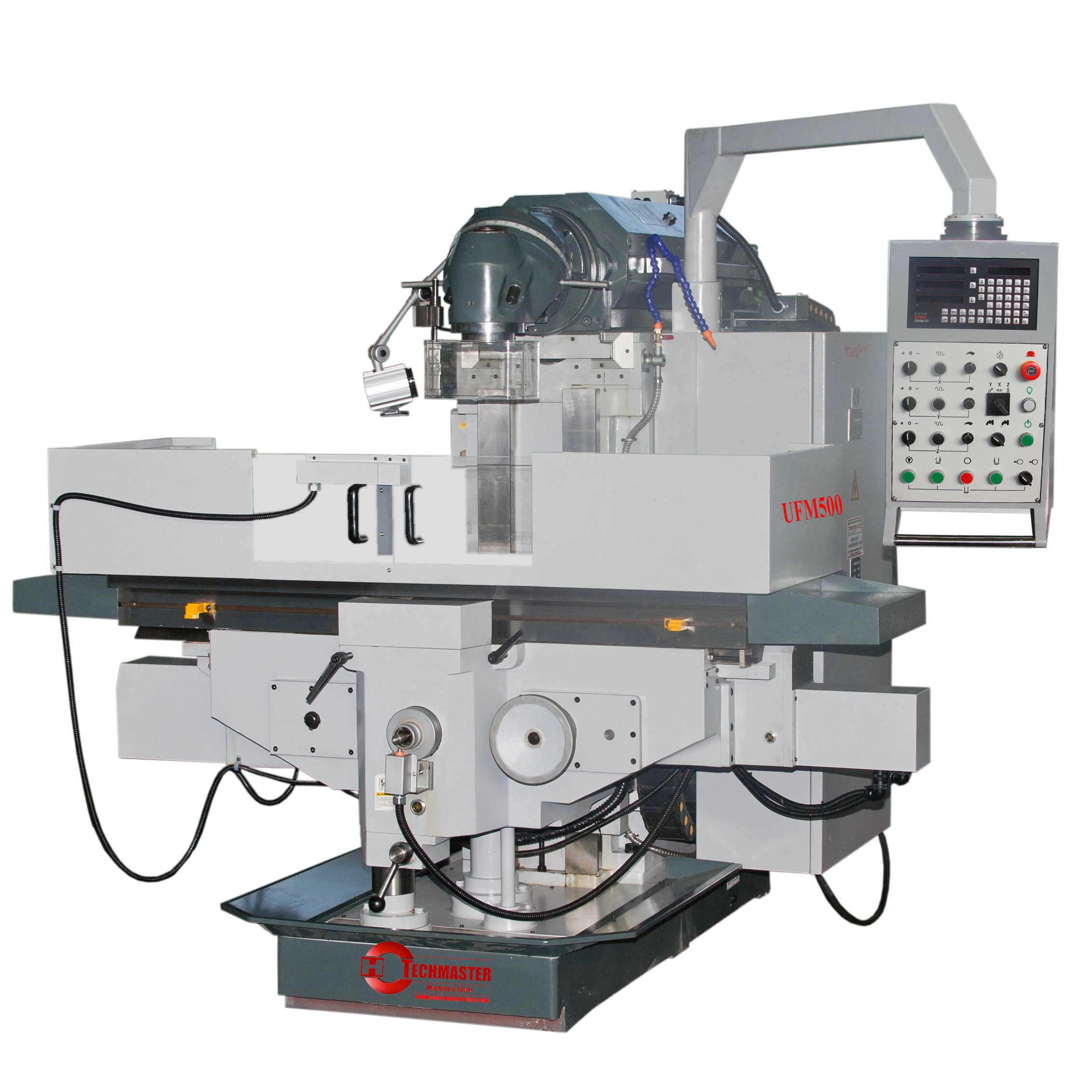

UFM500
Quantity: 3 axes digital read out
feed in X / Y and Z axes (continuous with rapid speed)
swivel milling head (Huron type)
hardened and grinded guides
ball screw
coolant equipment
working lamp
table with 5 T-slots 18 mm
milling arbor Ø 40 mm
collet intake with 8 collets
table: 1.600 x 500 mm working area: 1.200 x 700 x 500 mm taper: ISO 50 revs: 30 – 2050 r/min (27) motor: 7,5 kW feed x-axis: 10-1000 mm/min feed y-axis: 10-1000 mm/min feed z-axis: 5-500mm/min length: 2.600 mm width: 2.070 mm height: 2.100 mm weight: 5.000 kg
3 axes digital read out
feed in X / Y and Z axes (continuous with rapid speed)
swivel milling head (Huron type)
hardened and grinded guides
ball screw
coolant equipment
working lamp
table with 5 T-slots 18 mm
milling arbor Ø 40 mm
collet intake with 8 collets
table: 1.600 x 500 mm working area: 1.200 x 700 x 500 mm taper: ISO 50 revs: 30 – 2050 r/min (27) motor: 7,5 kW feed x-axis: 10-1000 mm/min feed y-axis: 10-1000 mm/min feed z-axis: 5-500mm/min length: 2.600 mm width: 2.070 mm height: 2.100 mm weight: 5.000 kg
