XW6136

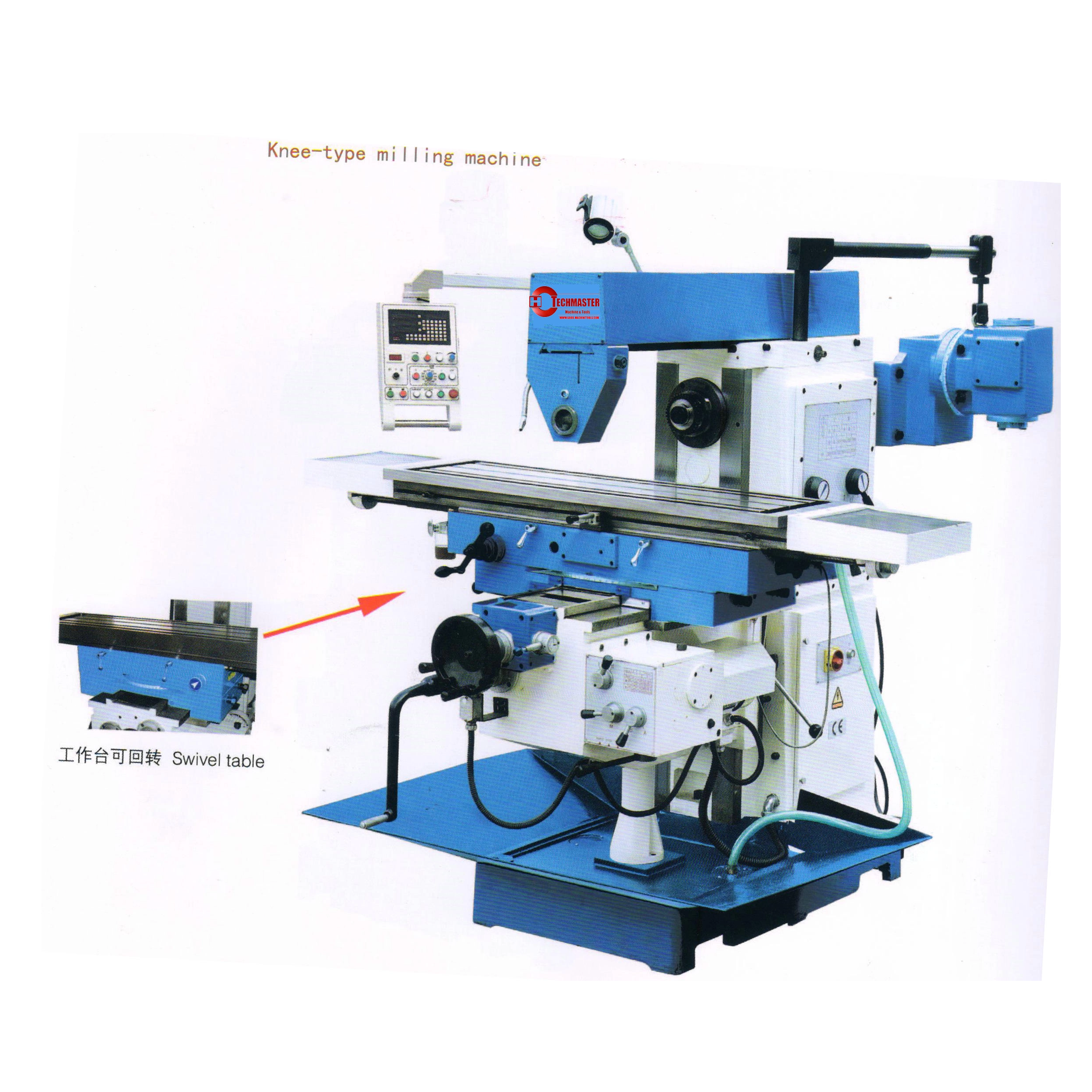

Table can swivel ±45°
Table size 1600*360mm is optional
X,Y,Z axis is centralized automatic feeding by one box
Vertical head is standard
Horizontal spindle is ISO50,vertical head is ISO40
universal milling machine | unit | XW6136 |
TABLE | ||
Table size | mm | 1320x360 |
T slot | no | 5 |
Size ( Width ) | mm | 14 |
Centre distance | mm | 95 |
Max. load of Table | kg | 400 |
swivel of table | degree | ±35º |
machining range | ||
table Longitudinal travel(manual/auto) | mm | 1000 |
table Cross travel (manual/auto) | mm | 290/280 |
table Vertical travel(manual/auto) | mm | 400 |
MAIN SPINDLE | ||
Spindle taper | ISO50 | |
spindle speed /step | rpm | 58-1800/12 |
vertical spindle axis to column surface | mm | 320 |
vertical spindle nose to table surface | mm | 0-341 |
horizontal spindle axis to table surface | mm | 0-400 |
horizontal spindle axis to arm bottom | mm | 175 |
arm travel | mm | 500 |
FEEDS | ||
Longitudinal/cross feed | mm / min | 22-420/8 22-393/8 |
Vertical/step | mm/min | 10-168/8 |
Longitudinal/cross rapid speed | mm / min | 1290/1205 |
Rapid Traverse vertical | mm/min | 513 |
POWER | ||
main motor | kw | 4 |
(X/Y/Z) feed motor | kw | 1.1 |
coolant motor | kw | 0.09 |
others | ||
package dimension | cm | 207x192x225 |
overall dimension | cm | 202.5x207x195 |
N/W,G/W | kg | 2200 |
Table can swivel ±45°
Table size 1600*360mm is optional
X,Y,Z axis is centralized automatic feeding by one box
Vertical head is standard
Horizontal spindle is ISO50,vertical head is ISO40
universal milling machine | unit | XW6136 |
TABLE | ||
Table size | mm | 1320x360 |
T slot | no | 5 |
Size ( Width ) | mm | 14 |
Centre distance | mm | 95 |
Max. load of Table | kg | 400 |
swivel of table | degree | ±35º |
machining range | ||
table Longitudinal travel(manual/auto) | mm | 1000 |
table Cross travel (manual/auto) | mm | 290/280 |
table Vertical travel(manual/auto) | mm | 400 |
MAIN SPINDLE | ||
Spindle taper | ISO50 | |
spindle speed /step | rpm | 58-1800/12 |
vertical spindle axis to column surface | mm | 320 |
vertical spindle nose to table surface | mm | 0-341 |
horizontal spindle axis to table surface | mm | 0-400 |
horizontal spindle axis to arm bottom | mm | 175 |
arm travel | mm | 500 |
FEEDS | ||
Longitudinal/cross feed | mm / min | 22-420/8 22-393/8 |
Vertical/step | mm/min | 10-168/8 |
Longitudinal/cross rapid speed | mm / min | 1290/1205 |
Rapid Traverse vertical | mm/min | 513 |
POWER | ||
main motor | kw | 4 |
(X/Y/Z) feed motor | kw | 1.1 |
coolant motor | kw | 0.09 |
others | ||
package dimension | cm | 207x192x225 |
overall dimension | cm | 202.5x207x195 |
N/W,G/W | kg | 2200 |
