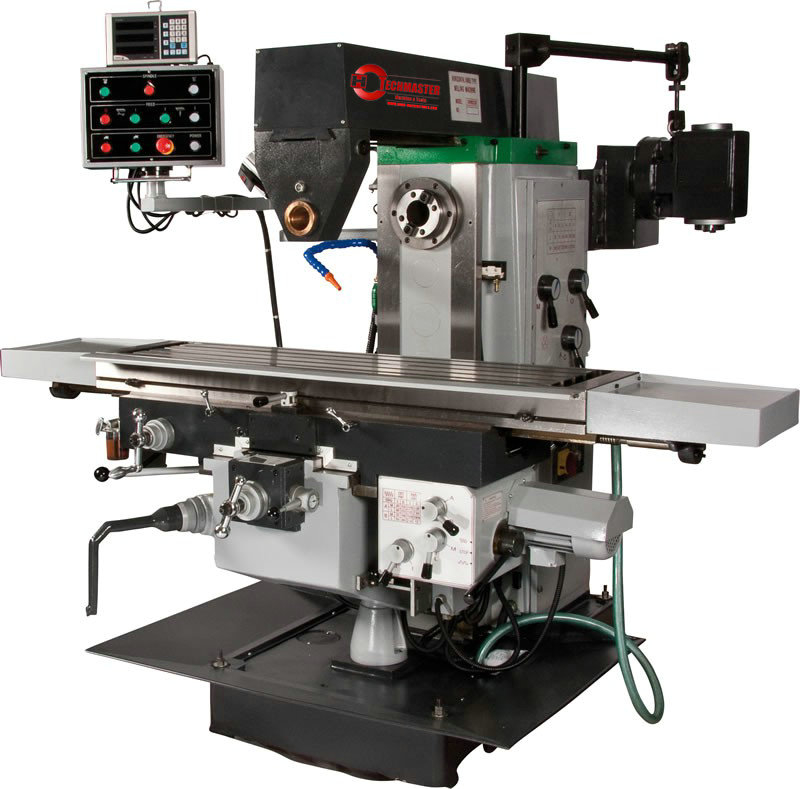

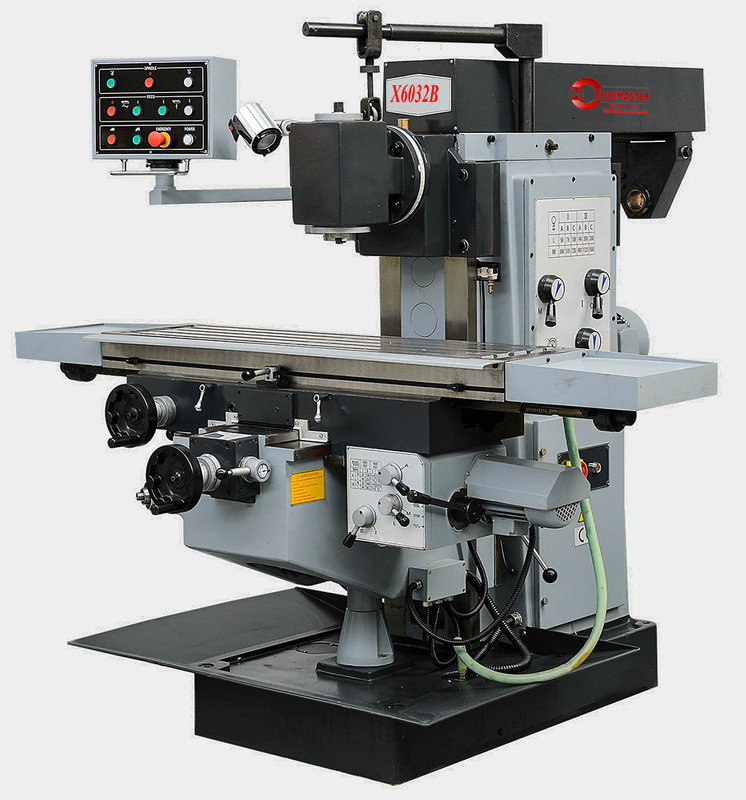

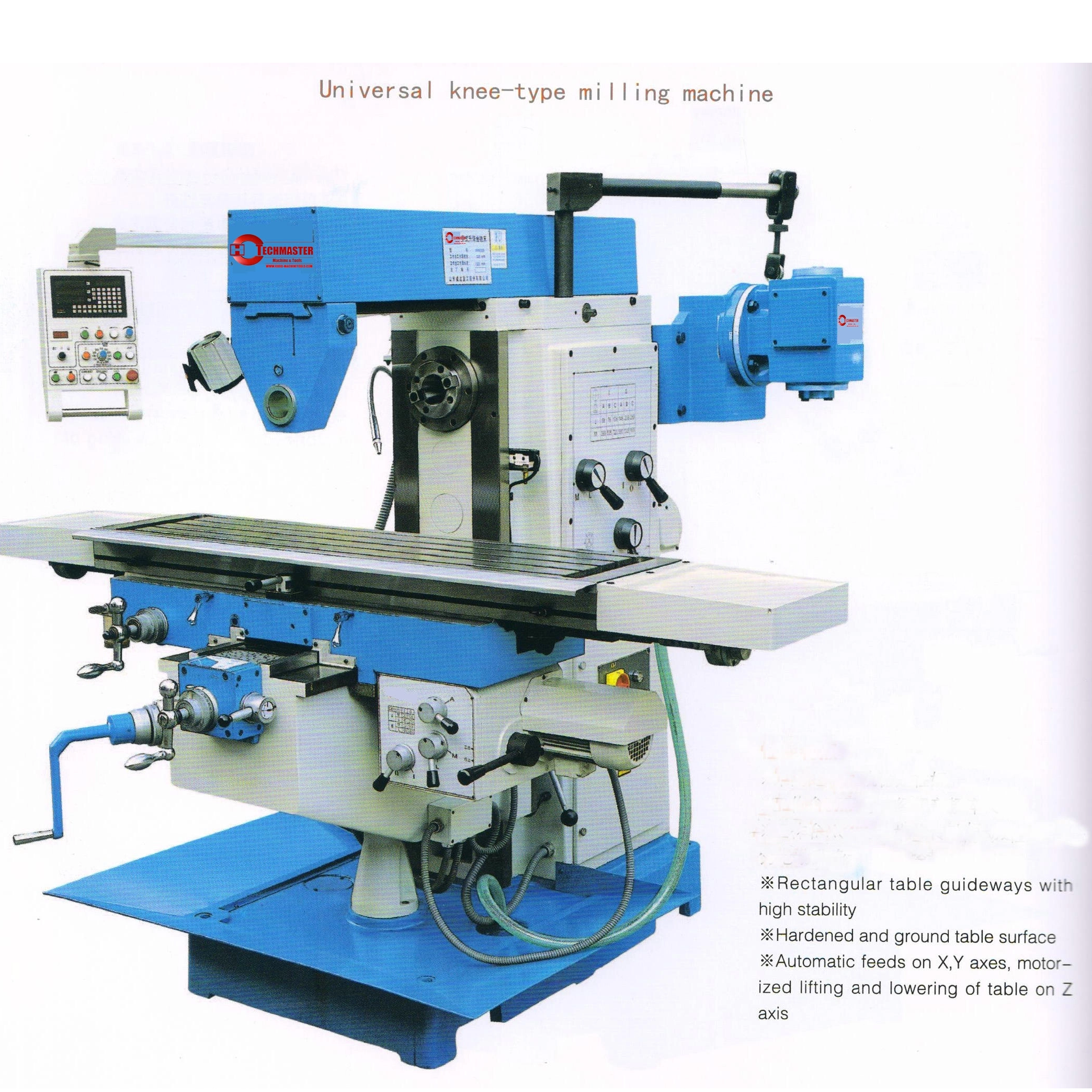

XW6032B
Description of XW6032B | Unit | Specifications |
Table size | mm | 1320X320 |
Table travel (manual X,Y) | mm | 1000X300 |
Horizontal Spindle taper | | ISO50 |
Vertical Spindle taper | | ISO40 |
Distance between spindle axis and boom | mm | 175 |
Distance from spindle axis to table surface | mm | 0-400 |
Spindle speeds range | R.P.M | 58-1800 |
Spindle Motor | KW | 4 |
N.W/G.W | Kg | 2300/2500 |
Overall dimensions | mm | 2020X1820X1880 |
Specification | Unit | XW6032A | XW6032B |
Table size | mm | 1320x320 (52″x13″) | 1320x320 (52″x13″) |
T slot ( width×num×spaces) | mm | 14 x 5 x 63 | 14 x 5 x 63 |
Max. load of Table | kg | 300 | 300 |
Longitudinal travel of Axis X (manual/auto) | mm | 800/750 (31″/ 30″) | 1000 (40″)(manual) |
Cross travel of Axis Y (manual/auto) | mm | 300 (12″) (manual) | 300 (12'') / 290 (11'') |
Vertical travel of Axis Z | mm | 400 (16″) | 400 (16″) |
Spindle taper | | 7:24 ISO50 | 7:24 ISO50 |
Quill travel | mm | no | no |
Spindle speed /step | rpm | 58-1800/12 | 58-1800/12 |
Distance from vertical spindle axis to column surface | mm | 320 (13″) | 320 (13″) |
Distance from vertical spindle nose to table surface | mm | 0-341 (0-13″) | 0-341 (0-13″) |
Distance from horizontal spindle axis to table surface | mm | 0-400 (0-16″) | 0-400 (0-16″) |
Distance from horizontal spindle axis to arm bottom | mm | 175 (7″) | 175 (7″) |
Arm travel | mm | 500 (20″) | 500 (20″) |
Feed speed of Axis X/Y (Longitudinal/cross) | mm/min | 20-360/8 | 20-360/8 |
Feed speed and step of Axis Z (Vertical) | mm/min | 400/1 | 400/1 |
Rapid Traverse of AxisX/Y (Longitudinal/cross) | mm/min | 1200 | 1200 |
Rapid Traverse of Axis Z (Vertical) | mm/min | 400/1 | 400/1 |
Main motor power | kW | 4 | 4 |
(X/Y) Feed motor power | kW | 0.55 | 0.55 |
(Z) Elevating motor power | kW | 0.75 | 0.75 |
Coolant motor power | kW | 0.09 | 0.09 |
Overall dimension | mm | 2070x1900x1850 (81″x75″x73″) | 2070x2020x1850 (81″x80″x73″) |
N/W | kg | 2100 | 2200 |
Spindle taper | V - ISO 40, H - ISO 50 |
---|---|
Speed range horizontal spindle | 58 - 1800 rpm |
Motor power vertical | 4,0 kW |
Longitudinal table travel | X - 800, Y - 300, Z - 400 mm |
Head movement | 45 ° L/R |
Distance spindle column | 0 - 400 mm |
Rapid travel | X - 1100, Y - 1100, Z - 600 mm/min |
Feed range | X,Y - 20/360, Z - 600 mm/r |
T-slots number/dimensions | 5 x 14 x 63 mm |
Table size | 1320 x 320 lxw |
Dimensions machine w x h x d | 1900 x 1720 x 1750 mm |
Net weight | 2100 kg |
Voltage | 400 V |
