DESCRIPTION

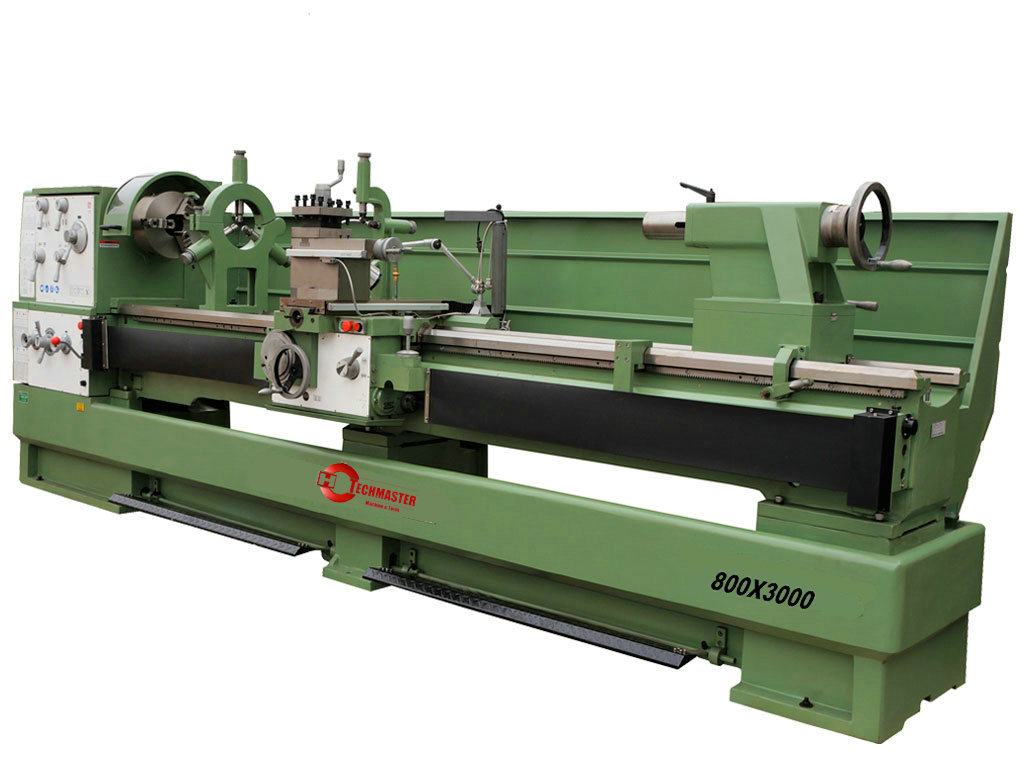

Super professional lathe, very sturdy and extremely precise, it is a lathe dedicated to mechanical workshops that perform extremely precise and large works. It is equipped with an automatic norton box, a white water cooling pump and a lamp for direct lighting. Having the electronical advancement operated by a Joistick in all directions as well as threading allows countless processes. It is supplied in a standard configuration with two bezels, a 3-jaw external chuck and a set of service keys.
Technical data | |||
| CAR DIMENSIONS | |||
| Dimensions with basement | 3210 mm (length) x 1230 mm (width) x 1670 mm (height) | ||
| Size of the package (lathe in cash) | 4400 mm (length) x 1350 mm (width) x 1740 mm (height) | ||
| Net weight of the machine | 3000.00 kg | ||
| Gross weight of the package (lathe in cash) | 3400 kg | ||
| LATHE SPECIFICATIONS | |||
| Maximum turning diameter on guides | 800 mm | Diameter of passing bar | 105 mm |
| Maximum turning diameter on the transverse slide | 580 mm | ||
| Maximum turning diameter by disassembling the guide | 1035 mm | ||
| Length of removable rail | 200 mm | ||
| Height of the centers | 400 mm | ||
| Spindle diameter | 320 mm | ||
| Lunette passage | 200 mm | ||
| Distance between centers (useful) | 3000 mm | ||
| Maximum tool section | 30x30 mm | ||
| Spindle speed number | 16 mm | ||
| spindle speed | 25-35-50-70-85-110-155-180-215-250-350-480-540-750-1100-1600 | ||
| Width of the guides | 400 mm | ||
| Cross travel | 420 mm | ||
| Travel of the second longitudinal | 240 mm | ||
| Mandrel attack | D1-8 | ||
| Spindle Hole | 105 mm | ||
| tailstock | MT5 | ||
| Duct diameter | 90 mm | ||
| Dinghy race | 235 mm | ||
| THREADS | |||
| Inch Threading | 7 / 16-80 T.P.I (54 kinds) | ||
| Metric threading | 0.45-120 mm (54 types) | ||
| DP threading | 7 / 8-160 D (42 types) | ||
| Modular threading | 0.25-60 MP (46 types) | ||
| ENGINE | |||
| Power | 7.5 kW (10 HP) | ||
| Type | Three-phase | ||
