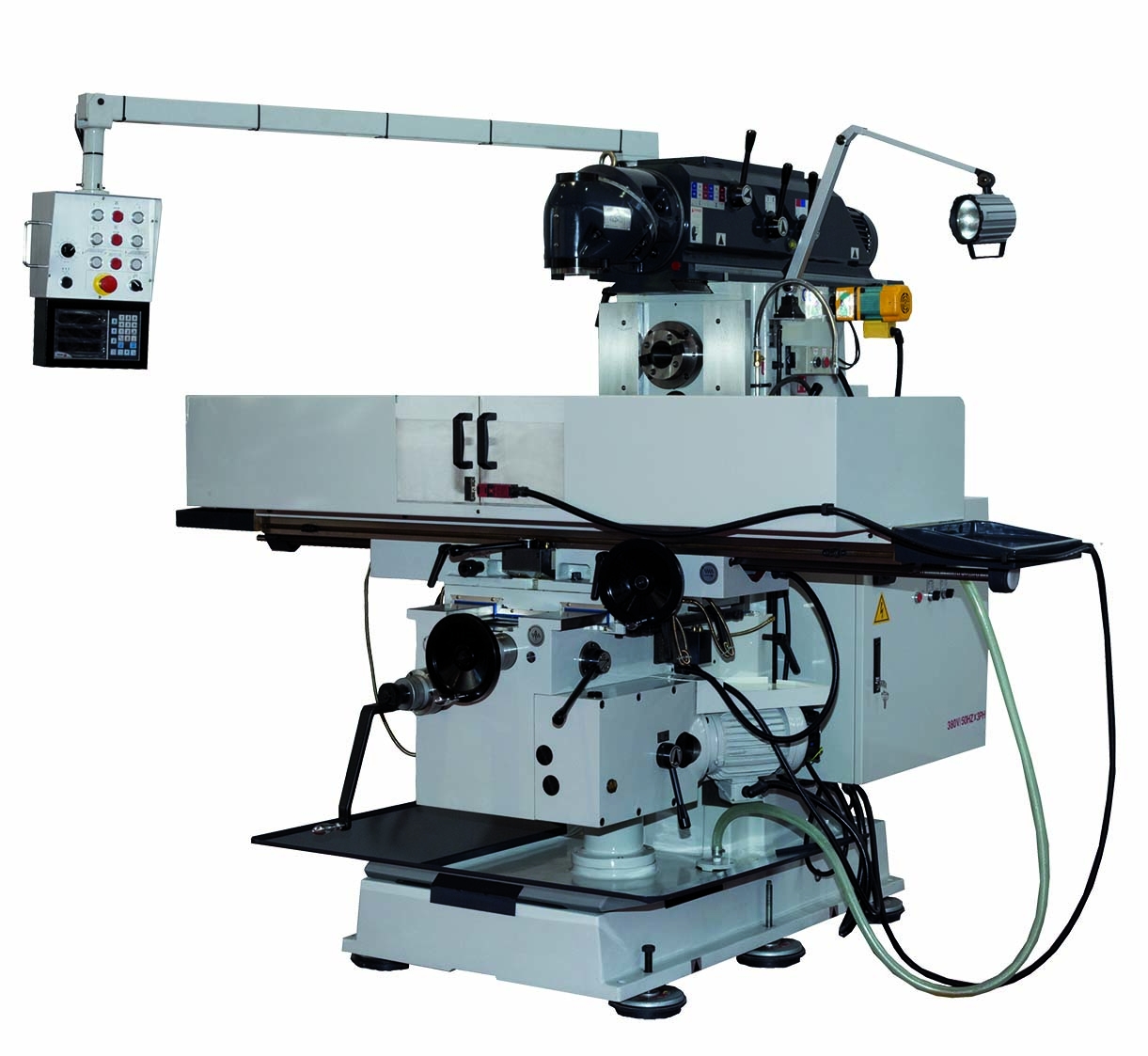

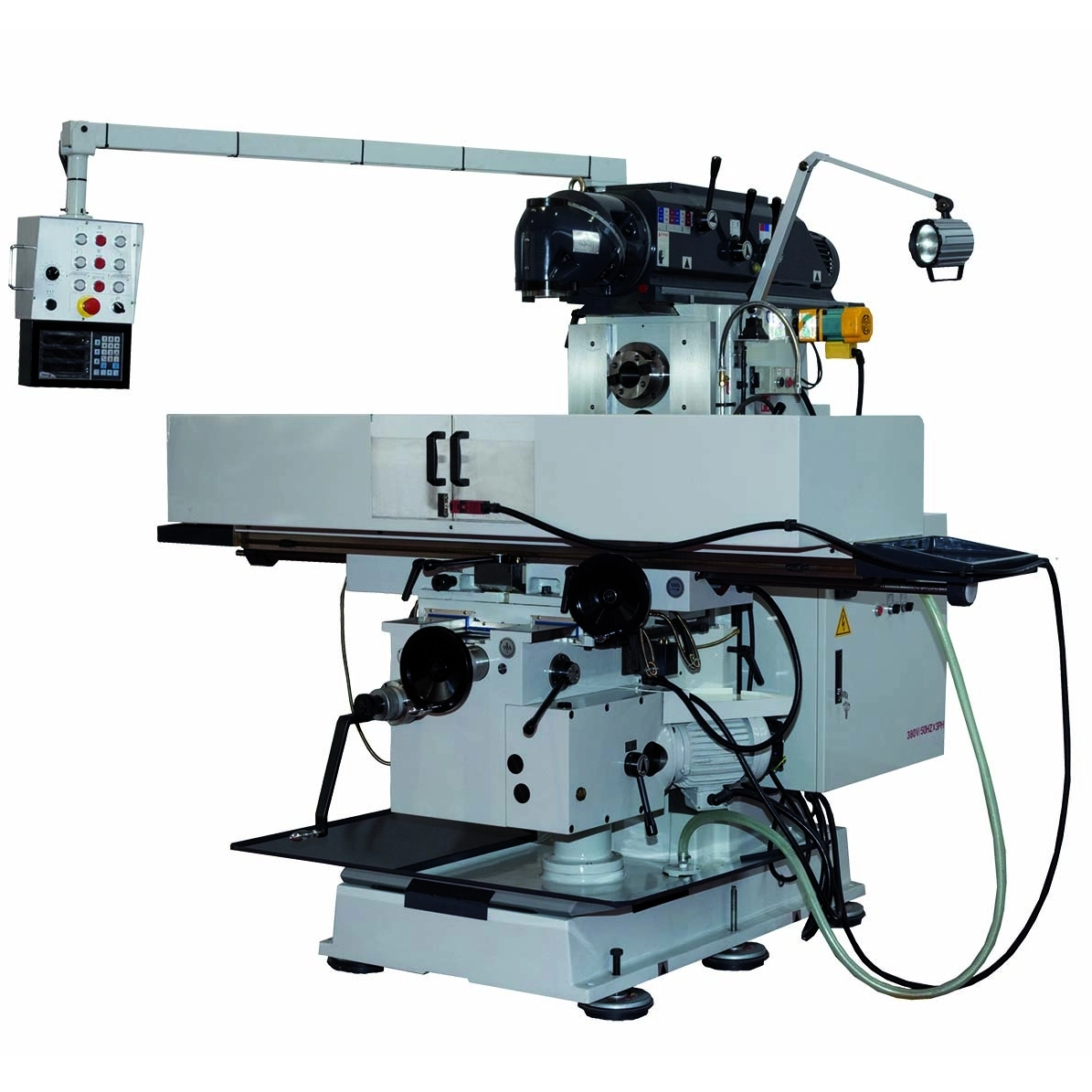

UNIVERSAL MILLING MACHINE FU2000
Taper of ram headstock | ISO50 |
Max. weight over table (Kg) | 700 |
Ram power (Kw) | 5,5 |
Table feed | variador |
Dimensions (mm) (length - width - high) | 2425x2200x2000 |
Ram headstock speed range (r.p.m) | 35-1600 |
Boring taper | ISO50 |
Worktable surface (mm) | 1850x350 |
Ram travel (mm) | 675 |
Cross travel (mm) | 400 |
Number of ram headstock speeds | 12 |
Vertical feed (mm/min) | 0-1500 |
Distance between the front spindle and the ram slide(mm) | 160 |
Table rotation | +/-45º |
Longitudinal feed (mm/min) | 0-1500 |
Net weight (Kg) | 3500 |
Longitudinal and cross rapid movement (mm/min) | 1500 |
T-slot (mm) | 5x16 |
Power ram headstock (Kw) | 4,4 |
Ram travel (mm) | 460 |
Number of boring speeds | 12 |
Rapid vertical movement (mm/min) | 1500 |
Distance headstock/ table (mm) | 130-590 |
Range of speeds (r.p.m) | 40-1800 |
Ram movement | MANUAL |
Longitudinal travel (mm) | 1500 |
Cross feed (mm/min) | 0-1500 |
Traveling (XYZ) | 1500 x 400 x 460 |
