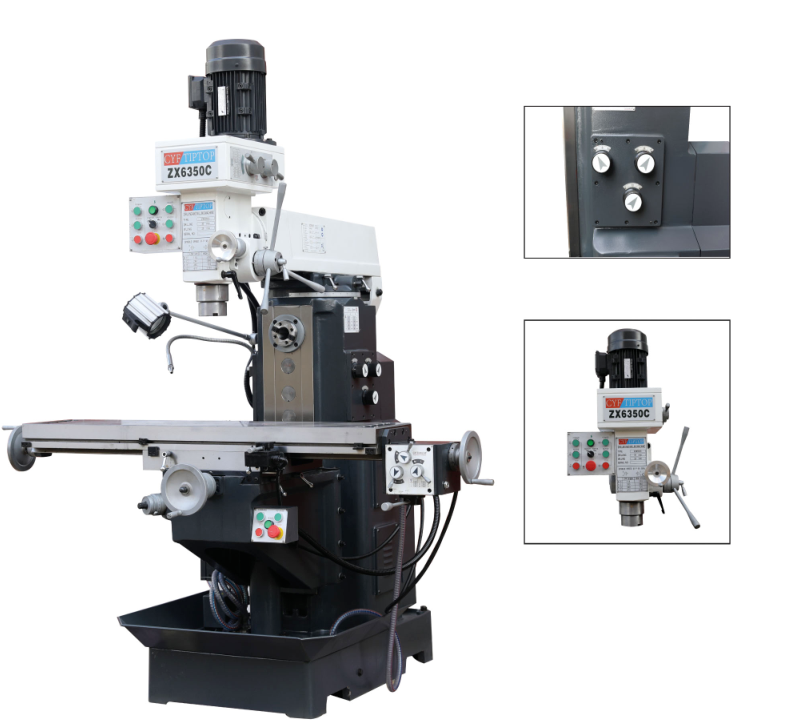

UNIVERSAL MILLING MACHINE XZ6350C
Quantity: -
ZX6350Z
Feature
recycling coolant system
Longitudinal power feed
high-precision spindle
two-speed motor
work light

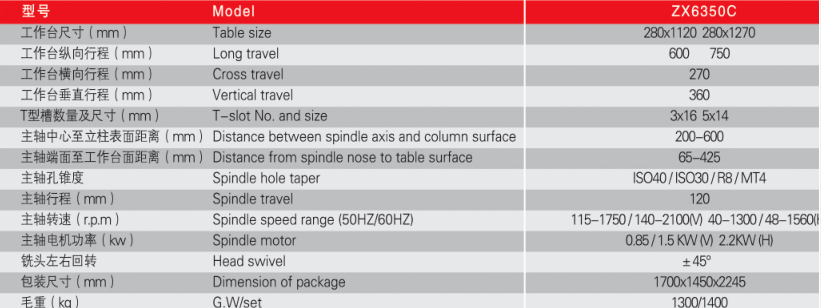

Technical Parameter
Model
X6350Z
Table size
280x1120 280x1270
Long travel
600 750
Cross travel
270
Vertical travel
360
T-slot No. and size
3x16 5x14
Distance between spindle axis and column surface
230-630
Distance from spindle nose to table surface
120-480
Spindle hole taper
ISO40 / ISO30 / R8 / MT4
Spindle travel
120
Spindle speed range (50HZ/60HZ)
90-2000 / 108-2400(V)
40-1300 / 48-1560(H)
Spindle motor
2.2KW (V)
2.2KW
Head swivel
±45°
Dimension of package
1700x1360x2240
G.W/set
1350/1450
Standard accessories:
1、Draw bra 2、Adapter 3、Taper shank for drilling chuck 4、Drilling chuck 5、T slot bolt 6、Washer 7、Nut 8、Tilted wedge 9、Spanner 10、Oil gun 11、Instruction Manual 12、Certificate of inspection 13、Pacjing list
