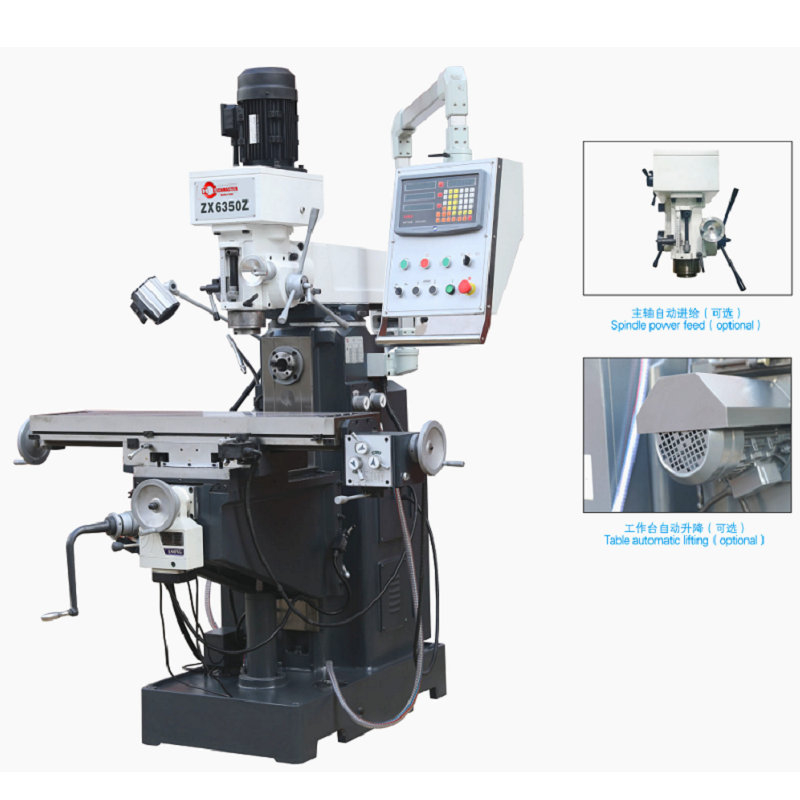

ZX6350Z
Feature
recycling coolant system
Longitudinal power feed
high-precision spindle
two-speed motor
work light
Technical Parameter
| Model | X6350Z |
| Table size | 280x1120 280x1270 |
| Long travel | 600 750 |
| Cross travel | 270 |
| Vertical travel | 360 |
| T-slot No. and size | 3x16 5x14 |
| Distance between spindle axis and column surface | 230-630 |
| Distance from spindle nose to table surface | 120-480 |
| Spindle hole taper | ISO40 / ISO30 / R8 / MT4 |
| Spindle travel | 120 |
| Spindle speed range (50HZ/60HZ) | 90-2000 / 108-2400(V) 40-1300 / 48-1560(H) |
| Spindle motor | 2.2KW (V) 2.2KW |
| Head swivel | ±45° |
| Dimension of package | 1700x1360x2240 |
| G.W/set | 1350/1450 |
| Standard accessories: | |
| 1、Draw bra | 2、Adapter |
| 3、Taper shank for drilling chuck | 4、Drilling chuck |
| 5、T slot bolt | 6、Washer |
| 7、Nut | 8、Tilted wedge |
| 9、Spanner | 10、Oil gun |
| 11、Instruction Manual | 12、Certificate of inspection |
| 13、Pacjing list | |
