X6332Z

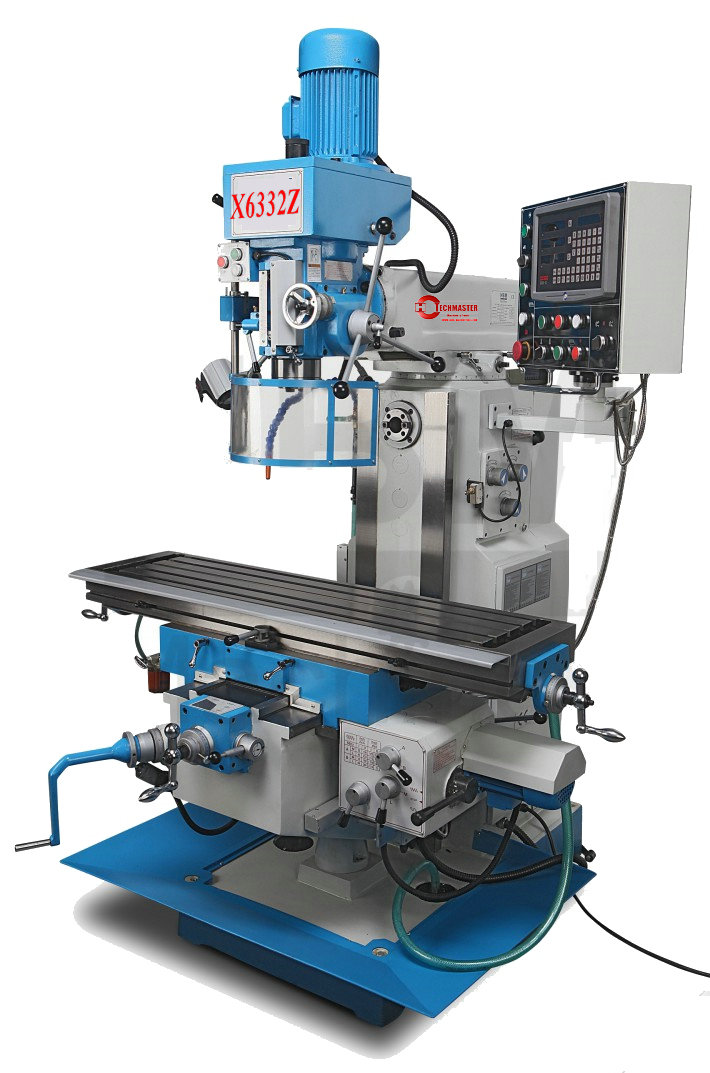

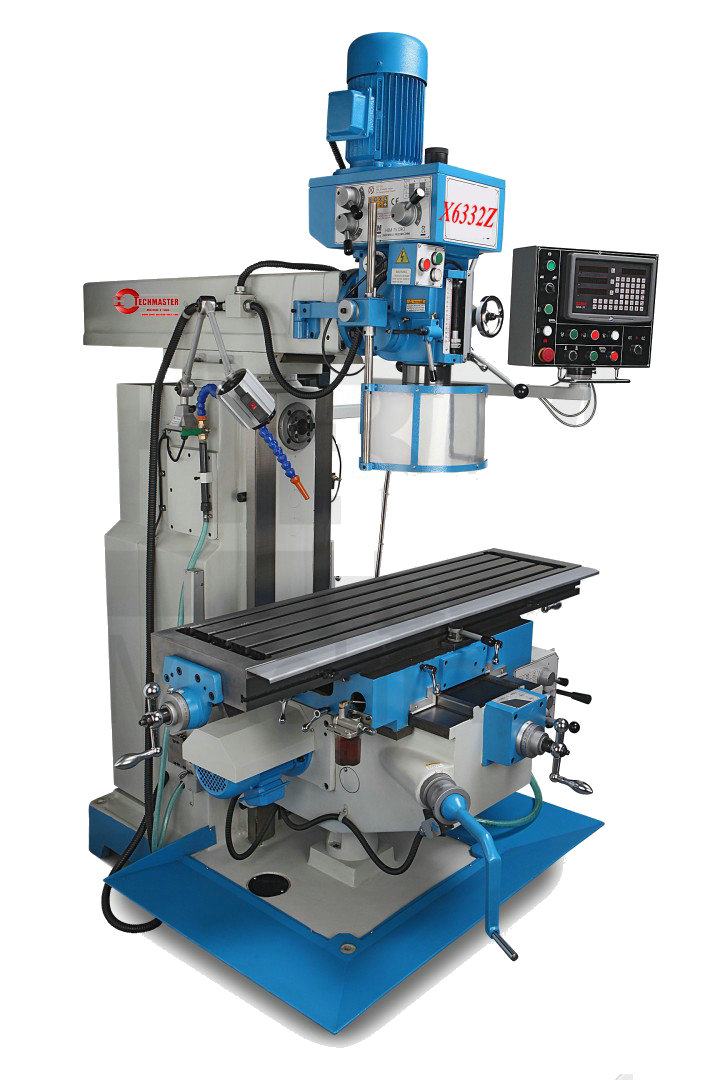

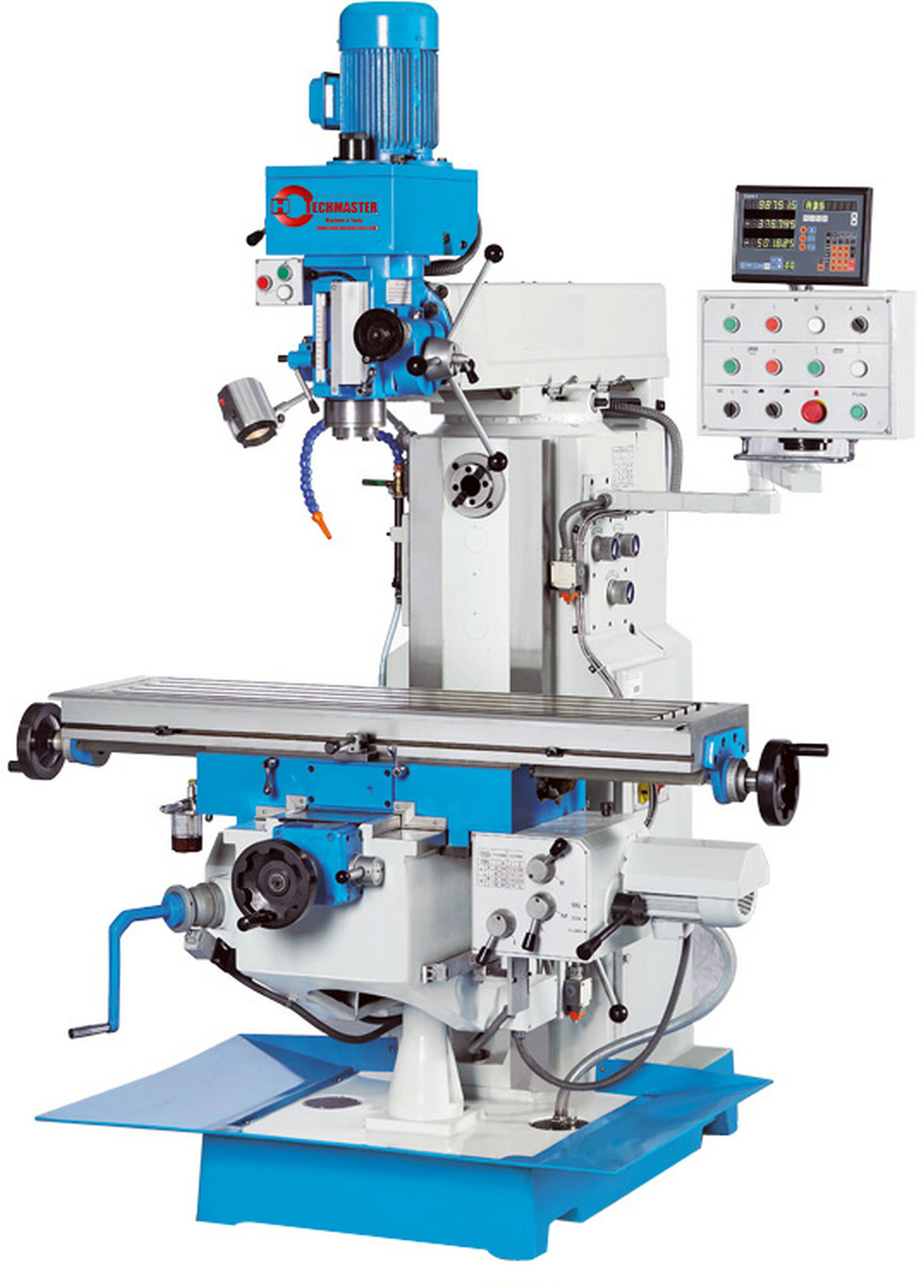

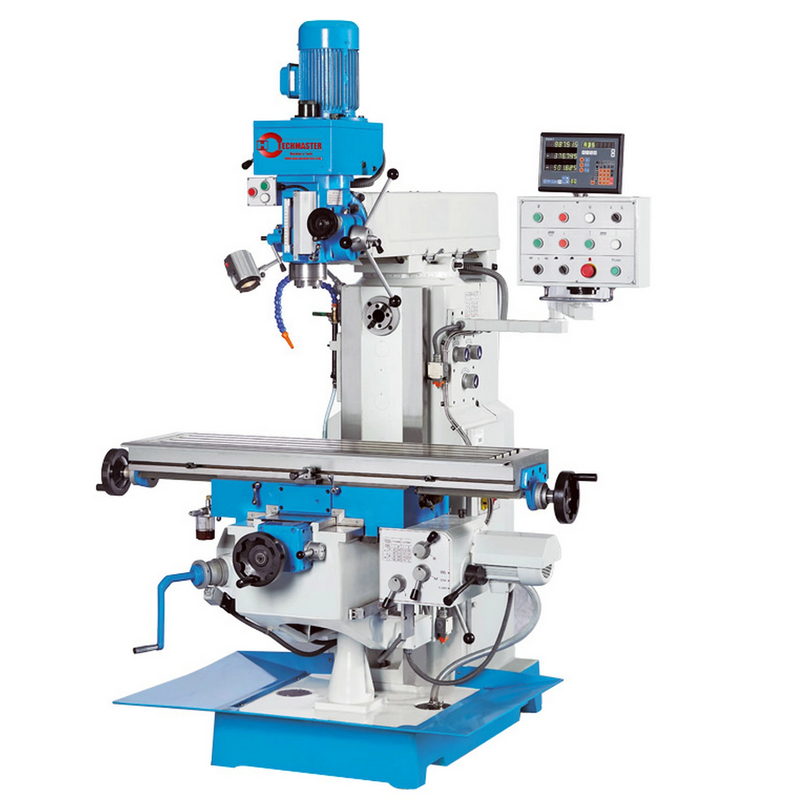

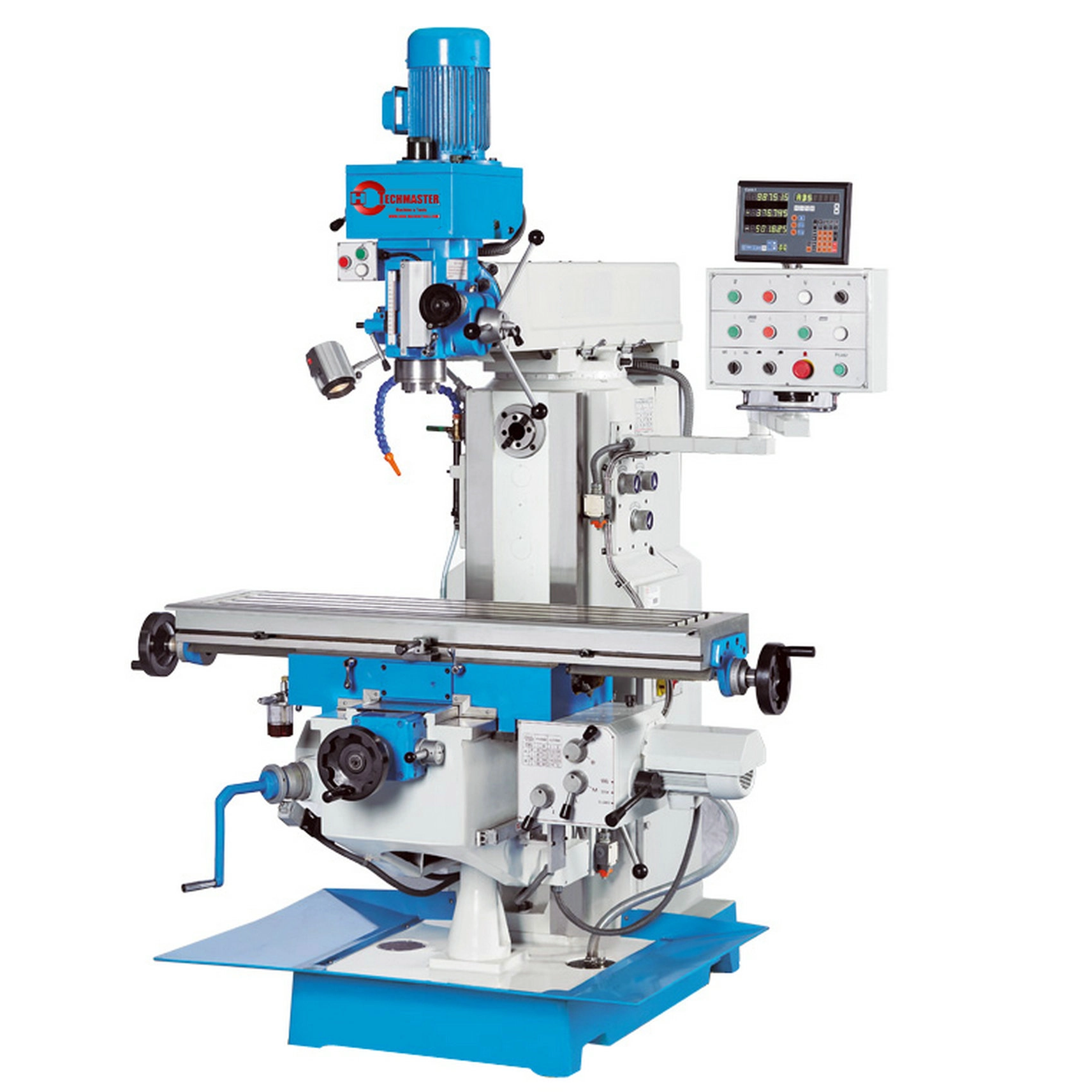

X6332Z(VHF 3 )- Universal Milling Machine SPINDLE AUTO FEEDING | |
working area | |
travel X-axis | 750 mm |
travel Y-axis | 280 mm |
travel Z-axis | 430 mm |
table set up area | 1320x320 mm |
table load capacity (max.) | 300 kg |
number of T-slots | 5 Pieces |
T-slots, width | 14 mm |
T-slots, spacing | 50 mm |
feed | |
rapid feed X-axis | 1024 mm/min |
rapid feed Y-axis | 1024 mm/min |
rapid feed Z-axis | 670 mm/min |
feed speed X-axis | (8) 20 - 360 mm/min |
feed speed Y-axis | (8) 20 - 360 mm/min |
quill feeds | (3) 0,08; 0,15; 0,25 mm/R |
vertical milling head | |
spindle speed (vertical) | (8) 90 - 2000 rpm |
spindle mount (vertical) | SK 40 |
quill stroke | 120 mm |
throat | 200 - 540 mm |
spindle nose-to-table surface distance | 140 - 540 mm |
head swivel range | ± 45° |
horizontal milling head | |
spindle speed (horizontal) | (12) 38 - 1310 rpm |
spindle mount (horizontal) | SK 40 |
horizontal spindle-to-table surface distance | 50 - 450 mm |
drive capacity | |
motor rating horizontal spindle | 2,2 kW |
motor rating vertical spindle | 2,2 kW |
motor rating feed | 0,55 kW |
motor rating coolant pump | 0,09 kW |
measures and weights | |
overall dimensions | 1710x1720x2330 mm |
weight | 1800 kg |
X6332Z(VHF 3 )- Universal Milling Machine SPINDLE AUTO FEEDING | |
working area | |
travel X-axis | 750 mm |
travel Y-axis | 280 mm |
travel Z-axis | 430 mm |
table set up area | 1320x320 mm |
table load capacity (max.) | 300 kg |
number of T-slots | 5 Pieces |
T-slots, width | 14 mm |
T-slots, spacing | 50 mm |
feed | |
rapid feed X-axis | 1024 mm/min |
rapid feed Y-axis | 1024 mm/min |
rapid feed Z-axis | 670 mm/min |
feed speed X-axis | (8) 20 - 360 mm/min |
feed speed Y-axis | (8) 20 - 360 mm/min |
quill feeds | (3) 0,08; 0,15; 0,25 mm/R |
vertical milling head | |
spindle speed (vertical) | (8) 90 - 2000 rpm |
spindle mount (vertical) | SK 40 |
quill stroke | 120 mm |
throat | 200 - 540 mm |
spindle nose-to-table surface distance | 140 - 540 mm |
head swivel range | ± 45° |
horizontal milling head | |
spindle speed (horizontal) | (12) 38 - 1310 rpm |
spindle mount (horizontal) | SK 40 |
horizontal spindle-to-table surface distance | 50 - 450 mm |
drive capacity | |
motor rating horizontal spindle | 2,2 kW |
motor rating vertical spindle | 2,2 kW |
motor rating feed | 0,55 kW |
motor rating coolant pump | 0,09 kW |
measures and weights | |
overall dimensions | 1710x1720x2330 mm |
weight | 1800 kg |
