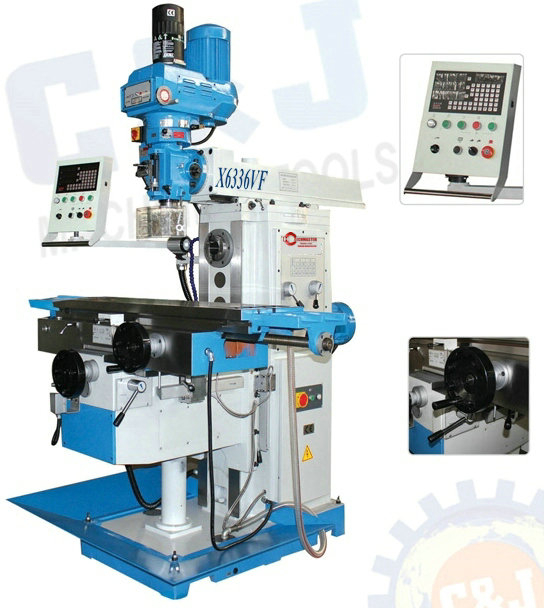

specifications | X6336VF | X6332VF | XQ6332VF | X6330VF | |||
Table size (mm) | 1325/1600×360mm | 1325/1600×320 | 1270/1370×320 | 1270/1370×300 | |||
Table travel | Longitudinal (mm) | 750/1300 | 720/820 | ||||
Cross (mm) | 320 | 300 | |||||
Vertical (mm) | 450 | 400 | |||||
Rapid speed of table (X Y Z) (mm/min) | 1200/800/600mm/min | 1000/1000/750 | |||||
Spindle taper (vertical) | 7:24 ISO40 | 7:24 ISO40 | |||||
Spindle taper (horizontal) | 7:24 ISO50 | 7:24 ISO40 | |||||
Stroke of spindle quill (mm) | 127 | ||||||
Table fed(X,Y,Z) (mm/min) | Variable 30-750/20-500/15-375 | ||||||
Distance between horizontal nose and table surface (mm) | 20-470 | 75-475 | |||||
Distance between spindle axis and table surface (mm) | 200-650 | 275-650 | |||||
Spindle speed range (steps) rpm (rpm) | 65-4660/8 (V) 60-1800/16 (H) | 65-4660/16 (V) 35-1500/12 (H) | |||||
T-slots(No./width/pitch) (mm) | 3/18/80 | 3/14/70 | 3/14/70mm | ||||
Arm travel (mm) | 550 | 550 | 450 | | |||
Main motor power (Kw) | 5.5 (H) 3.75 (V) | 3.75(H) 3 (V) | |||||
Overall size (mm) | 1800×2100×2500/1520×2100×2500 | 1720×1680×23501820×1680×2350 | |||||
N.W (Kg) | 2700/2850 | 2650/2800 | 1680/1730 | 1650/170 |
Drill chuck | drawbar | Work lamp | Milling vice |
Coolant system | Chip lray | Toolbox&tools | Operation manual |
| | | |
DRO | vise | Milling collet chuck | Rotary table |
Dividing head | 58 pcs clamping kits | Keyless drill chuck | |
