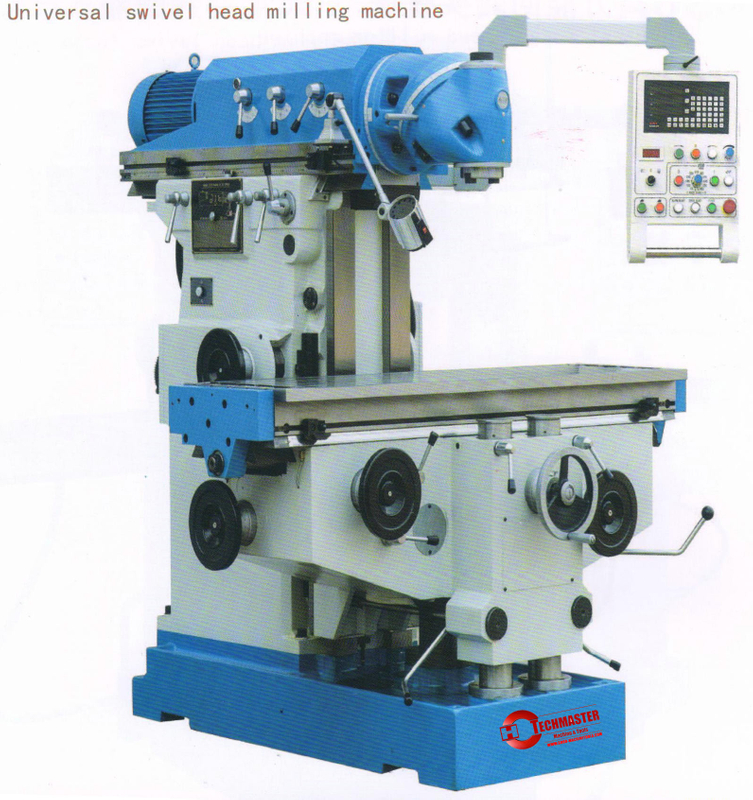

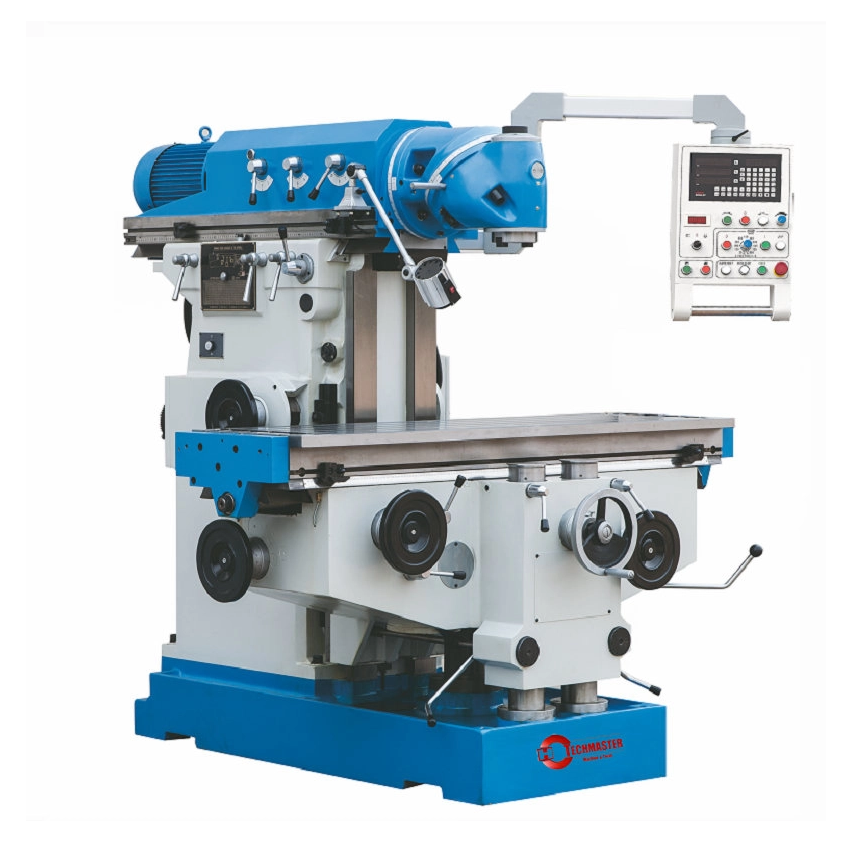

X5746 /X5746-1(BIGGER WORKTABLE)
Characteristic:
1,spindle AC frequency motor driven with the speed indicating on the panel screen.
2,3-feeding axis adopt GSK motor and drive controlled by Siemens plc.
3,operation panel install Siemens touch screen plc, which can realize automatic machining.
4,3-axis feeding can controlled not only by electrical hand wheel but also crossing button on the panel.
5,X,Y,Z ball screw can assure better accuracy positioning.
6,Automatic lubrication, rectangular guide way with plastic coat can load 1500kgs.
Item | specification | X5746 | |
1 | Worktable size | 1635×460(mm2) | |
2 | Table travel(X/Y) | 1300/470 mm | |
3 | T-slot of worktable(number/width) | 5/18 mm | |
4 | Distance between the adjacent T-slots | 80 mm | |
5 | Spindle taper | ISO40 | |
6 | Distance between spindle nose to worktable surface | 40mm~510 mm | |
7 | Distance between spindle axis to column surface | 68~718 mm | |
8 | Transverse travel of ram | 630 mm | |
9 | Spindle speed range | 30-2050 r.p.m 27 steps | |
10 | Feeding step of worktable and ram | Stepless | |
11 | Feed rate of worktable | longitudinal | 10-1000 mm/min |
transverse | 6-6400 mm/min | ||
12 | feed rate of ram | 10-1000 mm/min | |
13 |
Rapid feed range of worktable | longitudinal | 2200 mm/min |
transverse | 1460 mm/min | ||
14 | Rapid speed range of ram | 2200 mm/min | |
15 | Main spindle motor | 7.5KW | |
16 | Power of feeding motor | 4.4kw 28.4N/m | |
17 | Net weight | 3500Kg |
Item | specification | X5746-1 | |
1 | Worktable size | 2000×460(mm2) | |
2 | Table travel(X/Y) | 1500/470 mm | |
3 | T-slot of worktable(number/width) | 5/18 mm | |
4 | Distance between the adjacent T-slots | 80 mm | |
5 | Spindle taper | ISO40 | |
6 | Distance between spindle nose to worktable surface | 40mm~510 mm | |
7 | Distance between spindle axis to column surface | 68~718 mm | |
8 | Transverse travel of ram | 630 mm | |
9 | Spindle speed range | 30-2050 r.p.m 27 steps | |
10 | Feeding step of worktable and ram | Stepless | |
11 | Feed rate of worktable | longitudinal | 10-1000 mm/min |
transverse | 6-6400 mm/min | ||
12 | feed rate of ram | 10-1000 mm/min | |
13 |
Rapid feed range of worktable | longitudinal | 2200 mm/min |
transverse | 1460 mm/min | ||
14 | Rapid speed range of ram | 2200 mm/min | |
15 | Main spindle motor | 7.5KW | |
16 | Power of feeding motor | 4.4kw 28.4N/m | |
17 | Net weight | 3700Kg |
