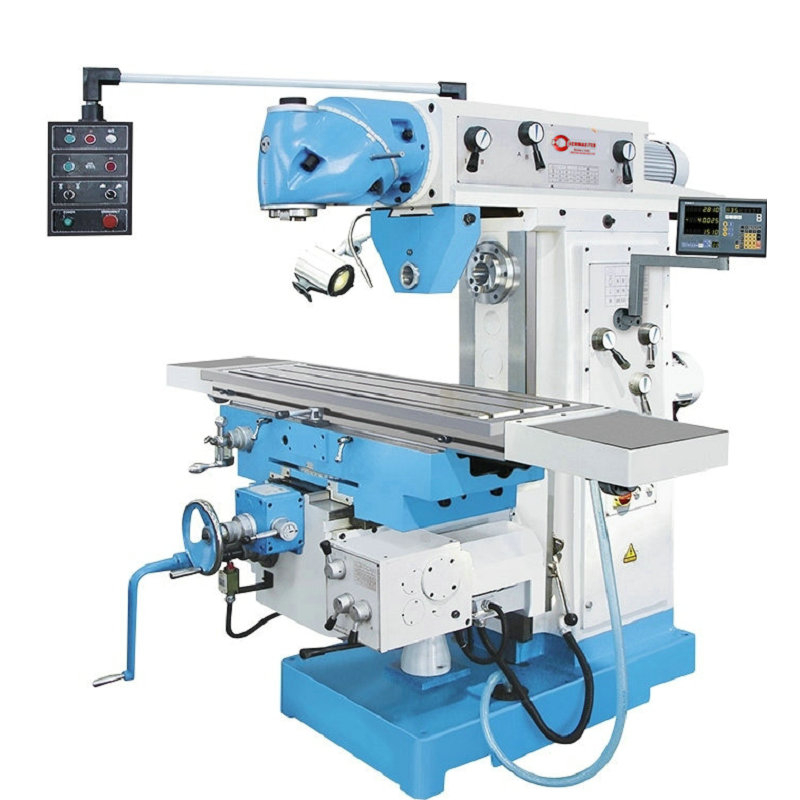

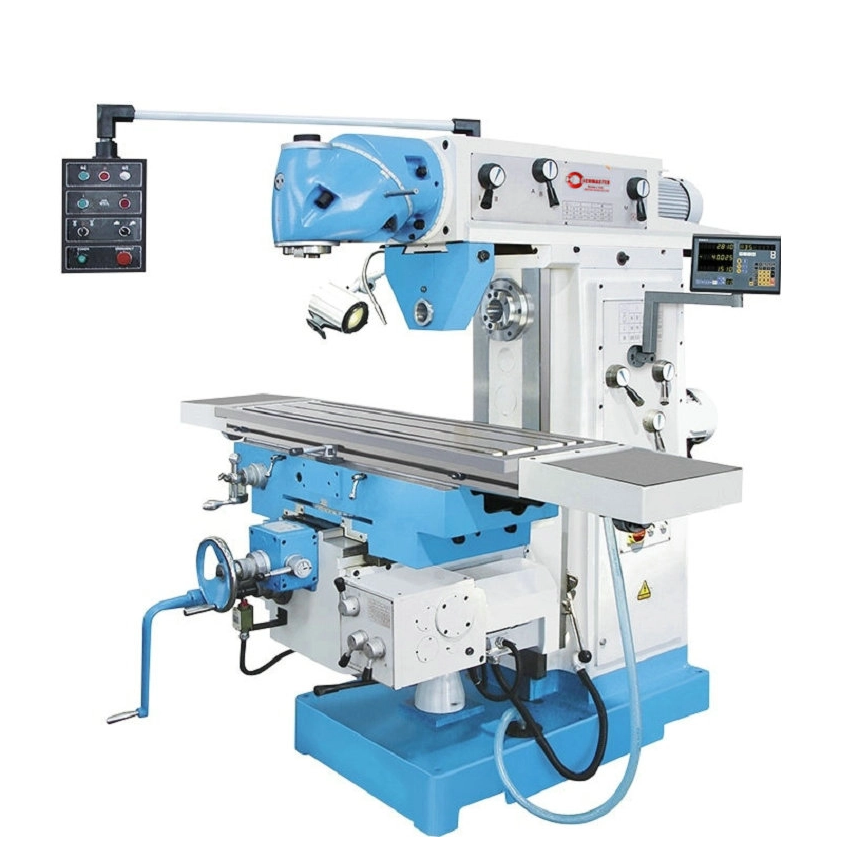

UNIVERSAL SWIVEL HEAD MILLING MACHINE X6436

Availability:
Quantity:
  • X6436A / X6436A-1( BIG WORKTABLE )


SPECIFICATIONS

X6436

Table size

1320×360 (1600 x 360 optional)

Table travel

1000×300

Number/Width/Distance of T-slot

3-14-95

Spindle taper

ISO 50

Distance between spindle axis and table surface

0-400

Distance between spindle axis and ram surface

175

Spindle speed range(steps)

58-1800         60-1750

Table power feed speed range in longitudinal, transverse and vertical directions

22 – 420(X)22 – 393(Y)10 – 168 (Z)

Swivel angle of table

±35°

Ram travel

500

Spindle motor power

4

Overall dimension  (L×W×H)

2070×2025×2020

Machine weight

2480
