X6436A / X6436A-1( BIG WORKTABLE )

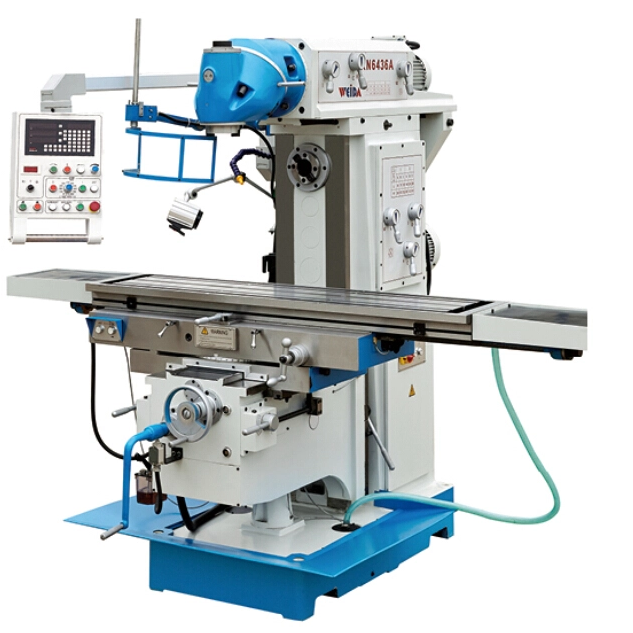

X6436A Universal Swivel Head Milling Machine for sale
Model | Units | X6436A |
Table size | mm | 1650x360 |
Table stroke | mm | 1300 / 320 /420 |
T-type slot numbers / width /space | mm | 3 / 14 / 95 |
Spindle taper | mm | 7:24 ISO50 |
Distance from horizontal axis to table surface | mm | 0-420 |
Distance from spindle nose to table surface | mm | 170-590 |
Distance form table center to column surface | mm | 230-550 |
Table swivel degree | ° | ±35 |
Horizontal motor power | KW | 5.5H. 4V |
Feeding servo motor power | KW | 1.8,11.5N.M |
Overall dimensions | mm | 2550X2161X2102 |
Machine weight | Kg | 2850 |
